How to Use Green LED: Examples, Pinouts, and Specs

Introduction

A Green LED (Light-Emitting Diode) is a semiconductor device that emits green light when an electric current flows through it. It is widely used in electronic circuits as an indicator, status light, or part of a display system. Green LEDs are valued for their low power consumption, long lifespan, and high visibility.

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Solar-Powered Green LED Light

This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.

Open Project in Cirkit Designer

Battery-Powered LED Array with Rocker Switch Control

This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.

Open Project in Cirkit Designer

Battery-Powered IR Sensor with LED Indicator

This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.

Open Project in Cirkit Designer

Arduino UNO LED Blinker with Resistor

This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.

Open Project in Cirkit Designer

Common Applications

• Power and status indicators in electronic devices
• Signal lights in control panels
• Part of multi-color LED displays
• Decorative lighting and visual effects
• Educational and DIY electronics projects

Technical Specifications

Below are the typical specifications for a standard Green LED. Note that actual values may vary slightly depending on the manufacturer.

Pin Configuration

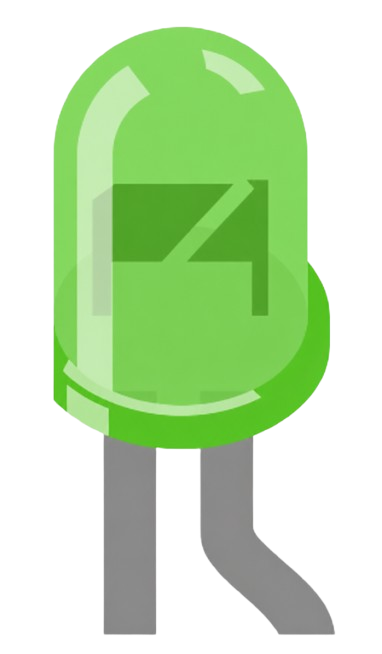

Green LEDs typically have two pins: the anode (positive) and the cathode (negative). The cathode is usually identified by a shorter leg or a flat edge on the LED casing.

Usage Instructions

How to Use a Green LED in a Circuit

1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. Calculate the resistor value using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

   • (V_{supply}) is the supply voltage
   • (V_f) is the forward voltage of the LED
   • (I_f) is the desired forward current (e.g., 20mA)

2. Connect the LED:

   • Connect the anode (longer leg) to the positive voltage through the resistor.
   • Connect the cathode (shorter leg) to ground.

3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit green light when current flows through it.

Example: Connecting a Green LED to an Arduino UNO

Below is an example of how to connect and control a Green LED using an Arduino UNO.

Circuit Setup

• Connect the anode of the Green LED to a 220Ω resistor.
• Connect the other end of the resistor to digital pin 13 on the Arduino.
• Connect the cathode of the LED to the Arduino's GND pin.

Arduino Code

// Green LED connected to digital pin 13
const int ledPin = 13;

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Important Considerations

• Polarity: LEDs are polarized components. Ensure the anode and cathode are connected correctly.
• Current Limiting: Always use a resistor to limit the current through the LED.
• Voltage Rating: Do not exceed the maximum forward voltage or reverse voltage.

Troubleshooting and FAQs

Common Issues

1. LED Does Not Light Up:

   • Check the polarity of the LED. Ensure the anode is connected to the positive voltage and the cathode to ground.
   • Verify the resistor value. A resistor with too high a value may prevent sufficient current flow.
   • Ensure the power supply is functioning and providing the correct voltage.

2. LED is Dim:

   • The resistor value may be too high, limiting the current excessively.
   • Check the supply voltage to ensure it meets the LED's requirements.

3. LED Burns Out:

   • The current through the LED may be too high. Verify the resistor value and ensure it limits the current to within the LED's specifications.
   • Ensure the supply voltage does not exceed the LED's maximum ratings.

FAQs

Q: Can I connect a Green LED directly to a 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: How do I identify the anode and cathode of a Green LED?
A: The anode is the longer leg, while the cathode is the shorter leg or the side with a flat edge on the casing.

Q: Can I use a Green LED with a 3.3V microcontroller?
A: Yes, but ensure you calculate the appropriate resistor value to limit the current to a safe level.

Q: Why is my LED flickering?
A: Flickering may occur if the power supply is unstable or if the LED is being driven by a PWM signal with a low frequency.
