How to Use LED Two Pin (Red) : Examples, Pinouts, and Specs

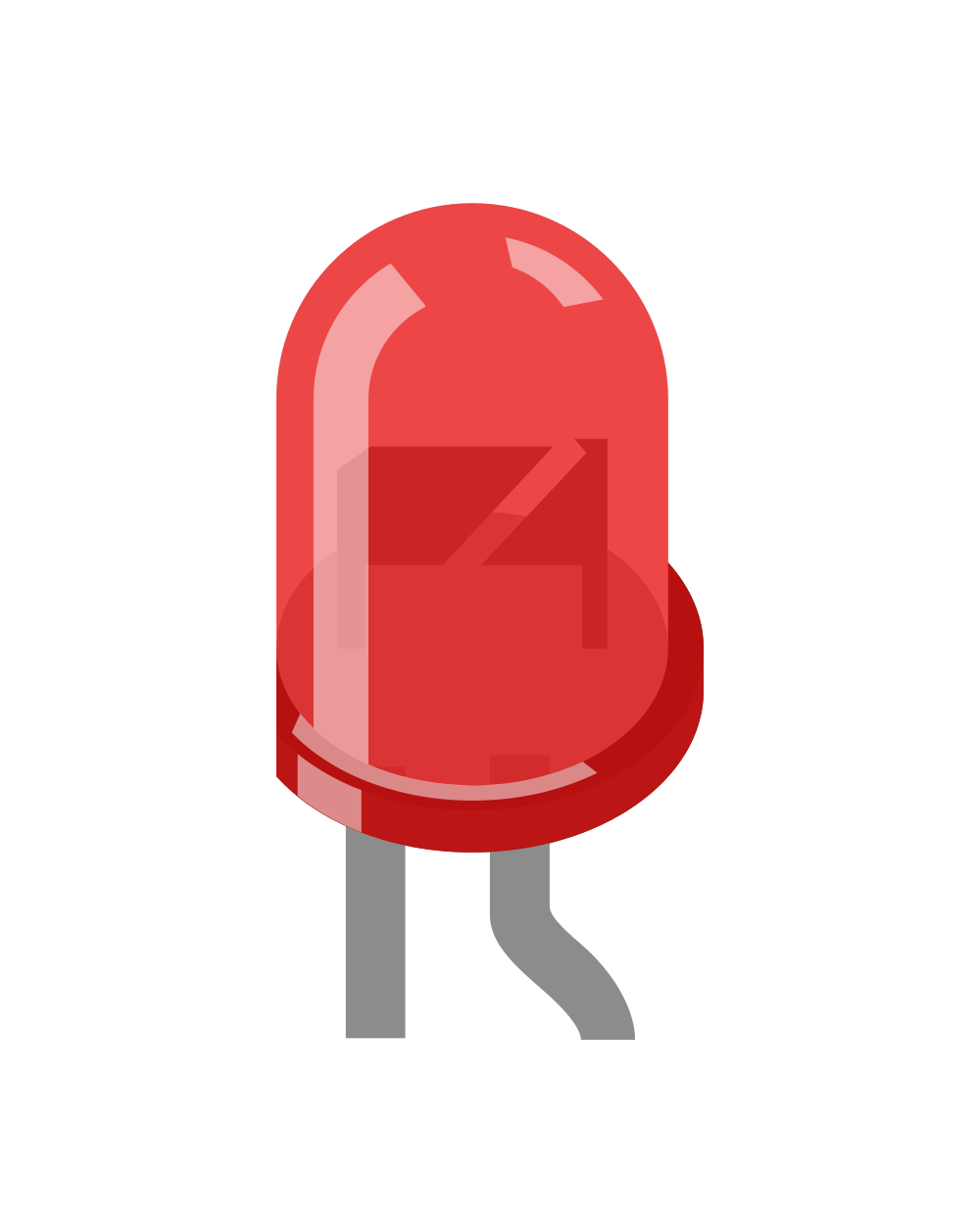

A light-emitting diode (LED) is a semiconductor device that emits light when an electric current flows through it. The LED Two Pin (Red) is a basic LED that emits red light and is widely used in electronics for visual indicators, status displays, and decorative lighting. It is compact, energy-efficient, and easy to use, making it a staple component in many electronic projects.

• Power and status indicators
• Digital displays
• Signal and warning lights
• DIY electronics and Arduino projects
• Decorative lighting and visual effects

Below are the key technical details for the LED Two Pin (Red):

The LED Two Pin (Red) has two pins, as described below:

Note: The flat edge on the LED casing corresponds to the cathode (-).

1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ]

   • (V_{supply}): Supply voltage
   • (V_f): Forward voltage of the LED (1.8V to 2.2V)
   • (I_f): Desired forward current (typically 20mA)

   For example, with a 5V supply: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (+) to the positive terminal of the power source through the resistor.
   • Connect the cathode (-) to the ground.

3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit red light when current flows through it.

• Always use a resistor to limit current and prevent the LED from burning out.
• Verify the polarity before connecting the LED to avoid reverse biasing.
• Avoid exceeding the maximum current rating (30mA) to ensure longevity.
• Use a breadboard for prototyping before soldering the LED into a permanent circuit.

The LED Two Pin (Red) can be easily interfaced with an Arduino UNO. Below is an example circuit and code to blink the LED:

• Connect the anode (+) of the LED to Arduino digital pin 13 through a 220Ω resistor.
• Connect the cathode (-) to the Arduino GND pin.

// LED Blink Example for Arduino UNO
// This code blinks an LED connected to pin 13 at 1-second intervals.

const int ledPin = 13; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.
   • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.

2. LED Burns Out:

   • Cause: No current-limiting resistor or excessive current.
   • Solution: Use an appropriate resistor to limit the current to 20mA.

3. Dim Light Output:

   • Cause: Insufficient current or high resistor value.
   • Solution: Verify the resistor value and ensure the supply voltage is adequate.

4. Flickering LED:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

Q: Can I connect the LED directly to a 5V power source?
A: No, you must use a current-limiting resistor to prevent the LED from drawing excessive current and burning out.

Q: How do I identify the anode and cathode?
A: The longer pin is the anode (+), and the shorter pin is the cathode (-). Additionally, the flat edge on the LED casing indicates the cathode.

Q: Can I use the LED with a 3.3V power source?
A: Yes, but you still need a resistor to limit the current. Calculate the resistor value based on the supply voltage and forward voltage.

Q: What happens if I reverse the polarity?
A: The LED will not light up, but it will not be damaged as long as the reverse voltage does not exceed its maximum rating.
