How to Use Wemos D1 R32: Examples, Pinouts, and Specs

Introduction

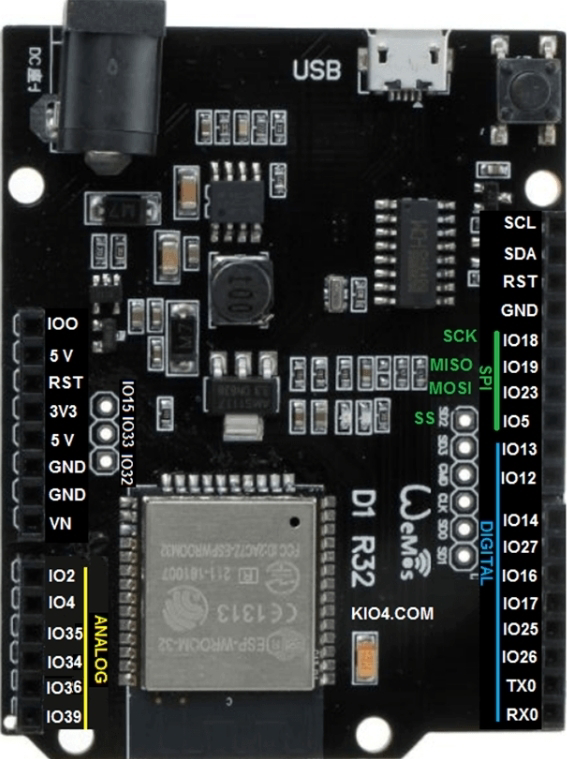

The Wemos D1 R32 is a versatile microcontroller board based on the powerful ESP32 chip. It combines robust processing capabilities with built-in Wi-Fi and Bluetooth, making it an excellent choice for Internet of Things (IoT) projects, home automation, and rapid prototyping. Its compatibility with the Arduino IDE and pin layout similar to the Arduino UNO make it beginner-friendly while offering advanced features for experienced developers.

Explore Projects Built with Wemos D1 R32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Wi-Fi Controlled RGB LED Strip with Battery Management System

This circuit features a Wemos D1 Mini microcontroller powered by a 18650 Li-ion battery through a TP4056 charging module, with power control managed by a rocker switch. The Wemos D1 Mini controls a WS2812 RGB LED strip, with the data line connected to the D4 pin and power lines controlled by the switch. Multiple pushbuttons are connected to the D0 pin through a resistor, likely for user input to control the LED strip or other functions in the microcontroller's code.

Open Project in Cirkit Designer

I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons

This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.

Open Project in Cirkit Designer

Battery-Powered Wi-Fi Temperature and Humidity Monitor with Wemos D1 Mini and DHT22

This circuit appears to be a sensor node with a DHT22 temperature and humidity sensor interfaced with a Wemos D1 Mini microcontroller. The Wemos D1 Mini is powered by a 18650 Li-ion battery, which is charged and protected by a TP4056 charging module. The sensor's data output is connected to the D4 pin of the Wemos D1 Mini for digital signal processing, and voltage dividers made of resistors are likely used for level shifting or pull-up/pull-down purposes.

Open Project in Cirkit Designer

Wi-Fi Controlled Weather Station with Wemos D1 Mini and OLED Display

This circuit is a weather monitoring system that uses a Wemos D1 Mini microcontroller to read temperature and humidity data from four DHT22 sensors and display the information on an Adafruit OLED screen. The data is also transmitted via WiFi to an MQTT server for remote monitoring. The system is powered by a 2000mAh battery, which is managed by a TP4056 charging module and a Mtiny Power module.

Open Project in Cirkit Designer

Common Applications and Use Cases

• IoT devices and smart home systems
• Wireless sensor networks
• Robotics and automation
• Data logging and remote monitoring
• Prototyping Bluetooth and Wi-Fi-enabled devices

Technical Specifications

The Wemos D1 R32 offers a range of features that make it suitable for a variety of applications. Below are its key technical specifications:

Pin Configuration and Descriptions

The Wemos D1 R32 pinout is similar to the Arduino UNO, but with additional features. Below is a table summarizing the key pins:

Usage Instructions

How to Use the Wemos D1 R32 in a Circuit

1. Powering the Board:

   • Connect the board to your computer via the Micro-USB port for power and programming.
   • Alternatively, supply 5V to the VIN pin for external power.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board support package.
   • Select "Wemos D1 R32" or a compatible ESP32 board from the Tools menu.
   • Write your code and upload it via the USB connection.

3. Connecting Peripherals:

   • Use the GPIO pins for digital input/output.
   • Connect sensors to the analog pins (A0-A17) for reading analog signals.
   • Use the I2C (SCL, SDA) or SPI pins for communication with external modules.

Important Considerations and Best Practices

• Voltage Levels: The GPIO pins operate at 3.3V. Avoid applying 5V directly to these pins to prevent damage.
• Power Supply: Ensure a stable power supply, especially when using Wi-Fi or Bluetooth, as these features can draw significant current.
• Pin Multiplexing: Some pins have multiple functions (e.g., ADC, PWM, UART). Check the ESP32 datasheet to avoid conflicts.
• Boot Mode: If the board fails to upload code, press and hold the BOOT button while uploading.

Example Code for Arduino IDE

Below is an example of how to connect the Wemos D1 R32 to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password
const int ledPin = 2;                 // Built-in LED pin (GPIO2)

void setup() {
  pinMode(ledPin, OUTPUT);            // Set LED pin as output
  Serial.begin(115200);               // Initialize serial communication
  WiFi.begin(ssid, password);         // Connect to Wi-Fi network

  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nConnected to Wi-Fi!");
}

void loop() {
  digitalWrite(ledPin, HIGH);         // Turn the LED on
  delay(1000);                        // Wait for 1 second
  digitalWrite(ledPin, LOW);          // Turn the LED off
  delay(1000);                        // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

1. Problem: The board is not detected by the Arduino IDE.
   Solution:

   • Ensure the correct USB driver is installed for the ESP32.
   • Check that the correct COM port is selected in the Tools menu.
   • Try a different USB cable or port.

2. Problem: Code upload fails with a timeout error.
   Solution:

   • Press and hold the BOOT button while uploading the code.
   • Ensure the correct board and port are selected in the Arduino IDE.

3. Problem: Wi-Fi connection fails.
   Solution:

   • Double-check the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and operational.

4. Problem: GPIO pins are not functioning as expected.
   Solution:

   • Verify that the pins are not being used for multiple functions.
   • Check the ESP32 datasheet for pin-specific limitations.

FAQs

• Can I power the Wemos D1 R32 with a battery?
  Yes, you can use a 3.7V LiPo battery with a suitable voltage regulator or connect a 5V source to the VIN pin.

• Is the Wemos D1 R32 compatible with Arduino libraries?
  Most Arduino libraries are compatible, but some may require modifications for the ESP32 architecture.

• How do I reset the board?
  Press the EN (Enable) button to reset the board.

This documentation provides a comprehensive guide to using the Wemos D1 R32 effectively. For further details, refer to the ESP32 datasheet and the Arduino IDE documentation.
