How to Use LCD-16X2: Examples, Pinouts, and Specs

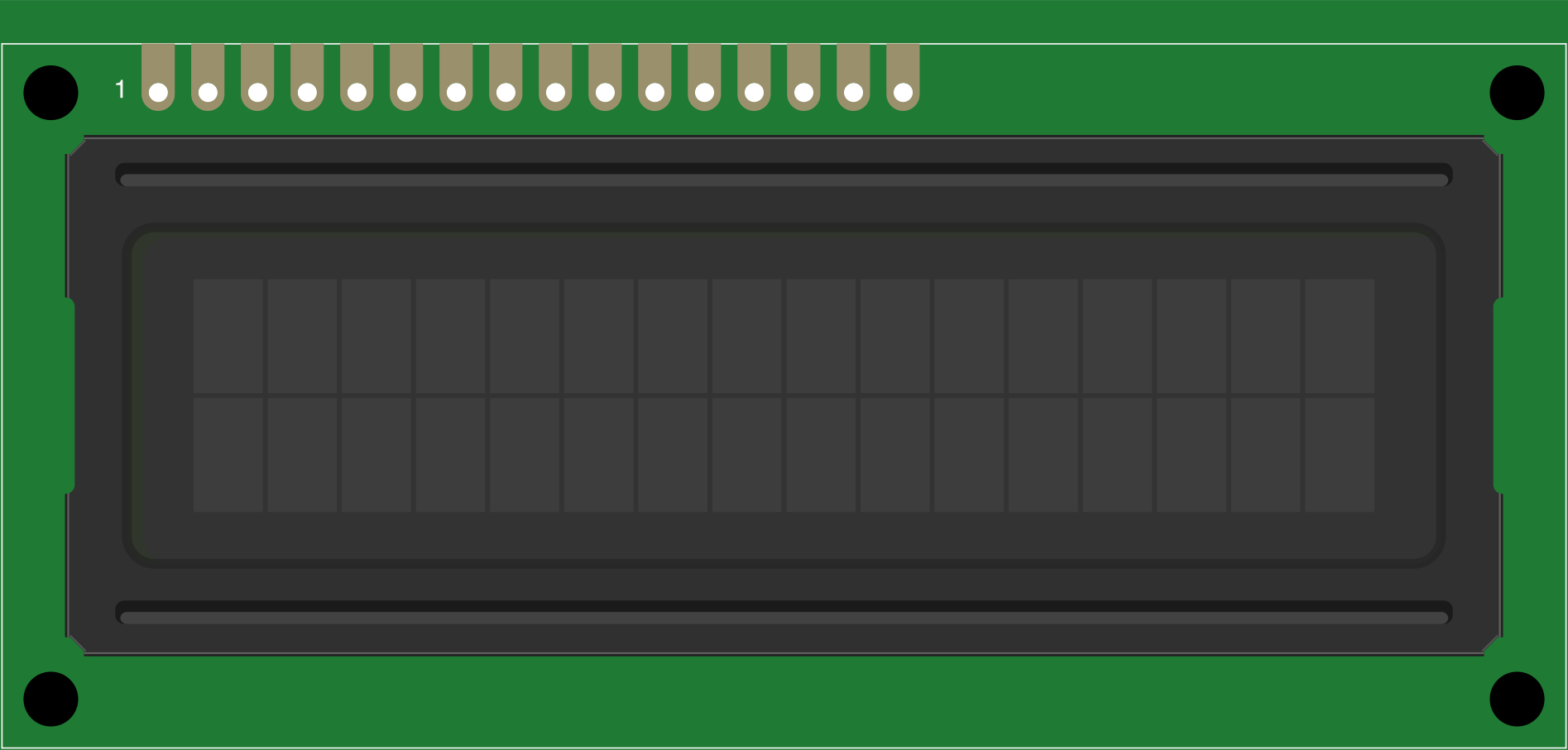

The LCD-16X2 is a 16-character by 2-line Liquid Crystal Display (LCD) module widely used in electronic projects for displaying alphanumeric characters and symbols. It is based on the HD44780 controller, which makes it easy to interface with most microcontrollers, including Arduino, Raspberry Pi, and other development boards. The module features a simple pinout and supports both 4-bit and 8-bit data communication modes.

• Displaying sensor readings in embedded systems
• User interfaces for DIY electronics projects
• Menu systems for microcontroller-based devices
• Educational and prototyping purposes

• Display Type: 16 characters x 2 lines
• Controller: HD44780 or compatible
• Operating Voltage: 4.7V to 5.3V
• Current Consumption: ~1mA (without backlight), ~15mA (with backlight)
• Character Size: 5x8 dot matrix
• Communication Modes: 4-bit or 8-bit parallel
• Backlight: LED backlight (optional, depending on the model)
• Operating Temperature: -20°C to +70°C

The LCD-16X2 module typically has 16 pins. Below is the pinout and description:

1. Power Supply: Connect pin 1 (VSS) to ground and pin 2 (VDD) to a 5V power supply.
2. Contrast Adjustment: Connect pin 3 (VO) to the wiper of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to 5V and ground.
3. Control Pins: Connect the RS, RW, and E pins to digital output pins of your microcontroller. For most applications, connect RW to ground (write mode).
4. Data Pins: Use either 4-bit mode (D4-D7) or 8-bit mode (D0-D7) for data communication. In 4-bit mode, leave D0-D3 unconnected.
5. Backlight: If using the backlight, connect pin 15 (A) to 5V through a current-limiting resistor (e.g., 220Ω) and pin 16 (K) to ground.

Below is an example of how to interface the LCD-16X2 with an Arduino UNO using the LiquidCrystal library in 4-bit mode:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// RS -> Pin 12, E -> Pin 11, D4 -> Pin 5, D5 -> Pin 4, D6 -> Pin 3, D7 -> Pin 2
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(16, 2);

  // Print a message to the LCD
  lcd.print("Hello, World!");
}

void loop() {
  // Set the cursor to column 0, line 1 (second row)
  lcd.setCursor(0, 1);

  // Print the current time in seconds since the Arduino started
  lcd.print(millis() / 1000);
}

• Always use a potentiometer to adjust the contrast for optimal visibility.
• Avoid leaving unused data pins floating; tie them to ground if not used.
• Use a current-limiting resistor for the backlight to prevent damage.
• Ensure proper grounding to avoid noise or flickering issues.

1. No Display on the LCD:

   • Check the power supply connections (VSS and VDD).
   • Adjust the contrast using the potentiometer connected to VO.
   • Verify that the Enable (E) and Register Select (RS) pins are correctly connected.

2. Flickering or Garbled Characters:

   • Ensure proper grounding of the circuit.
   • Check for loose connections or poor solder joints.
   • Verify that the data pins are correctly connected and configured.

3. Backlight Not Working:

   • Confirm that the backlight pins (A and K) are connected properly.
   • Use an appropriate resistor to limit the current to the backlight.

4. LCD Not Responding to Commands:

   • Ensure the RW pin is grounded for write mode.
   • Double-check the pin assignments in your code and wiring.

Q: Can I use the LCD-16X2 with a 3.3V microcontroller?
A: Yes, but you will need a level shifter or resistor divider for the data and control pins. Additionally, the backlight may not work optimally at 3.3V.

Q: How do I display custom characters on the LCD?
A: The HD44780 controller allows you to define up to 8 custom characters. Use the createChar() function in the LiquidCrystal library to define and display custom characters.

Q: Can I use the LCD-16X2 without a backlight?
A: Yes, the display will still function without the backlight, but it may be harder to read in low-light conditions.

Q: What is the maximum cable length for connecting the LCD to a microcontroller?
A: Keep the cable length as short as possible (preferably under 30cm) to avoid signal degradation and noise issues. Use shielded cables if longer distances are required.
