How to Use STM32: Examples, Pinouts, and Specs

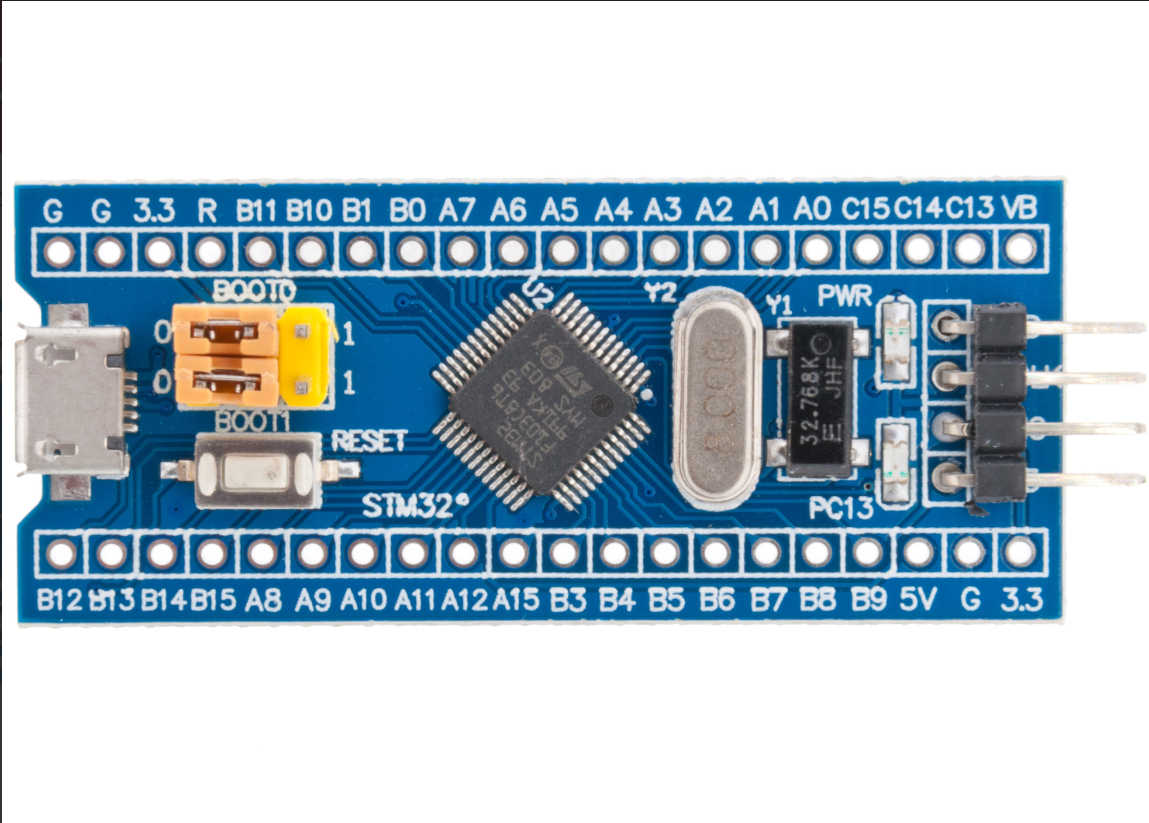

Image of STM32
Cirkit Designer LogoDesign with STM32 in Cirkit Designer

Introduction

The STM32 is a family of 32-bit microcontrollers developed by STMicroelectronics. These microcontrollers are based on the ARM Cortex-M architecture, offering a balance of high performance, low power consumption, and a rich set of peripherals. STM32 microcontrollers are widely used in embedded systems, including industrial automation, IoT devices, robotics, consumer electronics, and more.

Common applications of STM32 include:

  • Motor control and industrial automation
  • Internet of Things (IoT) devices
  • Wearable technology
  • Medical devices
  • Audio and multimedia processing
  • General-purpose embedded systems

Explore Projects Built with STM32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
STM32F103C8T6-Based Spectral Sensor with ST7735S Display and Pushbutton Control
Image of ColorSensor: A project utilizing STM32 in a practical application
This circuit features an STM32F103C8T6 microcontroller interfaced with a China ST7735S 160x128 display and two spectral sensors (Adafruit AS7262 and AS7261). It also includes two pushbuttons for user input, with the microcontroller managing the display and sensor data processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32H7-Based Multi-Sensor Monitoring System with GSM Alert and LCD Display
Image of medical: A project utilizing STM32 in a practical application
This circuit is centered around an STM32H7 microcontroller, which interfaces with a variety of sensors including a DHT11 temperature and humidity sensor, a DS3231 real-time clock, an MQ-2 smoke detector, an IR sensor, a MAX30102 pulse oximeter, and a body temperature sensor. It also includes a GSM module for communication, an LCD display for output, multiple pushbuttons for input, a buzzer, and a speaker for audio signaling. The microcontroller's embedded code suggests that it is programmed to periodically read from the sensors, handle button inputs, update the LCD display, and potentially send alerts via the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32F103C8T6 Microcontroller-Based Motor Control System with RS485 Communication
Image of ROBOCON_TASK 1 SCHME DIAGRAM: A project utilizing STM32 in a practical application
This circuit is designed to control LEDs, a DC motor, and a servo motor using an STM32F103C8T6 microcontroller. It includes a motor driver for the DC motor, a voltage regulator for stable power supply, and an RS485 to USB converter for communication. User inputs can be provided through pushbuttons, and a potentiometer allows for variable analog input.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32 Nucleo F303RE Controlled Ultrasonic Sensing with RGB Feedback and I2C LCD Display
Image of CS435-final: A project utilizing STM32 in a practical application
This circuit features a STM32 Nucleo F303RE microcontroller interfaced with three HC-SR04 ultrasonic sensors for distance measurement and a 20x4 LCD display over I2C for data output. Additionally, there is a WS2812 RGB LED strip controlled by the microcontroller for visual feedback. The power supply provides a common 5V to the LCD, ultrasonic sensors, LED strip, and the microcontroller's +5V input, with all components sharing a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with STM32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ColorSensor: A project utilizing STM32 in a practical application
STM32F103C8T6-Based Spectral Sensor with ST7735S Display and Pushbutton Control
This circuit features an STM32F103C8T6 microcontroller interfaced with a China ST7735S 160x128 display and two spectral sensors (Adafruit AS7262 and AS7261). It also includes two pushbuttons for user input, with the microcontroller managing the display and sensor data processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of medical: A project utilizing STM32 in a practical application
STM32H7-Based Multi-Sensor Monitoring System with GSM Alert and LCD Display
This circuit is centered around an STM32H7 microcontroller, which interfaces with a variety of sensors including a DHT11 temperature and humidity sensor, a DS3231 real-time clock, an MQ-2 smoke detector, an IR sensor, a MAX30102 pulse oximeter, and a body temperature sensor. It also includes a GSM module for communication, an LCD display for output, multiple pushbuttons for input, a buzzer, and a speaker for audio signaling. The microcontroller's embedded code suggests that it is programmed to periodically read from the sensors, handle button inputs, update the LCD display, and potentially send alerts via the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ROBOCON_TASK 1 SCHME DIAGRAM: A project utilizing STM32 in a practical application
STM32F103C8T6 Microcontroller-Based Motor Control System with RS485 Communication
This circuit is designed to control LEDs, a DC motor, and a servo motor using an STM32F103C8T6 microcontroller. It includes a motor driver for the DC motor, a voltage regulator for stable power supply, and an RS485 to USB converter for communication. User inputs can be provided through pushbuttons, and a potentiometer allows for variable analog input.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CS435-final: A project utilizing STM32 in a practical application
STM32 Nucleo F303RE Controlled Ultrasonic Sensing with RGB Feedback and I2C LCD Display
This circuit features a STM32 Nucleo F303RE microcontroller interfaced with three HC-SR04 ultrasonic sensors for distance measurement and a 20x4 LCD display over I2C for data output. Additionally, there is a WS2812 RGB LED strip controlled by the microcontroller for visual feedback. The power supply provides a common 5V to the LCD, ultrasonic sensors, LED strip, and the microcontroller's +5V input, with all components sharing a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

STM32 microcontrollers are available in various series, each tailored for specific applications. Below are the general technical specifications for the STM32 family:

  • Core: ARM Cortex-M (M0, M0+, M3, M4, or M7 depending on the series)
  • Clock Speed: Up to 480 MHz (varies by model)
  • Flash Memory: 16 KB to 2 MB
  • RAM: 4 KB to 1 MB
  • Operating Voltage: 1.8V to 3.6V
  • I/O Pins: Up to 168 GPIOs (depending on the package)
  • Communication Interfaces: UART, SPI, I2C, CAN, USB, Ethernet, etc.
  • Timers: General-purpose, advanced, and low-power timers
  • ADC/DAC: Up to 16-bit ADC and 12-bit DAC
  • Power Modes: Sleep, Stop, and Standby for low-power operation

Pin Configuration and Descriptions

The pin configuration varies depending on the specific STM32 model and package. Below is an example pinout for the STM32F103C8T6 (commonly used in development boards like the "Blue Pill"):

Pin Name Type Description
PA0-PA15 GPIO/Analog General-purpose I/O or analog input pins
PB0-PB15 GPIO/Analog General-purpose I/O or analog input pins
PC13-PC15 GPIO General-purpose I/O pins
VDD Power Positive supply voltage (3.3V)
VSS Power Ground
NRST Reset Reset pin
BOOT0 Input Boot mode selection
USART1_TX Communication UART transmit pin
USART1_RX Communication UART receive pin
SWDIO Debugging Serial Wire Debug I/O
SWCLK Debugging Serial Wire Debug clock

Refer to the datasheet of your specific STM32 model for the complete pinout and functionality.

Usage Instructions

How to Use the STM32 in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the VDD pin and connect the VSS pin to ground.
  2. Clock Configuration: Use an external crystal oscillator (e.g., 8 MHz) or the internal RC oscillator for the system clock.
  3. Boot Mode Selection: Configure the BOOT0 pin to select the desired boot mode:
    • BOOT0 = 0: Boot from main flash memory
    • BOOT0 = 1: Boot from system memory (for firmware upload)
  4. Programming: Use an ST-Link programmer/debugger or a USB-to-serial adapter to upload firmware via the USART or SWD interface.
  5. Peripherals: Connect external devices (e.g., sensors, actuators) to the GPIO, UART, SPI, or I2C pins as needed.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the microcontroller.
  • Decoupling Capacitors: Place decoupling capacitors (e.g., 0.1 µF) close to the VDD pins to stabilize the power supply.
  • Debugging: Use the SWD interface for debugging and firmware development.
  • Low-Power Modes: Utilize the low-power modes (Sleep, Stop, Standby) to reduce power consumption in battery-powered applications.

Example Code for STM32 with Arduino IDE

The STM32 can be programmed using the Arduino IDE with the STM32duino core. Below is an example of blinking an LED connected to pin PC13:

// Include the Arduino header file for STM32
#include <Arduino.h>

// Define the LED pin (PC13 on the Blue Pill board)
#define LED_PIN PC13

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(500); // Wait for 500 milliseconds

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(500); // Wait for 500 milliseconds
}

To upload the code:

  1. Install the STM32duino core in the Arduino IDE.
  2. Select the appropriate STM32 board and upload method (e.g., "Blue Pill" and "STM32duino bootloader").
  3. Connect the STM32 to your computer via USB or a USB-to-serial adapter.
  4. Upload the code using the Arduino IDE.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The STM32 does not power on:

    • Verify the power supply voltage (3.3V) and connections.
    • Check for proper decoupling capacitors near the VDD pins.
  2. Unable to upload firmware:

    • Ensure the BOOT0 pin is set correctly for the desired boot mode.
    • Check the connection between the STM32 and the programmer/debugger.
    • Verify the correct board and upload method are selected in the IDE.
  3. Peripherals not working:

    • Double-check the pin configuration and connections.
    • Ensure the peripheral clock is enabled in the firmware.
  4. High power consumption:

    • Use low-power modes (Sleep, Stop, Standby) to reduce power usage.
    • Disable unused peripherals in the firmware.

FAQs

  • Can I program the STM32 without an external programmer? Yes, many STM32 models support firmware upload via USB or UART using the built-in bootloader.

  • What development tools are available for STM32? Popular tools include STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and the Arduino IDE (with STM32duino core).

  • How do I select the right STM32 model for my project? Consider factors like required performance, memory size, peripherals, and power consumption. Use STMicroelectronics' product selector tool for guidance.

  • Can I use 5V peripherals with the STM32? No, the STM32 operates at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
