How to Use DC motor: Examples, Pinouts, and Specs

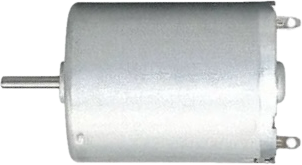

Image of DC motor
Cirkit Designer LogoDesign with DC motor in Cirkit Designer

Introduction

A DC motor is an electromechanical device that converts direct current (DC) electrical energy into mechanical energy, enabling rotational motion. It operates based on the principle of electromagnetic induction, where a magnetic field interacts with current-carrying conductors to produce torque. DC motors are widely used in applications such as robotics, fans, conveyor belts, and electric vehicles due to their simplicity, reliability, and ease of control.

Explore Projects Built with DC motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC Motor Control with LED Indicator
Image of alternator: A project utilizing DC motor in a practical application
This circuit consists of a DC motor powered by a 12V battery, with a diode for protection against reverse voltage and an LED indicator. The LED is connected in parallel with the motor to indicate when the motor is powered.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and L298N Motor Driver Controlled Battery-Powered Robotic Car
Image of ESP 32 BT BOT: A project utilizing DC motor in a practical application
This circuit is a motor control system powered by a 12V battery, utilizing an L298N motor driver to control four DC gearmotors. An ESP32 microcontroller is used to send control signals to the motor driver, enabling precise control of the motors for applications such as a robotic vehicle.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled DC Motor with 12V Battery and Motor Driver
Image of BR30: A project utilizing DC motor in a practical application
This circuit controls a DC motor using an ESP32 microcontroller and a 2-channel motor driver. The ESP32 outputs a PWM signal and a direction control to the motor driver, which in turn drives the motor with power from a 12v battery. The code provided sets up the ESP32 to output a PWM signal at a fixed duty cycle and a high direction signal, causing the motor to spin in one direction at a constant speed.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled Multi-Motor System with IR Sensors
Image of ABV : A project utilizing DC motor in a practical application
This circuit features an ESP8266 NodeMCU microcontroller interfaced with an L298N DC motor driver to control four DC motors. The motors are powered by a 12V battery, and the system includes three IR sensors for input. The ESP8266 uses its GPIO pins to send control signals to the L298N driver, which in turn controls the direction and speed of the motors based on the logic level signals received from the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of alternator: A project utilizing DC motor in a practical application
Battery-Powered DC Motor Control with LED Indicator
This circuit consists of a DC motor powered by a 12V battery, with a diode for protection against reverse voltage and an LED indicator. The LED is connected in parallel with the motor to indicate when the motor is powered.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP 32 BT BOT: A project utilizing DC motor in a practical application
ESP32 and L298N Motor Driver Controlled Battery-Powered Robotic Car
This circuit is a motor control system powered by a 12V battery, utilizing an L298N motor driver to control four DC gearmotors. An ESP32 microcontroller is used to send control signals to the motor driver, enabling precise control of the motors for applications such as a robotic vehicle.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BR30: A project utilizing DC motor in a practical application
ESP32-Controlled DC Motor with 12V Battery and Motor Driver
This circuit controls a DC motor using an ESP32 microcontroller and a 2-channel motor driver. The ESP32 outputs a PWM signal and a direction control to the motor driver, which in turn drives the motor with power from a 12v battery. The code provided sets up the ESP32 to output a PWM signal at a fixed duty cycle and a high direction signal, causing the motor to spin in one direction at a constant speed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ABV : A project utilizing DC motor in a practical application
ESP8266 NodeMCU Controlled Multi-Motor System with IR Sensors
This circuit features an ESP8266 NodeMCU microcontroller interfaced with an L298N DC motor driver to control four DC motors. The motors are powered by a 12V battery, and the system includes three IR sensors for input. The ESP8266 uses its GPIO pins to send control signals to the L298N driver, which in turn controls the direction and speed of the motors based on the logic level signals received from the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Robotics: For driving wheels, arms, or other moving parts.
  • Fans and Blowers: To generate airflow in cooling systems.
  • Electric Vehicles: For propulsion systems.
  • Conveyor Belts: To move materials in industrial settings.
  • Home Appliances: Such as mixers, drills, and toys.

Technical Specifications

Below are the general technical specifications for a typical DC motor. Note that actual values may vary depending on the specific model and manufacturer.

Key Specifications:

  • Operating Voltage: 3V to 24V (varies by model)
  • Current Rating: 100mA to 2A (depending on load and motor size)
  • Speed: 1000 to 10,000 RPM (Revolutions Per Minute)
  • Torque: 0.1 to 10 N·m (Newton-meters)
  • Power Output: 0.1W to 100W
  • Motor Type: Brushed or Brushless DC Motor

Pin Configuration and Descriptions:

For a basic brushed DC motor, there are typically two terminals:

Pin Description
+ Positive terminal for power input
- Negative terminal for power input

For a brushless DC motor (BLDC), there may be additional wires for control and feedback:

Pin Description
U Phase U connection
V Phase V connection
W Phase W connection
Hall A Hall sensor output A (feedback)
Hall B Hall sensor output B (feedback)
Hall C Hall sensor output C (feedback)

Usage Instructions

How to Use a DC Motor in a Circuit:

  1. Power Supply: Connect the motor terminals to a DC power source. Ensure the voltage matches the motor's rated voltage.
  2. Direction Control: Use an H-bridge circuit or motor driver IC (e.g., L298N) to control the direction of rotation.
  3. Speed Control: Implement Pulse Width Modulation (PWM) using a microcontroller (e.g., Arduino) to adjust the motor speed.
  4. Load Considerations: Avoid overloading the motor to prevent overheating or damage.

Important Considerations:

  • Voltage Matching: Always operate the motor within its rated voltage range.
  • Current Limiting: Use a current-limiting resistor or motor driver to prevent excessive current draw.
  • Heat Dissipation: Ensure proper ventilation or heat sinks to manage heat generated during operation.
  • Noise Suppression: Add capacitors across the motor terminals to reduce electrical noise.

Example: Controlling a DC Motor with Arduino UNO

Below is an example of how to control a DC motor using an Arduino UNO and an L298N motor driver.

Circuit Connections:

  • Connect the motor terminals to the L298N motor driver outputs (OUT1 and OUT2).
  • Connect the L298N input pins (IN1 and IN2) to Arduino digital pins 9 and 10.
  • Connect the L298N enable pin (ENA) to Arduino PWM pin 3.
  • Provide a suitable power supply to the motor driver and motor.

Arduino Code:

// Define motor control pins
const int IN1 = 9;  // Motor driver input 1
const int IN2 = 10; // Motor driver input 2
const int ENA = 3;  // Motor driver enable pin (PWM)

// Setup function to initialize pins
void setup() {
  pinMode(IN1, OUTPUT); // Set IN1 as output
  pinMode(IN2, OUTPUT); // Set IN2 as output
  pinMode(ENA, OUTPUT); // Set ENA as output
}

// Loop function to control motor
void loop() {
  // Rotate motor clockwise
  digitalWrite(IN1, HIGH); // Set IN1 high
  digitalWrite(IN2, LOW);  // Set IN2 low
  analogWrite(ENA, 128);   // Set speed to 50% (PWM value: 128)

  delay(2000); // Run motor for 2 seconds

  // Rotate motor counterclockwise
  digitalWrite(IN1, LOW);  // Set IN1 low
  digitalWrite(IN2, HIGH); // Set IN2 high
  analogWrite(ENA, 128);   // Maintain speed at 50%

  delay(2000); // Run motor for 2 seconds

  // Stop motor
  digitalWrite(IN1, LOW);  // Set IN1 low
  digitalWrite(IN2, LOW);  // Set IN2 low
  analogWrite(ENA, 0);     // Set speed to 0 (stop motor)

  delay(2000); // Wait for 2 seconds before repeating
}

Best Practices:

  • Use a flyback diode across the motor terminals to protect the circuit from voltage spikes.
  • Test the motor with no load before integrating it into your application.
  • Regularly inspect the motor for wear and tear, especially in brushed motors.

Troubleshooting and FAQs

Common Issues:

  1. Motor Does Not Spin:

    • Check the power supply voltage and connections.
    • Verify that the motor driver or H-bridge is functioning correctly.
    • Ensure the motor is not overloaded or mechanically jammed.
  2. Motor Spins in the Wrong Direction:

    • Reverse the polarity of the motor terminals.
    • Adjust the control signals (e.g., IN1 and IN2) in your circuit.
  3. Motor Overheats:

    • Reduce the load on the motor.
    • Ensure proper ventilation or cooling mechanisms.
    • Check for excessive current draw and adjust the power supply accordingly.
  4. Motor Produces Noise or Vibrations:

    • Add capacitors across the motor terminals to suppress electrical noise.
    • Inspect the motor for mechanical imbalances or loose components.

FAQs:

  • Q: Can I power a DC motor directly from an Arduino?
    A: No, the Arduino cannot supply enough current to drive a DC motor. Use a motor driver or external power supply.

  • Q: How do I control the speed of a DC motor?
    A: Use PWM (Pulse Width Modulation) to vary the voltage supplied to the motor.

  • Q: What is the difference between brushed and brushless DC motors?
    A: Brushed motors use physical brushes for commutation, while brushless motors use electronic commutation, making them more efficient and durable.

  • Q: Can I run a DC motor in reverse?
    A: Yes, by reversing the polarity of the power supply or using an H-bridge circuit.

This concludes the documentation for the DC motor.
