How to Use ESP32S NodeMCU: Examples, Pinouts, and Specs

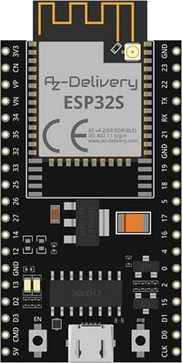

Image of ESP32S NodeMCU
Cirkit Designer LogoDesign with ESP32S NodeMCU in Cirkit Designer

Introduction

The ESP32S NodeMCU, manufactured by AZ-Delivery, is a versatile and cost-effective system on a chip (SoC) designed for Internet of Things (IoT) applications. It integrates Wi-Fi and Bluetooth capabilities, making it ideal for creating connected devices. With its dual-core processor, extensive GPIO pins, and support for multiple programming environments (e.g., Arduino IDE, MicroPython, and ESP-IDF), the ESP32S NodeMCU is a popular choice for both hobbyists and professionals.

Explore Projects Built with ESP32S NodeMCU

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 NodeMCU OLED Display: Wi-Fi Enabled Hello World Project
Image of oled: A project utilizing ESP32S NodeMCU in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to a 1.3-inch OLED display via I2C communication. The microcontroller initializes the display and renders basic graphics and text, demonstrating a simple interface for visual output.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled Environmental Monitoring System with OLED Display and Relay Switching
Image of soil moisture: A project utilizing ESP32S NodeMCU in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to various peripherals. It includes a DHT11 sensor for temperature and humidity readings, a YL-83 module with YL-69 probe for soil moisture detection, a 0.96" OLED display for data output, a common cathode RGB LED for status indication, a piezo speaker for audio alerts, and a KY-019 relay module for controlling external loads. The NodeMCU facilitates data acquisition from sensors, drives the display and LED, and can trigger the relay and speaker based on sensor inputs or programmed conditions.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU-Based Environmental Monitoring and Proximity Detection System
Image of mgr: A project utilizing ESP32S NodeMCU in a practical application
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a BME/BMP280 sensor for environmental data, an HC-SR04 ultrasonic sensor for distance measurement, and an OLED display for output. Two LEDs (red and green) are included, each with a current-limiting resistor, likely for status indication. The ESP8266 facilitates communication with the sensors and display via I2C (SCL and SDA lines) and controls the LEDs and reads from the ultrasonic sensor using its GPIO pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
NodeMCU ESP8266 Water Flow Monitoring System with OLED Display and Alert Indicators
Image of IoT: A project utilizing ESP32S NodeMCU in a practical application
This circuit features a NodeMCU V3 ESP8266 microcontroller connected to a water flow sensor, an OLED display, a buzzer, and two LEDs (red and green). The water flow sensor's signal output is connected to a digital pin on the NodeMCU for flow measurement. The OLED display is interfaced via I2C with the NodeMCU, the buzzer is controlled by another digital pin for audio feedback, and the LEDs are used as status indicators, all powered by the NodeMCU's 3.3V supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32S NodeMCU

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of oled: A project utilizing ESP32S NodeMCU in a practical application
ESP8266 NodeMCU OLED Display: Wi-Fi Enabled Hello World Project
This circuit features an ESP8266 NodeMCU microcontroller connected to a 1.3-inch OLED display via I2C communication. The microcontroller initializes the display and renders basic graphics and text, demonstrating a simple interface for visual output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of soil moisture: A project utilizing ESP32S NodeMCU in a practical application
ESP8266 NodeMCU Controlled Environmental Monitoring System with OLED Display and Relay Switching
This circuit features an ESP8266 NodeMCU microcontroller connected to various peripherals. It includes a DHT11 sensor for temperature and humidity readings, a YL-83 module with YL-69 probe for soil moisture detection, a 0.96" OLED display for data output, a common cathode RGB LED for status indication, a piezo speaker for audio alerts, and a KY-019 relay module for controlling external loads. The NodeMCU facilitates data acquisition from sensors, drives the display and LED, and can trigger the relay and speaker based on sensor inputs or programmed conditions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mgr: A project utilizing ESP32S NodeMCU in a practical application
ESP8266 NodeMCU-Based Environmental Monitoring and Proximity Detection System
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a BME/BMP280 sensor for environmental data, an HC-SR04 ultrasonic sensor for distance measurement, and an OLED display for output. Two LEDs (red and green) are included, each with a current-limiting resistor, likely for status indication. The ESP8266 facilitates communication with the sensors and display via I2C (SCL and SDA lines) and controls the LEDs and reads from the ultrasonic sensor using its GPIO pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IoT: A project utilizing ESP32S NodeMCU in a practical application
NodeMCU ESP8266 Water Flow Monitoring System with OLED Display and Alert Indicators
This circuit features a NodeMCU V3 ESP8266 microcontroller connected to a water flow sensor, an OLED display, a buzzer, and two LEDs (red and green). The water flow sensor's signal output is connected to a digital pin on the NodeMCU for flow measurement. The OLED display is interfaced via I2C with the NodeMCU, the buzzer is controlled by another digital pin for audio feedback, and the LEDs are used as status indicators, all powered by the NodeMCU's 3.3V supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Home automation systems
  • Wireless sensor networks
  • Smart appliances
  • Wearable devices
  • Industrial IoT solutions
  • Robotics and automation projects
  • Prototyping and educational projects

Technical Specifications

The ESP32S NodeMCU is packed with features that make it a powerful and flexible development board. Below are its key technical details:

Key Technical Details

Parameter Specification
Microcontroller ESP32 Dual-Core Xtensa LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n
Bluetooth v4.2 BR/EDR and BLE
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or VIN pin)
GPIO Pins 30+ (varies by board layout)
ADC Channels 18
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power (varies by mode)
Dimensions ~58mm x 25.5mm

Pin Configuration and Descriptions

The ESP32S NodeMCU features a variety of pins for different functionalities. Below is a table summarizing the key pins:

Pin Name Description
VIN Input voltage (5V)
3V3 3.3V output
GND Ground
EN Enable pin (active high)
GPIO0 Boot mode selection (used for flashing)
GPIO2 General-purpose I/O pin
GPIO12-39 General-purpose I/O pins with various functions
ADC1/ADC2 Analog-to-digital converter channels
DAC1/DAC2 Digital-to-analog converter channels
TX0/RX0 UART0 communication pins
SCL/SDA I2C clock and data pins
MOSI/MISO SPI data pins
SCK SPI clock pin

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

The ESP32S NodeMCU is easy to use in a variety of projects. Below are the steps to get started and important considerations:

How to Use the ESP32S NodeMCU in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.
  2. Programming the Board:

    • Install the Arduino IDE or another supported environment (e.g., MicroPython).
    • Add the ESP32 board manager URL to the Arduino IDE:
      https://dl.espressif.com/dl/package_esp32_index.json
    • Install the ESP32 board package via the Arduino Boards Manager.
    • Select the correct board and port in the Arduino IDE.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure proper voltage levels (3.3V logic) to avoid damaging the board.
  4. Uploading Code:

    • Write your code in the Arduino IDE or another environment.
    • Click the upload button to flash the code to the ESP32S NodeMCU.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins.
  • Boot Mode Pins: GPIO0, GPIO2, and GPIO15 are used during boot. Avoid pulling these pins high or low unless necessary.
  • Power Supply: Ensure a stable power supply, especially when using Wi-Fi or Bluetooth, as these can cause power spikes.
  • Heat Management: The ESP32 may get warm during operation. Ensure proper ventilation if used in an enclosure.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver (e.g., CP2102 or CH340, depending on the board).
  2. Code upload fails:

    • Check that the correct board and port are selected in the Arduino IDE.
    • Hold the "BOOT" button on the board while uploading the code.
  3. Wi-Fi connection issues:

    • Verify the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  4. GPIO pin not working as expected:

    • Check if the pin is used during boot or has specific restrictions.
    • Verify the wiring and ensure proper pull-up or pull-down resistors are used if needed.

FAQs

Q: Can I use the ESP32S NodeMCU with MicroPython?
A: Yes, the ESP32S NodeMCU supports MicroPython. You can flash the MicroPython firmware and use tools like Thonny IDE for programming.

Q: How do I reset the board?
A: Press the "EN" (Enable) button on the board to reset it.

Q: Can I power the board with a battery?
A: Yes, you can use a 3.7V LiPo battery connected to the 3V3 pin or a 5V source connected to the VIN pin.

Q: What is the maximum current draw of the ESP32?
A: The ESP32 can draw up to 500 mA during peak operation (e.g., Wi-Fi transmission). Ensure your power source can handle this.

By following this documentation, you can effectively use the ESP32S NodeMCU in your projects and troubleshoot common issues.
