How to Use 2 Female to 1 Male power cable Splitter: Examples, Pinouts, and Specs
Design with 2 Female to 1 Male power cable Splitter in Cirkit DesignerIntroduction

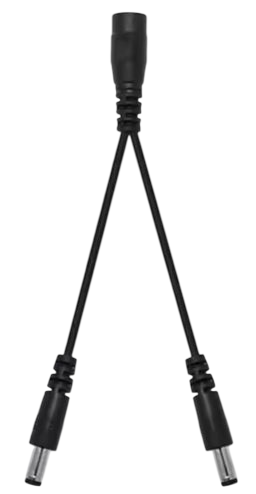

The 2 Female to 1 Male Power Cable Splitter (Manufacturer Part ID: 2to1DC Cable Splitter) is a simple yet versatile electronic accessory designed to split a single DC power source into two outputs. This component features one male DC connector and two female DC connectors, allowing users to power multiple devices simultaneously from a single power supply.
Manufactured in China, this splitter is widely used in low-voltage DC applications, such as powering LED strips, CCTV cameras, routers, and other small electronic devices. Its compact design and ease of use make it an essential tool for hobbyists, technicians, and professionals alike.
Explore Projects Built with 2 Female to 1 Male power cable Splitter
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Open Project in Cirkit Designer5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Open Project in Cirkit DesignerModular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit DesignerBattery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Open Project in Cirkit DesignerExplore Projects Built with 2 Female to 1 Male power cable Splitter
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Open Project in Cirkit Designer5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Open Project in Cirkit DesignerModular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit DesignerBattery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Open Project in Cirkit DesignerCommon Applications
- Powering multiple LED strips from a single power adapter
- Connecting multiple CCTV cameras to a single power source
- Sharing power between two low-power devices
- Simplifying cable management in electronic setups
Technical Specifications
Key Technical Details
| Parameter | Specification |
|---|---|
| Manufacturer | China |
| Part ID | 2to1DC Cable Splitter |
| Input Connector | 1 x Male DC Barrel Plug (5.5mm x 2.1mm) |
| Output Connectors | 2 x Female DC Barrel Jacks (5.5mm x 2.1mm) |
| Voltage Rating | 5V to 24V DC |
| Current Rating | Up to 5A (shared across both outputs) |
| Cable Length | ~30 cm (varies by manufacturer) |
| Material | PVC Insulated Cable |
| Operating Temperature | -20°C to 60°C |
Pin Configuration and Descriptions
The 2 Female to 1 Male Power Cable Splitter does not have traditional pins but instead uses standard DC barrel connectors. Below is a description of the connectors:
| Connector Type | Description |
|---|---|
| Male Plug | Connects to the power source (e.g., adapter) |
| Female Jack 1 | Connects to the first powered device |
| Female Jack 2 | Connects to the second powered device |
Usage Instructions
How to Use the Component in a Circuit
- Connect the Male Plug: Insert the male DC connector into the output jack of your power adapter or power source.
- Connect the Female Jacks: Plug the female DC connectors into the power input ports of the devices you wish to power.
- Verify Voltage and Current: Ensure that the total current draw of the connected devices does not exceed the power adapter's maximum current rating or the splitter's 5A limit.
- Power On: Turn on the power source to supply power to both connected devices.
Important Considerations and Best Practices
- Voltage Compatibility: Ensure that the voltage of the power source matches the voltage requirements of the connected devices.
- Current Sharing: The total current drawn by both devices should not exceed the power source's maximum current rating or the splitter's 5A limit.
- Polarity Check: Verify that the polarity of the DC connectors matches the devices being powered (typically center-positive).
- Cable Length: Avoid extending the cable length excessively, as this may lead to voltage drops and reduced performance.
- Avoid Overloading: Do not connect high-power devices that exceed the splitter's current rating.
Example Use with Arduino UNO
While the 2 Female to 1 Male Power Cable Splitter is not directly connected to an Arduino UNO, it can be used to power an Arduino UNO and another device (e.g., an LED strip) from the same power adapter. Below is an example setup:
- Connect the male plug of the splitter to a 9V DC power adapter.
- Connect one female jack to the Arduino UNO's DC barrel jack.
- Connect the other female jack to the LED strip's power input.
Troubleshooting and FAQs
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| Devices not powering on | Incorrect voltage or polarity | Verify voltage and polarity of the power source. |
| One device powers on, the other doesn't | Insufficient current from the power source | Use a power adapter with a higher current rating. |
| Overheating of the splitter cable | Excessive current draw | Ensure the total current does not exceed 5A. |
| Voltage drop across devices | Long cable length or high current draw | Use shorter cables or a power source with higher capacity. |
FAQs
Can I use this splitter with a 12V power adapter?
- Yes, the splitter supports voltages from 5V to 24V DC. Ensure the connected devices are compatible with 12V.
What happens if I connect devices with different voltage requirements?
- The splitter does not regulate voltage. Both devices will receive the same voltage as the power source. Ensure all connected devices are compatible with the power source voltage.
Can I use this splitter to power three devices by adding another splitter?
- While technically possible, daisy-chaining splitters may lead to voltage drops and increased resistance. Ensure the total current draw remains within the power source's and splitter's limits.
Is this splitter waterproof?
- No, the splitter is not waterproof. Use it only in dry environments or protect it from moisture.
By following these guidelines and best practices, you can effectively use the 2 Female to 1 Male Power Cable Splitter in your electronic projects and setups.
