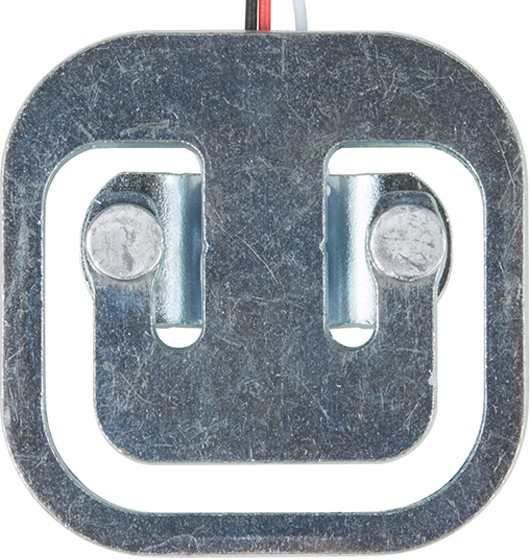

A load cell is a transducer that converts a force into an electrical signal. The 50kg load cell is specifically designed to measure weights up to 50 kilograms with high precision. It is commonly used in applications such as digital weighing scales, industrial automation systems, and force measurement devices. The load cell operates by detecting strain or deformation in its structure when a force is applied, and it outputs a small electrical signal proportional to the applied weight.
Explore Projects Built with Load cell 50kg
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed to measure weight using a 50kg load sensor interfaced with an HX711 weighing sensor module. The ESP32 microcontroller reads the data from the HX711 module and displays the weight on an I2C-connected LCD display. A 18650 battery with a holder provides power to the system, and a rocker switch is used to control the power supply to the ESP32.
This circuit is designed to measure weight using a 50kg load sensor interfaced with an HX711 weighing sensor module. The ESP32 microcontroller reads the measurements from the HX711 and displays the weight on an I2C-connected 16x4 LCD display. Power management is handled by a 18650 battery connected through a rocker switch, and two resistors are used for the load sensor's excitation and signal adjustment.
This is a multi-functional circuit designed for location tracking, cellular communication, and weight measurement. It uses an Arduino Nano to interface with a GPS module, a GSM module, and a load cell with an HX711 amplifier, displaying data on an I2C LCD screen. Power is supplied by a Li-Ion battery through a buck converter, with a rocker switch for power control and a pushbutton for user input.
This circuit is a digital weighing scale system that uses a 50kg load sensor connected to an HX711 weighing sensor module, which interfaces with an Arduino Pro Mini for data processing. The Arduino communicates the weight data wirelessly via a Bluetooth HC-06 module, and the entire system is powered by a 12V battery.
The 50kg load cell typically uses a 4-wire configuration. Below is the wiring description:
Wire Color
Function
Description
Red
Excitation+ (VCC)
Positive voltage input for excitation (5V to 12V DC)
Black
Excitation- (GND)
Ground connection for excitation
White
Signal+ (Output+)
Positive output signal proportional to the applied weight
Green
Signal- (Output-)
Negative output signal (used in differential signal measurement)
Usage Instructions
How to Use the Load Cell in a Circuit
Connect the Load Cell to an Amplifier:
The output signal of the load cell is very small (in millivolts) and needs to be amplified. Use an HX711 load cell amplifier module for this purpose.
Wiring the Load Cell to HX711:
Connect the load cell wires to the HX711 module as follows:
Red wire to E+ (Excitation+)
Black wire to E- (Excitation-)
White wire to A+ (Signal+)
Green wire to A- (Signal-)
Connect the HX711 module to a microcontroller (e.g., Arduino UNO).
Calibrate the Load Cell:
Calibration is necessary to ensure accurate weight measurements. Use known weights to determine the calibration factor.
Write Code for the Microcontroller:
Below is an example Arduino code to interface the load cell with an HX711 module:
// Include the HX711 library
#include "HX711.h"
// Define pins for HX711 module
#define DT 3 // Data pin connected to Arduino pin 3
#define SCK 2 // Clock pin connected to Arduino pin 2
// Create an HX711 object
HX711 scale;
void setup() {
Serial.begin(9600); // Initialize serial communication
scale.begin(DT, SCK); // Initialize HX711 with data and clock pins
// Perform calibration (use known weights to find the calibration factor)
Serial.println("Place a known weight on the load cell...");
delay(5000); // Wait for user to place the weight
scale.set_scale(); // Set the scale to default
scale.tare(); // Reset the scale to 0
Serial.println("Calibration complete.");
}
void loop() {
// Read weight from the load cell
float weight = scale.get_units(10); // Average 10 readings for stability
Serial.print("Weight: ");
Serial.print(weight);
Serial.println(" kg");
delay(1000); // Wait 1 second before the next reading
}
Important Considerations and Best Practices
Mounting: Ensure the load cell is securely mounted to avoid mechanical vibrations or misalignment, which can affect accuracy.
Overloading: Do not exceed the 50kg maximum capacity, as this can permanently damage the load cell.
Temperature Effects: Use the load cell within the specified operating temperature range to maintain accuracy.
Shielding: Use shielded cables to minimize electrical noise interference in the signal.
Troubleshooting and FAQs
Common Issues and Solutions
No Output Signal:
Cause: Incorrect wiring or loose connections.
Solution: Double-check the wiring and ensure all connections are secure.
Inconsistent Readings:
Cause: Mechanical vibrations or unstable mounting.
Solution: Ensure the load cell is mounted securely and the surface is stable.
Output Signal is Too Weak:
Cause: Insufficient excitation voltage or damaged load cell.
Solution: Verify the excitation voltage is within the recommended range (5V to 12V). Replace the load cell if damaged.
Calibration Issues:
Cause: Incorrect calibration factor or improper setup.
Solution: Recalibrate the load cell using known weights and ensure the HX711 module is functioning correctly.
FAQs
Q1: Can I use the load cell without an amplifier?
A1: No, the output signal of the load cell is in millivolts and requires amplification. Use an HX711 or similar amplifier module.
Q2: How do I protect the load cell from environmental factors?
A2: Use a protective enclosure or coating to shield the load cell from moisture, dust, and extreme temperatures.
Q3: Can I use multiple load cells together?
A3: Yes, multiple load cells can be connected in parallel to measure larger weights, but ensure proper wiring and calibration.
Q4: What is the lifespan of a load cell?
A4: With proper usage and within specified limits, a load cell can last for many years. Avoid overloading and physical damage to extend its lifespan.
