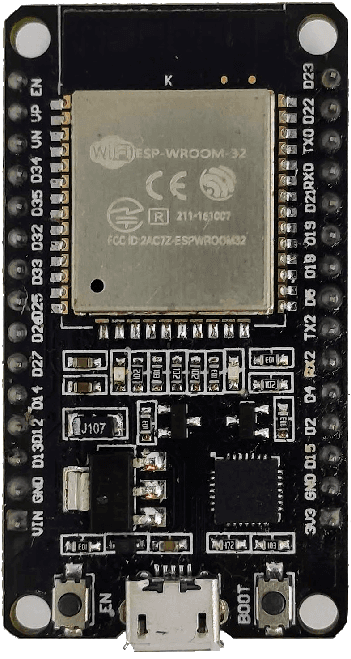

Image of ESP32 Devkit V1
Cirkit Designer LogoDesign with ESP32 Devkit V1 in Cirkit Designer

Introduction

The ESP32 Devkit V1 is a versatile microcontroller development board based on the ESP32 chip. It features built-in Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. With its dual-core processor, low power consumption, and extensive GPIO pins, the ESP32 Devkit V1 is suitable for a wide range of projects, from home automation to wearable devices.

Explore Projects Built with ESP32 Devkit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 Devkit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing ESP32 Devkit V1 in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 Devkit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 Devkit V1 in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 Devkit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mark: A project utilizing ESP32 Devkit V1 in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp32_monochromeimage: A project utilizing ESP32 Devkit V1 in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 Devkit V1 in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 Devkit V1 in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home systems
  • Wireless sensor networks
  • Wearable technology
  • Robotics and automation
  • Data logging and remote monitoring
  • Prototyping for Wi-Fi and Bluetooth-enabled devices

Technical Specifications

The ESP32 Devkit V1 is equipped with powerful hardware and a variety of features. Below are the key technical specifications:

Specification Details
Microcontroller ESP32-D0WDQ6 chip with dual-core Xtensa® 32-bit LX6 processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n
Bluetooth Bluetooth 4.2 and BLE (Bluetooth Low Energy)
Operating Voltage 3.3V
Input Voltage 5V (via USB) or 7-12V (via VIN pin)
GPIO Pins 30 (varies slightly by board version)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power consumption with multiple power modes
Dimensions Approximately 54 mm x 27 mm

Pin Configuration and Descriptions

The ESP32 Devkit V1 has a total of 30 GPIO pins, which can be configured for various functions. Below is a table summarizing the key pins and their descriptions:

Pin Function Description
VIN Power Input Accepts 7-12V input for powering the board.
3V3 3.3V Output Provides 3.3V output for external components.
GND Ground Ground connection.
EN Enable Resets the chip when pulled low.
GPIO0 Boot Mode Selection Used to enter bootloader mode during programming.
GPIO2 General Purpose I/O Can be used as a standard GPIO pin.
GPIO12-15 General Purpose I/O Configurable for ADC, PWM, or other functions.
GPIO34-39 Input Only These pins are input-only and cannot be used for output.
TX0/RX0 UART0 (Serial Communication) Default UART pins for serial communication.
SDA/SCL I2C Communication Default pins for I2C communication (GPIO21 for SDA, GPIO22 for SCL).
DAC1/DAC2 Digital-to-Analog Converter GPIO25 and GPIO26 can be used as DAC outputs.

Note: Not all GPIO pins support all functions. Refer to the ESP32 datasheet for detailed pin capabilities.

Usage Instructions

How to Use the ESP32 Devkit V1 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for programming and power.
    • Alternatively, use the VIN pin to supply 7-12V or the 3V3 pin for a regulated 3.3V input.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select "ESP32 Dev Module" from the Tools > Board menu.
    • Connect the board to your computer and select the appropriate COM port.
    • Write your code and upload it to the board.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins to prevent damage.
  • Boot Mode: To enter bootloader mode, hold down the "BOOT" button while pressing the "EN" button.
  • Power Consumption: Use the deep sleep mode to minimize power consumption in battery-powered applications.
  • Wi-Fi and Bluetooth Interference: Avoid placing the ESP32 near metal objects or other sources of interference to maintain strong wireless connectivity.

Example Code for Arduino IDE

Below is an example code to connect the ESP32 to a Wi-Fi network and print the IP address:

#include <WiFi.h> // Include the WiFi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a moment to stabilize the serial monitor

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start connecting to Wi-Fi

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Tip: Replace Your_SSID and Your_Password with your Wi-Fi credentials before uploading the code.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The ESP32 is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for your operating system.
  2. Upload fails with a timeout error:

    • Hold down the "BOOT" button while uploading the code.
    • Check that the correct COM port and board are selected in the Arduino IDE.
  3. Wi-Fi connection fails:

    • Verify the SSID and password in your code.
    • Ensure the Wi-Fi network is within range and not using unsupported security protocols.
  4. GPIO pins not working as expected:

    • Check if the pin is reserved for specific functions (e.g., boot mode).
    • Avoid using input-only pins (GPIO34-39) for output.

FAQs

  • Can I power the ESP32 with a 5V power bank?
    Yes, you can power the ESP32 via the USB port or the VIN pin with a 5V source.

  • Does the ESP32 support OTA (Over-the-Air) updates?
    Yes, the ESP32 supports OTA updates, allowing you to upload code wirelessly.

  • Can I use the ESP32 with 5V sensors?
    Use a level shifter to safely interface 5V sensors with the 3.3V GPIO pins of the ESP32.

  • How do I reset the ESP32?
    Press the "EN" button to reset the board.

By following this documentation, you can effectively use the ESP32 Devkit V1 for your projects and troubleshoot common issues with ease.
