How to Use Raspberry Pi 4B: Examples, Pinouts, and Specs

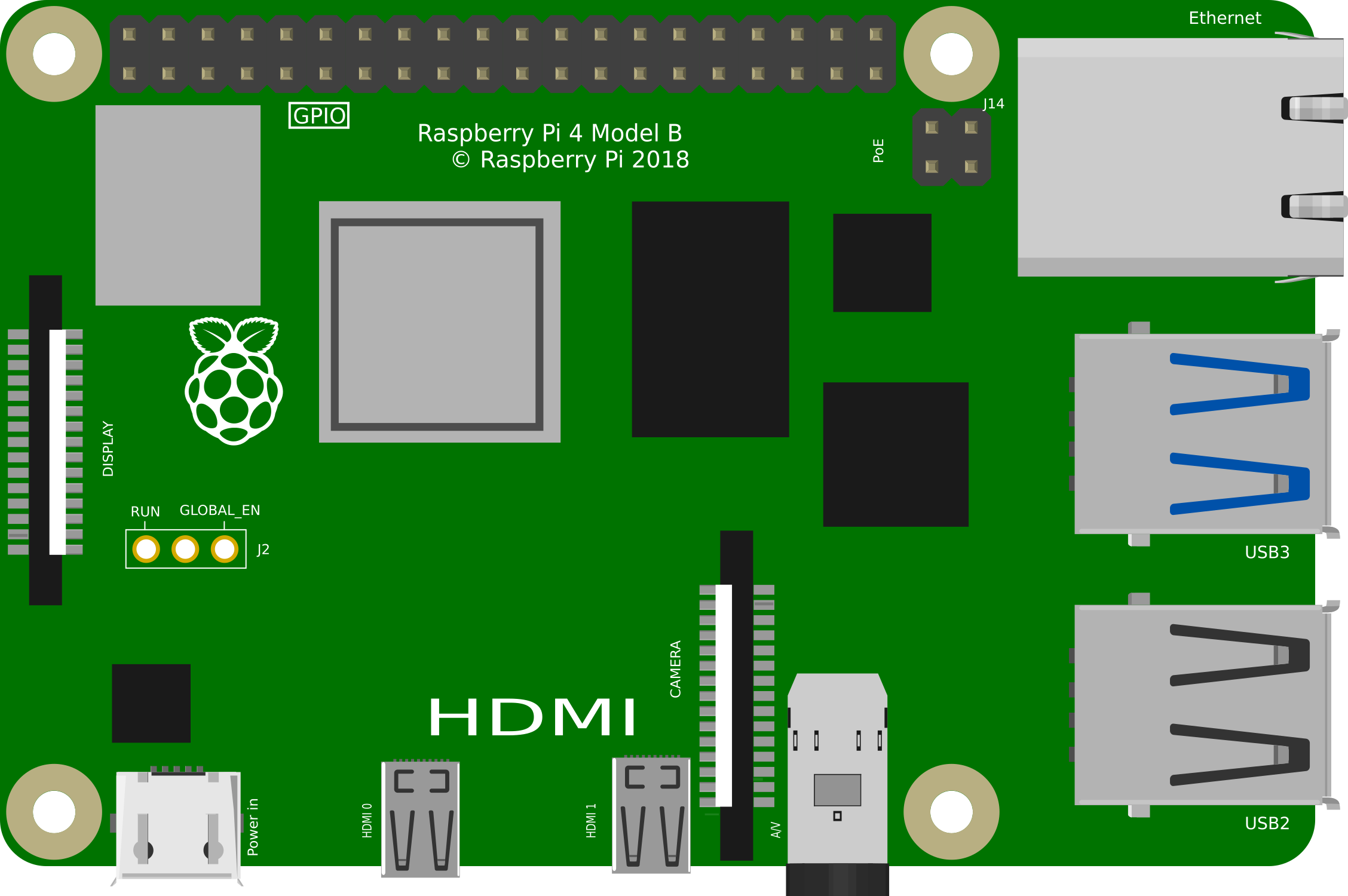

Image of Raspberry Pi 4B
Cirkit Designer LogoDesign with Raspberry Pi 4B in Cirkit Designer

Introduction

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core ARM Cortex-A72 processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and support for various operating systems. Its versatility makes it ideal for projects, learning, and prototyping in fields such as IoT, robotics, media centers, and more.

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT Projects: Acts as a hub for sensors and devices in smart home systems.
  • Media Centers: Used with software like Kodi to create home theater PCs.
  • Learning and Education: A tool for teaching programming, electronics, and Linux.
  • Prototyping: Ideal for testing and developing hardware and software solutions.
  • Robotics: Serves as the brain for robots, controlling motors and sensors.
  • Edge Computing: Performs lightweight computing tasks at the edge of networks.

Technical Specifications

Key Technical Details

Specification Details
Processor Quad-core ARM Cortex-A72 (64-bit) at 1.5GHz
RAM Options 2GB, 4GB, or 8GB LPDDR4
GPU VideoCore VI, supports OpenGL ES 3.0
Video Output Dual micro-HDMI ports, up to 4K resolution
USB Ports 2x USB 3.0, 2x USB 2.0
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin header, 3.3V logic
Storage MicroSD card slot, USB boot support
Power Supply 5V/3A via USB-C
Operating Systems Raspberry Pi OS, Ubuntu, and other Linux-based distributions

Pin Configuration and Descriptions

The Raspberry Pi 4B features a 40-pin GPIO header for interfacing with external components. Below is a summary of the pin configuration:

Pin Number Pin Name Function Voltage Level
1 3.3V Power Power supply 3.3V
2 5V Power Power supply 5V
3 GPIO2 (SDA1) I2C Data 3.3V
4 5V Power Power supply 5V
5 GPIO3 (SCL1) I2C Clock 3.3V
6 Ground Ground 0V
7 GPIO4 General-purpose I/O 3.3V
8 GPIO14 (TXD0) UART Transmit 3.3V
9 Ground Ground 0V
10 GPIO15 (RXD0) UART Receive 3.3V
... ... ... ...
39 Ground Ground 0V
40 GPIO21 General-purpose I/O 3.3V

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 4B in a Circuit

  1. Powering the Raspberry Pi: Use a 5V/3A USB-C power supply to power the board.
  2. Connecting Peripherals: Attach a monitor via micro-HDMI, a keyboard and mouse via USB, and a microSD card with the operating system installed.
  3. GPIO Usage: Connect external components (e.g., LEDs, sensors) to the GPIO pins. Use a breadboard and appropriate resistors to avoid damaging the board.
  4. Networking: Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

Important Considerations and Best Practices

  • Power Supply: Always use a high-quality 5V/3A power supply to ensure stable operation.
  • Static Protection: Handle the board with care to avoid static discharge, which can damage components.
  • Cooling: For intensive tasks, consider using a heatsink or fan to prevent overheating.
  • GPIO Safety: Never exceed the 3.3V logic level on GPIO pins to avoid permanent damage.
  • Software Updates: Regularly update the operating system and firmware for optimal performance and security.

Example: Blinking an LED with GPIO and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:


Import the GPIO library and time module

import RPi.GPIO as GPIO import time

Set up GPIO mode and pin

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO pin 17 as an output

try: while True: GPIO.output(17, GPIO.HIGH) # Turn on the LED time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn off the LED time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


Running the Code

  1. Connect an LED to GPIO pin 17 with a 330-ohm resistor in series.
  2. Save the code to a file (e.g., blink.py) on the Raspberry Pi.
  3. Run the script using the command: python3 blink.py.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system image.
    • Verify the power supply provides sufficient current (5V/3A).
    • Check for any loose connections.
  2. Wi-Fi connectivity issues:

    • Ensure the correct Wi-Fi credentials are entered.
    • Move closer to the router to improve signal strength.
    • Update the operating system to fix potential driver issues.
  3. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid running intensive tasks for extended periods without proper ventilation.
  4. GPIO pins not working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that the GPIO pins are not damaged by overvoltage or short circuits.

FAQs

  • Can I power the Raspberry Pi 4B via GPIO pins? Yes, you can power the board using the 5V and GND pins, but this bypasses the onboard voltage protection.

  • What operating systems are supported? The Raspberry Pi 4B supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions. Some third-party OS options include Windows IoT Core and RetroPie.

  • Can I connect multiple displays? Yes, the Raspberry Pi 4B supports dual displays via its two micro-HDMI ports, with resolutions up to 4K.

  • How do I enable SSH for remote access? Create an empty file named ssh (no extension) in the boot partition of the microSD card before booting the Raspberry Pi.

By following this documentation, users can effectively utilize the Raspberry Pi 4B for a variety of projects and applications.
