How to Use DY-SV8F Sound Module: Examples, Pinouts, and Specs

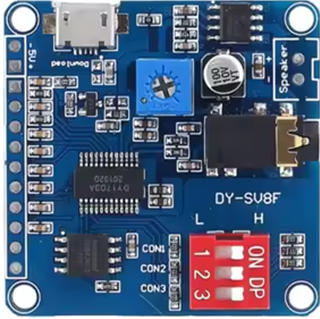

The DY-SV8F Sound Module is a compact and versatile audio playback device designed for projects requiring sound effects, voice prompts, or music playback. It supports multiple audio formats, such as MP3 and WAV, and can store sound files on a microSD card or internal flash memory. The module is easy to interface with microcontrollers, such as Arduino, and can be controlled via UART, GPIO, or AD key inputs.

• Voice prompts in automation systems
• Sound effects in interactive projects
• Audio playback in toys and models
• Alarm systems with custom sounds
• Educational and DIY electronics projects

The DY-SV8F Sound Module offers the following key technical details:

The DY-SV8F module has a 9-pin interface for power, control, and audio output. The pinout is as follows:

1. Power Supply: Connect the VCC pin to a 3.3V or 5.0V DC power source and the GND pin to ground.
2. Audio Output: Connect a speaker (4Ω or 8Ω) to the SPK+ and SPK- pins for audio playback.
3. Control Options:
   • UART Control: Connect the TX and RX pins to the corresponding UART pins on a microcontroller (e.g., Arduino).
   • GPIO Control: Use IO1 and IO2 pins to trigger specific sound files or functions.
   • AD Key Control: Use an external resistor network to trigger playback via analog input (not covered in this guide).
4. Storage: Insert a microSD card with preloaded audio files or use the internal flash memory to store sound files.

• Ensure the audio files are in MP3 or WAV format and named according to the module's requirements (e.g., "0001.mp3").
• Use a regulated power supply to avoid damaging the module.
• If using UART control, ensure the baud rate is set to 9600 bps (default).
• Avoid connecting a speaker with an impedance lower than 4Ω to prevent overloading the onboard amplifier.

Below is an example of how to control the DY-SV8F module using UART communication with an Arduino UNO:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial mySerial(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  mySerial.begin(9600); // Initialize UART communication at 9600 bps
  Serial.begin(9600);   // Initialize Serial Monitor for debugging

  delay(1000); // Wait for the module to initialize
  Serial.println("DY-SV8F Sound Module Test");

  playSound(1); // Play the first sound file (0001.mp3)
}

void loop() {
  // Add your main code here
}

// Function to send a play command to the DY-SV8F module
void playSound(uint8_t fileNumber) {
  mySerial.write(0xAA);       // Start byte
  mySerial.write(0x07);       // Command: Play file
  mySerial.write(0x02);       // Data length
  mySerial.write(0x00);       // High byte of file number
  mySerial.write(fileNumber); // Low byte of file number
  mySerial.write(0xAC + fileNumber); // Checksum (0xAA + 0x07 + 0x02 + fileNumber)
  Serial.println("Play command sent");
}

• Replace 0001.mp3 with the desired file name on the microSD card.
• Ensure the microSD card is formatted as FAT32 and contains valid audio files.

1. No Sound Output:

   • Ensure the speaker is properly connected to the SPK+ and SPK- pins.
   • Verify that the audio files are in the correct format (MP3 or WAV).
   • Check the power supply voltage (3.3V to 5.0V DC).

2. Module Not Responding to Commands:

   • Verify the UART connections (TX and RX) and ensure the baud rate is set to 9600 bps.
   • Check for loose or incorrect wiring.

3. Playback Stops Abruptly:

   • Ensure the microSD card is properly inserted and formatted as FAT32.
   • Check the audio file size and ensure it is compatible with the module.

Q: Can I use the DY-SV8F with a 3.3V microcontroller?
A: Yes, the module supports both 3.3V and 5.0V logic levels, making it compatible with most microcontrollers.

Q: How many audio files can the module store?
A: The module can store up to 255 audio files, depending on the storage capacity of the microSD card or internal flash.

Q: Can I control the volume of the audio output?
A: Yes, the volume can be adjusted via UART commands or GPIO inputs, depending on the control method used.

Q: What is the maximum speaker power supported?
A: The onboard amplifier supports up to 3W output power for a 4Ω speaker.

By following this documentation, you can effectively integrate the DY-SV8F Sound Module into your projects and troubleshoot common issues.
