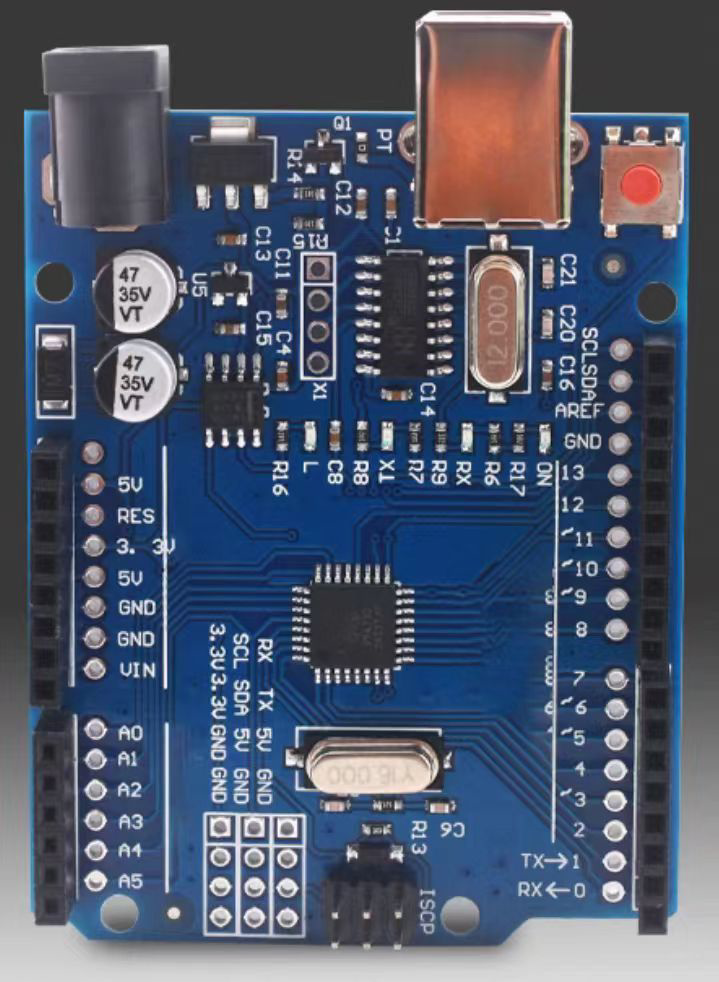

Image of Arduino uno R3 pro
Cirkit Designer LogoDesign with Arduino uno R3 pro in Cirkit Designer

Introduction

The Arduino Uno R3 Pro is a microcontroller board based on the ATmega328P. It features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a USB connection for programming, and a power jack for external power supply. This board is widely used for building interactive projects, prototypes, and educational purposes due to its simplicity, versatility, and extensive community support.

Explore Projects Built with Arduino uno R3 pro

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino uno R3 pro in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino uno R3 pro in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robotic Interface with LCD Feedback
Image of Copy of wheel: A project utilizing Arduino uno R3 pro in a practical application
This circuit features an Arduino Uno R3 as the central controller, interfaced with a voice recognition module for audio input commands, an Adafruit Mini Analog Thumbstick for manual control input, and multiple servos for actuation. The Arduino also connects to an I2C LCD 16x2 Screen for display output and an Infrared Proximity Sensor for distance measurement. The circuit is designed for interactive control of servos with both voice and joystick inputs, while providing visual feedback and proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3 Controlled Robotic Vehicle with Sensors and Actuators
Image of Line Follower: A project utilizing Arduino uno R3 pro in a practical application
This circuit is designed to control a robotic system with various sensors and actuators. It uses an Arduino Uno R3 as the central microcontroller to process signals from IR sensors and an ultrasonic sensor for object detection or distance measurement. The circuit also includes a motor driver to control four gearmotors, servos for precise movement control, and a power supply system with a rocker switch for on/off control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino uno R3 pro

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wheel: A project utilizing Arduino uno R3 pro in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit: A project utilizing Arduino uno R3 pro in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of wheel: A project utilizing Arduino uno R3 pro in a practical application
Arduino Uno R3-Based Voice-Controlled Robotic Interface with LCD Feedback
This circuit features an Arduino Uno R3 as the central controller, interfaced with a voice recognition module for audio input commands, an Adafruit Mini Analog Thumbstick for manual control input, and multiple servos for actuation. The Arduino also connects to an I2C LCD 16x2 Screen for display output and an Infrared Proximity Sensor for distance measurement. The circuit is designed for interactive control of servos with both voice and joystick inputs, while providing visual feedback and proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Line Follower: A project utilizing Arduino uno R3 pro in a practical application
Arduino Uno R3 Controlled Robotic Vehicle with Sensors and Actuators
This circuit is designed to control a robotic system with various sensors and actuators. It uses an Arduino Uno R3 as the central microcontroller to process signals from IR sensors and an ultrasonic sensor for object detection or distance measurement. The circuit also includes a motor driver to control four gearmotors, servos for precise movement control, and a power supply system with a rocker switch for on/off control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Sensor-based systems
  • LED control and lighting projects
  • Prototyping and testing circuits
  • Educational tools for learning programming and electronics

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm

Pin Configuration and Descriptions

Digital Pins

Pin Number Functionality Description
0 (RX) UART Receive Used for serial communication (input).
1 (TX) UART Transmit Used for serial communication (output).
2-13 General Purpose I/O Configurable as input or output.
3, 5, 6, 9, 10, 11 PWM Output Pulse Width Modulation capable pins.

Analog Pins

Pin Number Functionality Description
A0-A5 Analog Input Reads analog signals (0-5V).

Power Pins

Pin Name Functionality Description
VIN Input Voltage External power input (7-12V recommended).
5V Regulated 5V Output Powers external components.
3.3V Regulated 3.3V Output Powers low-voltage components.
GND Ground Common ground for the circuit.
RESET Reset Resets the microcontroller.

Usage Instructions

How to Use the Arduino Uno R3 Pro in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the power jack or VIN pin.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer and select the correct board ("Arduino Uno") and port in the IDE.
    • Write your code in the IDE and upload it to the board using the "Upload" button.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the current drawn by connected components does not exceed the pin's maximum rating (20 mA).

Important Considerations and Best Practices

  • Always check the voltage and current requirements of connected components to avoid damaging the board.
  • Use external power when driving high-power components like motors or LEDs.
  • Avoid short circuits by carefully wiring components and using a breadboard for prototyping.
  • Use pull-up or pull-down resistors for stable input signals on digital pins.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to digital pin 13.

// This code blinks an LED connected to pin 13 on the Arduino Uno R3 Pro.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino Uno.
  2. Code does not upload to the board:

    • Verify that the correct board ("Arduino Uno") is selected in the IDE.
    • Ensure no other program is using the COM port.
    • Press the RESET button on the board before uploading.
  3. Components are not working as expected:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Arduino's voltage and current ratings.
    • Use a multimeter to test for continuity and proper voltage levels.

FAQs

Q: Can I power the Arduino Uno R3 Pro with a battery?
A: Yes, you can use a 9V battery connected to the power jack or VIN pin. Ensure the voltage is within the recommended range (7-12V).

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when powered by an external adapter.

Q: Can I use the Arduino Uno R3 Pro for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers connected to the digital pins.

Q: How do I reset the board?
A: Press the RESET button on the board or connect the RESET pin to GND momentarily.

This concludes the documentation for the Arduino Uno R3 Pro.
