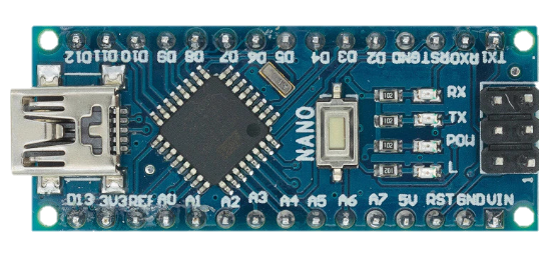

Image of arduino nanoDesign with arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for easy integration into a wide range of electronic projects, offering a small form factor without compromising functionality. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming and communication, and is fully compatible with the Arduino IDE. Its versatility and size make it ideal for prototyping, embedded systems, and space-constrained applications.

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback: A project utilizing arduino nano in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback

This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.

Open Project in Cirkit Designer
Image of Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration: A project utilizing arduino nano in a practical application
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration

This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The Arduino Nano is built to provide robust performance in a small package. Below are its key technical details:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano features a total of 30 pins, including power, digital, and analog pins. Below is a detailed pinout description:

Pin Type Description
VIN Power Input voltage to the board (7-12V).
GND Power Ground pins.
5V Power Regulated 5V output from the onboard regulator.
3.3V Power Regulated 3.3V output (limited to 50 mA).
A0-A7 Analog Input Analog input pins (10-bit resolution).
D0-D13 Digital I/O Digital input/output pins. D3, D5, D6, D9, D10, and D11 support PWM.
RX (D0) Digital I/O UART Receive pin for serial communication.
TX (D1) Digital I/O UART Transmit pin for serial communication.
RST Reset Resets the microcontroller when pulled LOW.
ICSP Programming In-Circuit Serial Programming header for flashing the microcontroller.

Usage Instructions

The Arduino Nano is straightforward to use and can be programmed using the Arduino IDE. Below are the steps to get started and important considerations:

Getting Started

  1. Install the Arduino IDE: Download and install the Arduino IDE from the official Arduino website.
  2. Connect the Nano: Use a Mini-B USB cable to connect the Arduino Nano to your computer.
  3. Select the Board and Port:
    • Open the Arduino IDE.
    • Go to Tools > Board and select "Arduino Nano."
    • Go to Tools > Port and select the appropriate COM port.
  4. Write and Upload Code:
    • Write your code in the Arduino IDE.
    • Click the "Upload" button to upload the code to the Nano.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This example blinks the onboard LED connected to pin D13.
// The LED will turn ON for 1 second and OFF for 1 second.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Important Considerations

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Arduino Nano is not recognized by the computer.

    • Solution: Ensure the correct USB drivers are installed. Try using a different USB cable or port.
  2. Problem: Code upload fails with an error.

    • Solution: Check that the correct board and port are selected in the Arduino IDE. If the issue persists, try selecting "Old Bootloader" under Tools > Processor.
  3. Problem: The board does not power on.

    • Solution: Verify the power source. Ensure the USB cable or external power supply is functioning correctly.
  4. Problem: Analog readings are unstable.

    • Solution: Use proper grounding and decoupling capacitors near the analog input pins to reduce noise.

FAQs

By following this documentation, you can effectively integrate the Arduino Nano into your projects and troubleshoot common issues with ease.
