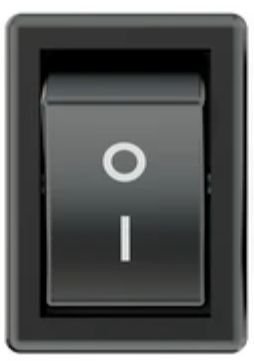

Image of switch
Cirkit Designer LogoDesign with switch in Cirkit Designer

Introduction

A switch is an electrical component that can open or close a circuit, allowing or interrupting the flow of current. It is one of the most fundamental components in electronics, used to control the operation of devices by manually or automatically toggling the flow of electricity. Switches come in various types, such as toggle switches, push-button switches, slide switches, and rotary switches, each suited for specific applications.

Explore Projects Built with switch

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Toggle Switch Controlled Lamp Circuit with Banana Sockets
Image of STAIRCASE: A project utilizing switch in a practical application
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
SPST Rocker Switch Array Circuit
Image of SWITCH CONNECTION: A project utilizing switch in a practical application
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Toggle Switch Circuit
Image of EXP. 7 E: A project utilizing switch in a practical application
This circuit consists of a toggle switch, a red LED, and a power source. The toggle switch controls the connection between the power source and the LED, allowing the LED to be turned on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Digital Logic State Indicator with Flip-Flops and Logic Gates
Image of 2-bit Gray Code Counter: A project utilizing switch in a practical application
This circuit is a digital logic system that uses a DIP switch to provide input to a network of flip-flops and logic gates, which process the input signals. The output of this processing is likely indicated by LEDs, which are connected through resistors to limit current. The circuit functions autonomously without a microcontroller, relying on the inherent properties of the digital components to perform its logic operations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with switch

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of STAIRCASE: A project utilizing switch in a practical application
Toggle Switch Controlled Lamp Circuit with Banana Sockets
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SWITCH CONNECTION: A project utilizing switch in a practical application
SPST Rocker Switch Array Circuit
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP. 7 E: A project utilizing switch in a practical application
Battery-Powered LED Toggle Switch Circuit
This circuit consists of a toggle switch, a red LED, and a power source. The toggle switch controls the connection between the power source and the LED, allowing the LED to be turned on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 2-bit Gray Code Counter: A project utilizing switch in a practical application
Digital Logic State Indicator with Flip-Flops and Logic Gates
This circuit is a digital logic system that uses a DIP switch to provide input to a network of flip-flops and logic gates, which process the input signals. The output of this processing is likely indicated by LEDs, which are connected through resistors to limit current. The circuit functions autonomously without a microcontroller, relying on the inherent properties of the digital components to perform its logic operations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Turning devices on or off (e.g., lights, appliances, and machinery)
  • Mode selection in electronic devices
  • Resetting circuits or systems
  • User input in control panels and interfaces
  • Safety mechanisms in electrical systems

Technical Specifications

Switches vary widely in their specifications depending on the type and intended application. Below are general specifications for a typical mechanical switch:

Parameter Description
Voltage Rating Typically ranges from 3V to 250V, depending on the switch type and application.
Current Rating Commonly ranges from 0.1A to 15A or higher for industrial switches.
Contact Resistance Usually less than 50 mΩ for low-resistance switches.
Insulation Resistance Greater than 100 MΩ at 500V DC (typical).
Mechanical Lifespan 10,000 to 1,000,000 actuations, depending on the switch type.
Operating Temperature -40°C to +85°C for most switches.

Pin Configuration and Descriptions

The pin configuration of a switch depends on its type. Below is an example for a Single Pole Single Throw (SPST) switch:

Pin Name Description
Pin 1 Input terminal: Connects to the power source or signal input.
Pin 2 Output terminal: Connects to the load or circuit to be controlled.

For a Double Pole Double Throw (DPDT) switch, the pin configuration is as follows:

Pin Name Description
Pin 1, Pin 4 Input terminals for the two poles.
Pin 2, Pin 5 Output terminals for the first throw of each pole.
Pin 3, Pin 6 Output terminals for the second throw of each pole.

Usage Instructions

How to Use a Switch in a Circuit

  1. Identify the Switch Type: Determine the type of switch (e.g., SPST, SPDT, DPDT) and its pin configuration.
  2. Connect the Input: Attach the input terminal(s) of the switch to the power source or signal line.
  3. Connect the Output: Connect the output terminal(s) to the load or circuit you want to control.
  4. Secure the Connections: Ensure all connections are secure to avoid loose contacts or short circuits.
  5. Test the Circuit: Toggle the switch to verify that it properly opens and closes the circuit.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Always ensure the switch's voltage and current ratings exceed the requirements of your circuit to prevent overheating or damage.
  • Debouncing: Mechanical switches may produce noise or "bouncing" when toggled. Use a capacitor or software debouncing techniques to eliminate this issue in sensitive circuits.
  • Mounting: Securely mount the switch to prevent accidental toggling or damage.
  • Safety: For high-voltage or high-current applications, use switches with proper insulation and safety certifications.

Example: Connecting a Switch to an Arduino UNO

Below is an example of how to use a push-button switch with an Arduino UNO to control an LED:

// Define pin numbers
const int switchPin = 2;  // Pin connected to the switch
const int ledPin = 13;    // Pin connected to the LED

void setup() {
  pinMode(switchPin, INPUT_PULLUP); // Set switch pin as input with internal pull-up resistor
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  int switchState = digitalRead(switchPin); // Read the state of the switch

  if (switchState == LOW) { // If the switch is pressed (LOW due to pull-up resistor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Troubleshooting and FAQs

Common Issues

  1. Switch Not Working:

    • Cause: Loose or incorrect wiring.
    • Solution: Double-check all connections and ensure the switch is properly wired.
  2. Switch Generates Noise or Unstable Signals:

    • Cause: Mechanical bouncing.
    • Solution: Use a capacitor for hardware debouncing or implement software debouncing in your code.
  3. Switch Overheats:

    • Cause: Exceeding the voltage or current rating.
    • Solution: Replace the switch with one that has a higher rating.
  4. LED or Load Does Not Respond:

    • Cause: Faulty switch or incorrect pin configuration.
    • Solution: Test the switch with a multimeter and verify the pin configuration.

FAQs

Q: Can I use a switch to control AC devices?
A: Yes, but ensure the switch is rated for AC voltage and current. For high-power AC devices, use a relay or contactor controlled by the switch.

Q: What is the difference between SPST and SPDT switches?
A: SPST (Single Pole Single Throw) switches have one input and one output, functioning as a simple on/off switch. SPDT (Single Pole Double Throw) switches have one input and two outputs, allowing the input to connect to one of two outputs.

Q: How do I debounce a switch in software?
A: Implement a delay or use a state-change detection algorithm in your code to filter out rapid toggling caused by mechanical bouncing.

Q: Can I use a switch with a microcontroller?
A: Yes, switches are commonly used with microcontrollers. Use a pull-up or pull-down resistor to ensure stable input readings.
