How to Use DC Circuit breaker: Examples, Pinouts, and Specs

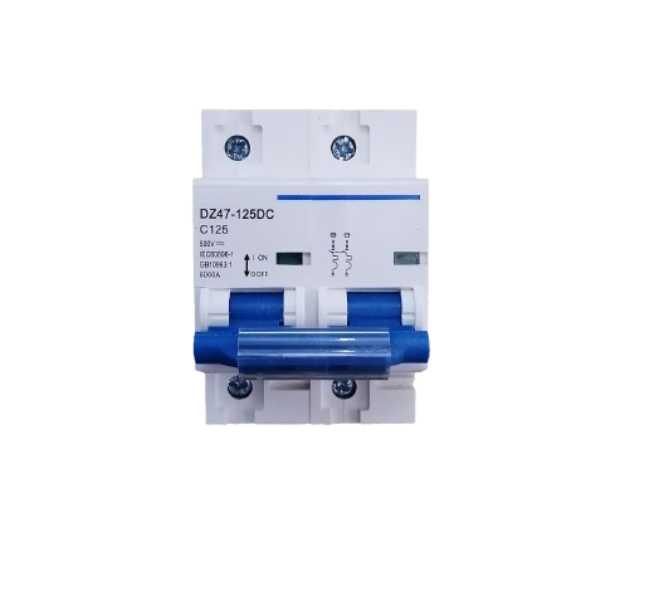

Image of DC Circuit breaker
Cirkit Designer LogoDesign with DC Circuit breaker in Cirkit Designer

Introduction

A DC circuit breaker is a protective device designed to automatically interrupt the flow of direct current (DC) in an electrical circuit. It safeguards electrical systems by preventing damage caused by overloads, short circuits, or other electrical faults. Unlike fuses, which need to be replaced after tripping, circuit breakers can be reset and reused, making them a reliable and cost-effective solution for circuit protection.

Explore Projects Built with DC Circuit breaker

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
AC Bulb Control Circuit with Rocker Switches and Circuit Breaker
Image of schematic: A project utilizing DC Circuit breaker in a practical application
This circuit is designed to control multiple AC bulbs using two rocker switches and a circuit breaker for safety. The circuit is powered by a 220V AC source, with the circuit breaker providing protection and the rocker switches allowing selective control of the connected bulbs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of POWER SUPPLY: A project utilizing DC Circuit breaker in a practical application
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with Safety Circuit Breakers and ATS
Image of ONION: A project utilizing DC Circuit breaker in a practical application
This circuit is designed to connect a solar panel to a 12V battery system through a charge controller, ensuring safe charging and power management. Circuit breakers are used for overcurrent protection in the connections between the solar panel, battery, and power inverter. The power inverter is connected to an Automatic Transfer Switch (ATS), which likely serves to switch between power sources or output the inverter's AC power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Dual Source Automatic Transfer Switch System
Image of Ats SCHEMATIC: A project utilizing DC Circuit breaker in a practical application
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC Circuit breaker

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of schematic: A project utilizing DC Circuit breaker in a practical application
AC Bulb Control Circuit with Rocker Switches and Circuit Breaker
This circuit is designed to control multiple AC bulbs using two rocker switches and a circuit breaker for safety. The circuit is powered by a 220V AC source, with the circuit breaker providing protection and the rocker switches allowing selective control of the connected bulbs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY: A project utilizing DC Circuit breaker in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ONION: A project utilizing DC Circuit breaker in a practical application
Solar-Powered Battery Charging System with Safety Circuit Breakers and ATS
This circuit is designed to connect a solar panel to a 12V battery system through a charge controller, ensuring safe charging and power management. Circuit breakers are used for overcurrent protection in the connections between the solar panel, battery, and power inverter. The power inverter is connected to an Automatic Transfer Switch (ATS), which likely serves to switch between power sources or output the inverter's AC power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ats SCHEMATIC: A project utilizing DC Circuit breaker in a practical application
Solar-Powered Dual Source Automatic Transfer Switch System
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Solar power systems to protect photovoltaic (PV) arrays and batteries.
  • Electric vehicles (EVs) to safeguard high-voltage DC circuits.
  • Industrial machinery and equipment powered by DC systems.
  • Telecommunications systems to protect sensitive electronic components.
  • Battery banks and energy storage systems.

Technical Specifications

Below are the general technical specifications for a DC circuit breaker. Note that specific values may vary depending on the model and manufacturer.

Key Technical Details

  • Rated Voltage: Typically ranges from 12V DC to 1000V DC.
  • Rated Current: Commonly available in ratings from 1A to 1000A.
  • Breaking Capacity: Varies between 1kA to 50kA, depending on the application.
  • Trip Mechanism: Thermal, magnetic, or a combination of both.
  • Poles: Single-pole, double-pole, or multi-pole configurations.
  • Operating Temperature: -20°C to +70°C (varies by model).
  • Reset Mechanism: Manual or automatic reset options.

Pin Configuration and Descriptions

DC circuit breakers typically have terminals for input and output connections. Below is a general description of the terminal configuration:

Terminal Description
Line (Input) Connects to the positive terminal of the DC power source.
Load (Output) Connects to the positive terminal of the load (e.g., motor, battery, or device).
Ground (Optional) Some models include a ground terminal for additional safety.

Usage Instructions

How to Use the Component in a Circuit

  1. Determine the Ratings: Select a DC circuit breaker with appropriate voltage and current ratings for your circuit. Ensure the breaking capacity is sufficient to handle potential fault currents.
  2. Connect the Input: Attach the positive terminal of the DC power source to the "Line" terminal of the circuit breaker.
  3. Connect the Output: Connect the "Load" terminal of the circuit breaker to the positive terminal of the load.
  4. Secure Connections: Use appropriate connectors or lugs to ensure secure and reliable connections.
  5. Test the Circuit: Power on the system and verify that the circuit breaker operates correctly under normal conditions. Test the tripping mechanism by simulating an overload or short circuit.

Important Considerations and Best Practices

  • Polarity: Ensure correct polarity when connecting the circuit breaker, as DC systems are polarity-sensitive.
  • Mounting: Install the circuit breaker in a well-ventilated area to prevent overheating.
  • Maintenance: Periodically inspect the circuit breaker for signs of wear, corrosion, or damage.
  • Compatibility: Verify that the circuit breaker is compatible with the system's voltage and current requirements.
  • Safety: Always disconnect the power source before installing or servicing the circuit breaker.

Example: Using a DC Circuit Breaker with an Arduino UNO

While DC circuit breakers are not directly interfaced with microcontrollers like the Arduino UNO, they can be used to protect circuits powered by the Arduino. For example, in a solar-powered Arduino project, a DC circuit breaker can safeguard the system from overcurrent conditions.

// Example: Monitoring a DC circuit breaker's status with Arduino
// This code assumes the circuit breaker has an auxiliary contact for status monitoring.

const int breakerStatusPin = 2; // Pin connected to the auxiliary contact of the breaker
const int ledPin = 13;          // Built-in LED to indicate breaker status

void setup() {
  pinMode(breakerStatusPin, INPUT_PULLUP); // Configure the status pin as input
  pinMode(ledPin, OUTPUT);                 // Configure the LED pin as output
}

void loop() {
  int breakerStatus = digitalRead(breakerStatusPin); // Read the breaker's status

  if (breakerStatus == LOW) {
    // If the auxiliary contact is closed, the breaker is ON
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    // If the auxiliary contact is open, the breaker is OFF
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Circuit Breaker Does Not Trip:

    • Cause: Incorrect current or voltage rating.
    • Solution: Verify that the circuit breaker matches the system's specifications.
  2. Frequent Tripping:

    • Cause: Overloaded circuit or short circuit.
    • Solution: Reduce the load or inspect the circuit for faults.
  3. Overheating:

    • Cause: Poor ventilation or loose connections.
    • Solution: Ensure proper mounting and secure all connections.
  4. Breaker Fails to Reset:

    • Cause: Internal damage or persistent fault in the circuit.
    • Solution: Inspect the breaker for damage and resolve any circuit issues.

Solutions and Tips for Troubleshooting

  • Use a multimeter to check for continuity and verify proper connections.
  • Test the circuit breaker in a controlled environment to ensure it operates as expected.
  • Consult the manufacturer's datasheet for specific troubleshooting guidelines.

By following this documentation, users can effectively integrate and maintain DC circuit breakers in their electrical systems, ensuring safety and reliability.
