How to Use MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]): Examples, Pinouts, and Specs

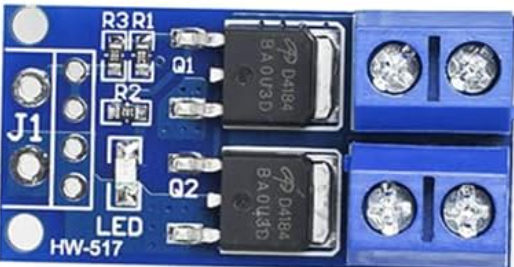

Image of MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max])
Cirkit Designer LogoDesign with MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in Cirkit Designer

Introduction

The MOSFET Trigger Switch by Teyleten Robot is a versatile electronic component designed for efficient switching and control of electrical devices. It leverages a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) to enable high-speed switching and pulse-width modulation (PWM) control. This component operates within a voltage range of 5 to 30 volts, supports a continuous current of 15 amps, and can handle a peak current of 30 amps.

Explore Projects Built with MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max])

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Dual DC Motor Control Circuit with Speed Regulation and Indicator Lamp
Image of egg peeling machine: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
This circuit includes a 12V 200Ah battery that powers a water pump and two DC motors, each controlled by a separate 12v~40v 10A PWM DC motor speed controller. A rocker switch (SPST) is used to control the power flow to the water pump and a pilot lamp indicates when the pump is powered. The DC motors' speed can be adjusted by the PWM controllers, and wire connectors are used to organize the connections between components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-POE-ISO Wi-Fi Controlled 4-Channel Relay Module
Image of ESP32-POE-ISO 4Channel Relay: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
This circuit features an ESP32-POE-ISO microcontroller connected to a 4-channel 30A 5V relay module. The ESP32 controls the relay channels via its GPIO pins, allowing for the switching of high-power devices through the relay module.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V PWM-Controlled Water Pump System
Image of moter speed controller: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
This circuit is designed to control the speed of a water pump using a PWM DC motor speed controller. The 12V5Ah battery provides power to the speed controller, which in turn regulates the power supplied to the water pump, allowing for adjustable flow rates. There is no microcontroller code provided, indicating that the speed control is likely adjusted manually via the PWM controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Mosfet Switch with Power Supply and Diode Protection
Image of me3902stuff: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
This circuit uses an Arduino UNO to control a MOSFET, which in turn regulates the current through a diode and a 15-ohm resistor. The Arduino outputs a signal to the gate of the MOSFET via a 10k-ohm resistor, allowing the MOSFET to switch the power supplied by an external power source to the diode and resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max])

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of egg peeling machine: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
Dual DC Motor Control Circuit with Speed Regulation and Indicator Lamp
This circuit includes a 12V 200Ah battery that powers a water pump and two DC motors, each controlled by a separate 12v~40v 10A PWM DC motor speed controller. A rocker switch (SPST) is used to control the power flow to the water pump and a pilot lamp indicates when the pump is powered. The DC motors' speed can be adjusted by the PWM controllers, and wire connectors are used to organize the connections between components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32-POE-ISO 4Channel Relay: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
ESP32-POE-ISO Wi-Fi Controlled 4-Channel Relay Module
This circuit features an ESP32-POE-ISO microcontroller connected to a 4-channel 30A 5V relay module. The ESP32 controls the relay channels via its GPIO pins, allowing for the switching of high-power devices through the relay module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of moter speed controller: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
12V PWM-Controlled Water Pump System
This circuit is designed to control the speed of a water pump using a PWM DC motor speed controller. The 12V5Ah battery provides power to the speed controller, which in turn regulates the power supplied to the water pump, allowing for adjustable flow rates. There is no microcontroller code provided, indicating that the speed control is likely adjusted manually via the PWM controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of me3902stuff: A project utilizing MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max]) in a practical application
Arduino UNO Controlled Mosfet Switch with Power Supply and Diode Protection
This circuit uses an Arduino UNO to control a MOSFET, which in turn regulates the current through a diode and a 15-ohm resistor. The Arduino outputs a signal to the gate of the MOSFET via a 10k-ohm resistor, allowing the MOSFET to switch the power supplied by an external power source to the diode and resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Motor speed control
  • LED dimming
  • Power management in battery-operated devices
  • High-current switching in automation systems
  • Integration with microcontrollers (e.g., Arduino, Raspberry Pi)

This component is ideal for projects requiring precise control of high-current loads.


Technical Specifications

Key Technical Details:

Parameter Value
Operating Voltage Range 5V to 30V
Continuous Current 15A
Peak Current 30A
Control Signal Voltage 3.3V to 12V (logic level)
PWM Frequency Range Up to 20 kHz
Dimensions 33mm x 16mm x 10mm
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions:

Pin Name Description
VIN Input voltage (5V to 30V) for powering the load.
VOUT Output voltage to the load.
GND Ground connection for the circuit.
PWM/CTRL Control pin for PWM or logic-level signal (3.3V to 12V).

Usage Instructions

How to Use the Component in a Circuit:

  1. Power Supply: Connect the VIN pin to the positive terminal of your power source (5V to 30V) and the GND pin to the negative terminal.
  2. Load Connection: Attach the load (e.g., motor, LED strip) between the VOUT pin and the ground of the power source.
  3. Control Signal: Connect the PWM/CTRL pin to a microcontroller or other control device capable of providing a logic-level signal (3.3V to 12V). This pin can accept PWM signals for variable control.
  4. Verify Connections: Double-check all connections to ensure proper polarity and secure wiring.
  5. Operation: Apply a control signal to the PWM/CTRL pin to switch the load on/off or modulate its power.

Important Considerations:

  • Ensure the load does not exceed the 15A continuous current rating. For short bursts, the component can handle up to 30A.
  • Use appropriate heat dissipation methods (e.g., heatsinks) if operating near the maximum current rating.
  • Avoid reverse polarity connections to prevent damage to the component.
  • For PWM control, ensure the frequency does not exceed 20 kHz for optimal performance.

Example: Using with Arduino UNO

Below is an example of how to use the MOSFET Trigger Switch with an Arduino UNO to control an LED strip using PWM.

// Define the PWM pin connected to the MOSFET Trigger Switch
const int pwmPin = 9; // Pin 9 on Arduino UNO supports PWM output

void setup() {
  pinMode(pwmPin, OUTPUT); // Set the PWM pin as an output
}

void loop() {
  // Gradually increase brightness
  for (int dutyCycle = 0; dutyCycle <= 255; dutyCycle++) {
    analogWrite(pwmPin, dutyCycle); // Write PWM signal to the MOSFET
    delay(10); // Small delay for smooth transition
  }

  // Gradually decrease brightness
  for (int dutyCycle = 255; dutyCycle >= 0; dutyCycle--) {
    analogWrite(pwmPin, dutyCycle); // Write PWM signal to the MOSFET
    delay(10); // Small delay for smooth transition
  }
}

Note: Ensure the Arduino's ground is connected to the GND pin of the MOSFET Trigger Switch.


Troubleshooting and FAQs

Common Issues:

  1. Load Not Turning On:

    • Verify that the VIN and GND connections are correct.
    • Ensure the control signal voltage is within the acceptable range (3.3V to 12V).
    • Check if the load exceeds the current rating of the MOSFET Trigger Switch.
  2. Overheating:

    • Ensure the load current does not exceed 15A continuously.
    • Use a heatsink or active cooling if operating near the maximum current rating.
  3. PWM Signal Not Working:

    • Confirm that the PWM frequency is within the supported range (up to 20 kHz).
    • Check the microcontroller's PWM pin configuration and ensure it is functioning correctly.

FAQs:

Q1: Can I use this component with a 3.3V microcontroller like ESP32?
A1: Yes, the PWM/CTRL pin supports logic-level signals as low as 3.3V.

Q2: What happens if I exceed the 30A peak current?
A2: Exceeding the peak current may damage the MOSFET or cause the component to overheat. Always ensure the load stays within the specified limits.

Q3: Can I use this switch for AC loads?
A3: No, this component is designed for DC loads only. Using it with AC loads may result in malfunction or damage.

Q4: Is it necessary to use a heatsink?
A4: A heatsink is recommended if the load current approaches the upper limit of 15A continuous or 30A peak.


This documentation provides all the necessary details to effectively use the Teyleten Robot MOSFET Trigger Switch in your projects. For further assistance, refer to the manufacturer's datasheet or contact technical support.
