How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

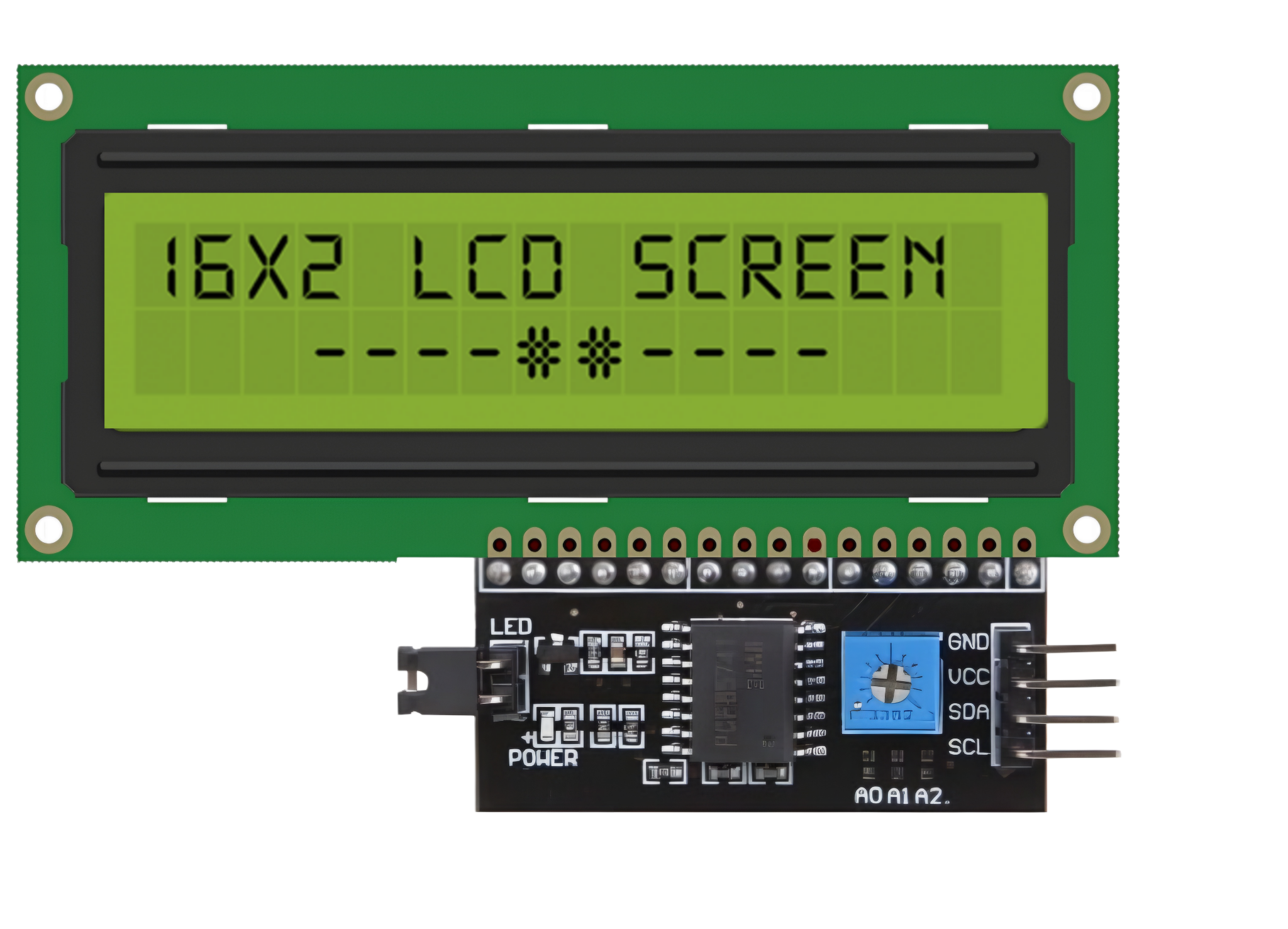

The LCD 16x2 (1602A-I2C) is a versatile and widely used Liquid Crystal Display module capable of displaying 16 characters per line across 2 lines. It features an integrated I2C (Inter-Integrated Circuit) interface, which simplifies communication with microcontrollers by reducing the number of required pins. This makes it an ideal choice for projects where pin availability is limited or where simplicity is desired.

• Microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• User interfaces for embedded systems
• Data display for sensors and IoT devices
• Educational and prototyping purposes
• Home automation systems

The following table outlines the key technical details of the 1602A-I2C module:

The 1602A-I2C module uses a 4-pin I2C interface for communication. Below is the pin configuration:

1. Connect the Pins:

   • Connect the GND pin to the ground of your microcontroller.
   • Connect the VCC pin to the 5V power supply of your microcontroller.
   • Connect the SDA pin to the I2C data pin of your microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the I2C clock pin of your microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • For Arduino, install the LiquidCrystal_I2C library from the Arduino Library Manager.

3. Write and Upload Code:

   • Use the example code below to initialize and display text on the LCD.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Initialize the LCD with I2C address 0x27 and dimensions 16x2
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin(); // Initialize the LCD
  lcd.backlight(); // Turn on the backlight
  lcd.setCursor(0, 0); // Set cursor to the first row, first column
  lcd.print("Hello, World!"); // Display text on the first row
  lcd.setCursor(0, 1); // Set cursor to the second row, first column
  lcd.print("LCD 16x2 I2C"); // Display text on the second row
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: The default I2C address is typically 0x27, but it may vary depending on the module. Use an I2C scanner sketch to detect the correct address if needed.
• Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: Some modules include a potentiometer for adjusting the contrast. If the text is not visible, adjust the potentiometer.
• Backlight Control: Use the lcd.backlight() and lcd.noBacklight() functions to control the backlight programmatically.

1. No Display or Blank Screen:

   • Verify the wiring connections, especially the SDA and SCL pins.
   • Check the power supply voltage (should be 5V).
   • Adjust the contrast potentiometer if available.

2. Incorrect or Garbled Characters:

   • Ensure the correct I2C address is used in the code.
   • Verify that the LiquidCrystal_I2C library is installed and up to date.

3. Backlight Not Working:

   • Check the backlight control in the code (lcd.backlight()).
   • Inspect the module for any physical damage to the backlight circuit.

4. I2C Address Not Detected:

   • Use an I2C scanner sketch to confirm the module's address.
   • Ensure the SDA and SCL pins are correctly connected to the microcontroller.

Q1: Can I use the LCD 16x2 I2C module with a 3.3V microcontroller?
A1: While the module is designed for 5V operation, some modules may work with 3.3V logic. However, it is recommended to use a level shifter for reliable communication.

Q2: How do I change the I2C address of the module?
A2: The I2C address can typically be changed by soldering or desoldering jumpers on the module. Refer to the module's datasheet for specific instructions.

Q3: Can I connect multiple LCD modules to the same I2C bus?
A3: Yes, but each module must have a unique I2C address. Modify the address of additional modules as needed.

Q4: Why is the text not aligned properly on the display?
A4: Ensure the lcd.setCursor() function is used correctly to position the text on the desired row and column.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 I2C (1602A-I2C) module in your projects.
