How to Use BMP280: Examples, Pinouts, and Specs

The BMP280, manufactured by Bosch (Part ID: BMP280_V01), is a high-precision digital barometric pressure sensor designed for a wide range of applications. It measures both atmospheric pressure and temperature, making it ideal for environmental monitoring, altitude measurement, and weather forecasting. The BMP280 is widely used in IoT devices, drones, GPS navigation systems, and portable weather stations due to its compact size, low power consumption, and high accuracy.

• Weather stations for atmospheric pressure and temperature monitoring
• Altitude measurement in drones and aviation systems
• GPS enhancement for elevation data
• IoT devices for environmental sensing
• Wearable devices for fitness and health tracking

The BMP280 is a highly integrated sensor with the following key specifications:

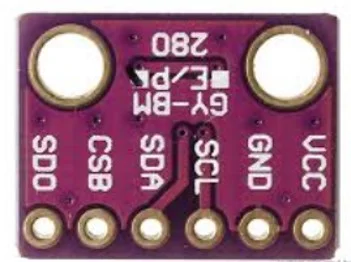

The BMP280 has 8 pins, as described in the table below:

1. Power Supply: Connect the VDD pin to a 3.3V power source and the GND pin to ground.
2. Communication Interface:
   • For I²C: Connect the SCL pin to the I²C clock line and the SDA pin to the I²C data line. Use a pull-up resistor (typically 4.7 kΩ) on both lines.
   • For SPI: Connect the SCL pin to the SPI clock, SDA to SPI data input, SDO to SPI data output, and CSB to the chip select line.
3. I²C Address Selection: The SDO pin determines the I²C address:
   • Connect SDO to GND for address 0x76.
   • Connect SDO to VDD for address 0x77.

• Use decoupling capacitors (e.g., 0.1 µF) near the VDD pin to reduce noise.
• Ensure the operating voltage matches the sensor's specifications to avoid damage.
• Avoid exposing the sensor to water or dust, as it may affect accuracy.

Below is an example of how to interface the BMP280 with an Arduino UNO using the I²C protocol. This code uses the Adafruit BMP280 library.

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BMP280.h>

// Create an instance of the BMP280 sensor
Adafruit_BMP280 bmp;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  if (!bmp.begin(0x76)) {
    // Initialize BMP280 with I²C address 0x76
    Serial.println("Could not find a valid BMP280 sensor, check wiring!");
    while (1); // Halt execution if sensor is not found
  }
  bmp.setSampling(Adafruit_BMP280::MODE_NORMAL,
                  Adafruit_BMP280::SAMPLING_X2,   // Temperature oversampling
                  Adafruit_BMP280::SAMPLING_X16,  // Pressure oversampling
                  Adafruit_BMP280::FILTER_X16,    // Filtering
                  Adafruit_BMP280::STANDBY_MS_500); // Standby time
}

void loop() {
  Serial.print("Temperature = ");
  Serial.print(bmp.readTemperature()); // Read and print temperature
  Serial.println(" *C");

  Serial.print("Pressure = ");
  Serial.print(bmp.readPressure() / 100.0F); // Convert pressure to hPa
  Serial.println(" hPa");

  Serial.print("Approx. Altitude = ");
  Serial.print(bmp.readAltitude(1013.25));
  // Calculate altitude assuming sea level pressure is 1013.25 hPa
  Serial.println(" m");

  delay(2000); // Wait 2 seconds before the next reading
}

• Calibrate the sensor for your specific environment to improve accuracy.
• Use appropriate pull-up resistors for I²C communication.
• Avoid long wires for I²C or SPI connections to minimize signal degradation.

1. Sensor Not Detected:

   • Ensure the wiring is correct and matches the selected communication protocol.
   • Verify the I²C address (default is 0x76 unless SDO is connected to VDD).

2. Incorrect Readings:

   • Check for proper power supply voltage and stable connections.
   • Ensure the sensor is not exposed to extreme environmental conditions.

3. Communication Errors:

   • Verify pull-up resistors are used for I²C lines.
   • Check the clock speed of the microcontroller and ensure it is compatible with the BMP280.

Q: Can the BMP280 measure altitude directly?
A: The BMP280 calculates altitude based on atmospheric pressure and a reference sea-level pressure. You can use the readAltitude() function in the Adafruit library for this purpose.

Q: What is the difference between the BMP280 and BME280?
A: The BMP280 measures pressure and temperature, while the BME280 also includes humidity sensing.

Q: Can the BMP280 operate at 5V?
A: No, the BMP280 operates at a maximum voltage of 3.6V. Use a level shifter if interfacing with a 5V system.

Q: How do I improve measurement accuracy?
A: Use the sensor in a stable environment, avoid rapid temperature changes, and enable oversampling in the configuration.

By following this documentation, you can effectively integrate the BMP280 into your projects for accurate pressure and temperature measurements.
