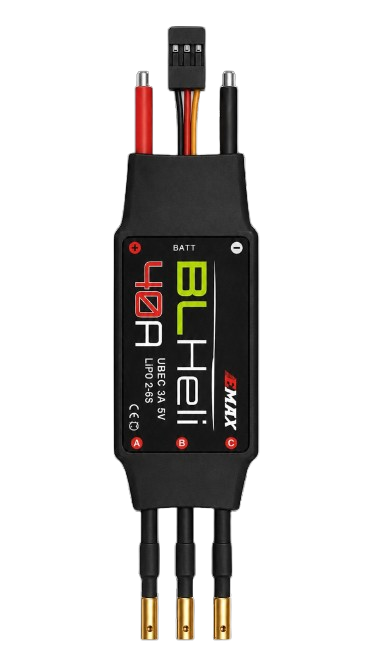

Image of ESC
Cirkit Designer LogoDesign with ESC in Cirkit Designer

Introduction

An Electronic Speed Controller (ESC) is a critical component used to regulate the speed, direction, and braking of an electric motor. It achieves this by adjusting the power supplied to the motor, typically through Pulse Width Modulation (PWM). ESCs are widely used in remote-controlled vehicles, drones, electric skateboards, and other applications requiring precise motor control. They are essential for ensuring smooth operation and efficient power delivery.

Explore Projects Built with ESC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Quadcopter BLDC Motor Control System with Radio Receiver
Image of rc car: A project utilizing ESC in a practical application
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered ESP32-Based Remote Control and Communication System
Image of Autonomous Cargo-Ship Project: A project utilizing ESC in a practical application
This circuit is designed to control a brushless motor via an Electronic Speed Controller (ESC), which receives power from a 12v battery managed by a Charge Controller connected to a solar panel. The ESC is interfaced with an ESP32 Devkit V1 microcontroller for signal control, and the circuit includes a SIM800L GSM module and a LoRa Ra-02 SX1278 module for communication purposes. Additional components include an HC-SR04 Ultrasonic Sensor for distance measurement, an MG996R servo, and a 1 Channel 5V Relay Module for switching applications, all powered by a step-down module that regulates voltage from the charge controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Home Automation System with Servo Motors and Ultrasonic Sensor
Image of Comms 2: Centree: A project utilizing ESC in a practical application
This circuit features an ESP32 microcontroller interfacing with multiple peripherals including three servos, an ultrasonic sensor, an OLED display, a membrane keypad, and several reed switches. The ESP32 controls the servos and reads inputs from the ultrasonic sensor, keypad, and reed switches, while also driving the OLED display to provide visual feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Quadcopter with GPS and Wireless Communication
Image of Drone : A project utilizing ESC in a practical application
This circuit appears to be a control system for a quadcopter or similar multirotor aircraft, featuring an Arduino Pro Mini as the central microcontroller. It includes four Electronic Speed Controllers (ESCs) connected to four brushless motors, a MPU-6050 for motion sensing, a GPS module for positioning, and an NRF24L01 module for wireless communication. The ESCs receive power from a Lipo battery and control signals from the Arduino to manage the speed of the motors, while the Arduino communicates with the GPS and NRF24L01 for navigation and remote control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of rc car: A project utilizing ESC in a practical application
Quadcopter BLDC Motor Control System with Radio Receiver
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomous Cargo-Ship Project: A project utilizing ESC in a practical application
Solar-Powered ESP32-Based Remote Control and Communication System
This circuit is designed to control a brushless motor via an Electronic Speed Controller (ESC), which receives power from a 12v battery managed by a Charge Controller connected to a solar panel. The ESC is interfaced with an ESP32 Devkit V1 microcontroller for signal control, and the circuit includes a SIM800L GSM module and a LoRa Ra-02 SX1278 module for communication purposes. Additional components include an HC-SR04 Ultrasonic Sensor for distance measurement, an MG996R servo, and a 1 Channel 5V Relay Module for switching applications, all powered by a step-down module that regulates voltage from the charge controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Comms 2: Centree: A project utilizing ESC in a practical application
ESP32-Based Smart Home Automation System with Servo Motors and Ultrasonic Sensor
This circuit features an ESP32 microcontroller interfacing with multiple peripherals including three servos, an ultrasonic sensor, an OLED display, a membrane keypad, and several reed switches. The ESP32 controls the servos and reads inputs from the ultrasonic sensor, keypad, and reed switches, while also driving the OLED display to provide visual feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Drone : A project utilizing ESC in a practical application
Arduino-Controlled Quadcopter with GPS and Wireless Communication
This circuit appears to be a control system for a quadcopter or similar multirotor aircraft, featuring an Arduino Pro Mini as the central microcontroller. It includes four Electronic Speed Controllers (ESCs) connected to four brushless motors, a MPU-6050 for motion sensing, a GPS module for positioning, and an NRF24L01 module for wireless communication. The ESCs receive power from a Lipo battery and control signals from the Arduino to manage the speed of the motors, while the Arduino communicates with the GPS and NRF24L01 for navigation and remote control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Remote-controlled cars, boats, and airplanes
  • Drones and quadcopters
  • Electric skateboards and scooters
  • Robotics and automation systems
  • Industrial motor control

Technical Specifications

Below are the general technical specifications for a typical ESC. Note that specific values may vary depending on the model and manufacturer.

Key Technical Details

  • Input Voltage Range: 6V to 50V (depending on the ESC model)
  • Current Rating: 10A to 200A (continuous), higher for peak currents
  • Supported Motor Types: Brushless DC (BLDC) or Brushed DC motors
  • Control Signal: PWM (typically 1ms to 2ms pulse width)
  • BEC (Battery Eliminator Circuit): 5V or 6V output for powering external devices (optional)
  • Thermal Protection: Over-temperature shutdown
  • Reverse Functionality: Available in some models
  • Dimensions and Weight: Varies by model

Pin Configuration and Descriptions

The pin configuration of an ESC typically includes three motor output wires, a power input, and a control signal input. Below is a table summarizing the connections:

Pin/Wire Description
Red Wire (+) Positive power input (connect to battery positive terminal).
Black Wire (-) Negative power input (connect to battery negative terminal).
Three Motor Wires Connect to the three terminals of a brushless motor (order affects direction).
Signal Wire (White/Yellow) Receives PWM signal from the controller (e.g., Arduino, RC receiver).
BEC Output (Optional) Provides regulated 5V/6V power for external devices like servos or receivers.

Usage Instructions

How to Use an ESC in a Circuit

  1. Connect the Power Supply: Attach the ESC's red and black wires to the positive and negative terminals of the battery, respectively. Ensure the voltage matches the ESC's input range.
  2. Connect the Motor: Attach the three motor wires to the brushless motor. If the motor spins in the wrong direction, swap any two wires.
  3. Connect the Signal Input: Connect the signal wire to the PWM output pin of a microcontroller (e.g., Arduino) or an RC receiver.
  4. Optional BEC Connection: If the ESC has a BEC, use it to power external devices like servos or the microcontroller.
  5. Calibrate the ESC: Follow the manufacturer's instructions to calibrate the ESC for the throttle range of your controller.

Important Considerations

  • Cooling: Ensure proper ventilation or use a heatsink to prevent overheating during operation.
  • Voltage and Current Ratings: Always use an ESC rated for the motor's voltage and current requirements.
  • Signal Timing: Use a PWM signal with a pulse width of 1ms (minimum throttle) to 2ms (maximum throttle).
  • Startup Safety: Ensure the throttle is at the minimum position before powering the ESC to avoid accidental motor startup.

Example Code for Arduino UNO

Below is an example of how to control an ESC using an Arduino UNO:

#include <Servo.h> // Include the Servo library to generate PWM signals

Servo esc; // Create a Servo object to control the ESC

void setup() {
  esc.attach(9); // Attach the ESC signal wire to pin 9 on the Arduino
  esc.writeMicroseconds(1000); // Set initial throttle to minimum (1ms pulse)
  delay(2000); // Wait for 2 seconds to allow the ESC to initialize
}

void loop() {
  esc.writeMicroseconds(1500); // Set throttle to 50% (1.5ms pulse)
  delay(5000); // Run the motor at 50% throttle for 5 seconds

  esc.writeMicroseconds(1000); // Set throttle back to minimum
  delay(2000); // Wait for 2 seconds before repeating
}

Note: Adjust the writeMicroseconds values to control the motor speed. Always refer to the ESC's manual for specific calibration and safety instructions.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin

    • Cause: Incorrect wiring or no PWM signal.
    • Solution: Verify all connections and ensure the signal wire is receiving a valid PWM signal.
  2. Motor Spins in the Wrong Direction

    • Cause: Motor wires are connected in the wrong order.
    • Solution: Swap any two of the three motor wires.
  3. ESC Overheats

    • Cause: Excessive current draw or poor ventilation.
    • Solution: Use an ESC with a higher current rating or improve cooling.
  4. No Response from ESC

    • Cause: Throttle not calibrated or incorrect signal timing.
    • Solution: Calibrate the ESC according to the manufacturer's instructions and verify the PWM signal.
  5. BEC Not Powering External Devices

    • Cause: BEC output is disabled or overloaded.
    • Solution: Check the ESC's manual to ensure the BEC is enabled and within its current limits.

FAQs

  • Can I use an ESC with a brushed motor?
    • Yes, but only if the ESC is specifically designed to support brushed motors.
  • What happens if I exceed the ESC's voltage rating?
    • Exceeding the voltage rating can damage the ESC and potentially cause a fire. Always stay within the specified range.
  • How do I stop the motor quickly?
    • Some ESCs support a braking function. Refer to the manual to enable and configure braking.

By following this documentation, you can effectively use an ESC in your projects while ensuring safety and optimal performance.
