How to Use MCB 3 Phase Chint: Examples, Pinouts, and Specs

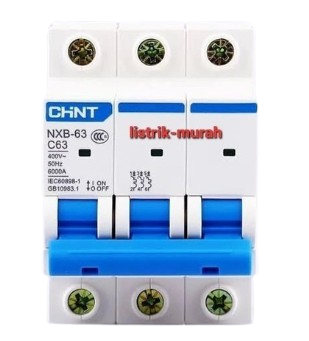

The MCB 3 Phase Chint is a Miniature Circuit Breaker designed specifically for three-phase electrical systems. Manufactured by Chint, this component provides essential overcurrent protection by automatically disconnecting the circuit in the event of an overload or short circuit. Its compact design and reliable performance make it a critical component in industrial, commercial, and residential electrical installations.

• Protection of three-phase electrical systems in industrial environments
• Overload and short circuit protection in commercial buildings
• Ensuring safety in residential three-phase power distribution systems
• Use in motor control circuits and other high-power applications

The following table outlines the key technical details of the MCB 3 Phase Chint:

The MCB 3 Phase Chint does not have traditional pins but instead features terminal connections for three-phase input and output. The table below describes the terminal configuration:

1. Mounting the MCB: Securely mount the MCB on a standard DIN rail in the distribution box or panel.
2. Wiring:
   • Connect the three-phase input wires (L1, L2, L3) to the corresponding input terminals of the MCB.
   • Connect the output terminals (OUT1, OUT2, OUT3) to the load or downstream circuit.
   • Ensure all connections are tight and secure to prevent arcing or overheating.
3. Power On: Switch on the MCB by toggling the lever to the "ON" position. The circuit is now protected against overcurrent conditions.
4. Testing: Periodically test the MCB by simulating an overload or using a test button (if available) to ensure proper functionality.

• Select the Correct Rating: Choose an MCB with the appropriate current rating and tripping curve (B, C, or D) based on the load characteristics.
• Avoid Overloading: Ensure the connected load does not exceed the rated current of the MCB.
• Proper Grounding: Verify that the electrical system is properly grounded to enhance safety.
• Regular Maintenance: Inspect the MCB periodically for signs of wear, loose connections, or damage.
• Compliance: Always adhere to local electrical codes and standards when installing the MCB.

While the MCB 3 Phase Chint is not directly compatible with Arduino UNO, it can be used in conjunction with relays or contactors controlled by the Arduino to manage high-power loads. Below is an example of Arduino code to control a relay that switches a three-phase load protected by the MCB:

// Example: Arduino code to control a relay for a three-phase load
const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  // Turn on the relay (activates the three-phase load)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the load on for 5 seconds

  // Turn off the relay (deactivates the three-phase load)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the load off for 5 seconds
}

Note: Ensure the relay module and associated components are rated for the voltage and current of the three-phase load.

1. MCB Trips Frequently:

   • Cause: Overloaded circuit or short circuit.
   • Solution: Reduce the load or inspect the circuit for faults.

2. MCB Does Not Trip During Overload:

   • Cause: Faulty MCB or incorrect current rating.
   • Solution: Replace the MCB or select the correct rating for the application.

3. Loose Connections:

   • Cause: Improperly tightened terminals.
   • Solution: Re-tighten all connections and ensure they are secure.

4. MCB Lever Stuck:

   • Cause: Mechanical failure or internal damage.
   • Solution: Replace the MCB with a new unit.

• Always disconnect power before inspecting or troubleshooting the MCB.
• Use a multimeter to check for continuity and ensure proper wiring.
• If the MCB trips repeatedly, verify the load characteristics and ensure they match the MCB's specifications.
• Consult the manufacturer's datasheet or technical support for additional guidance.

By following this documentation, users can effectively install, operate, and maintain the MCB 3 Phase Chint, ensuring reliable protection for their three-phase electrical systems.
