How to Use 11.1 V battery: Examples, Pinouts, and Specs

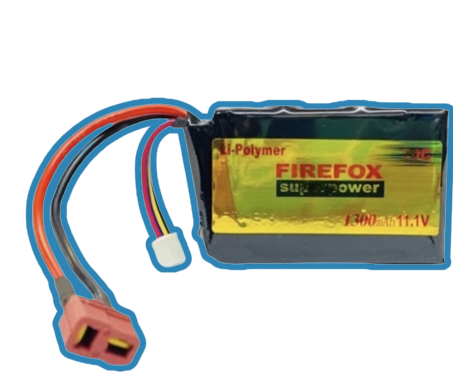

The 11.1 V Battery by Firefox is a rechargeable power source designed to deliver a nominal voltage of 11.1 volts. This battery is widely used in applications requiring a compact, lightweight, and reliable energy source. It is particularly popular in remote-controlled (RC) vehicles, drones, airsoft guns, and various portable electronic devices. Its lithium-polymer (LiPo) chemistry ensures high energy density and consistent performance, making it a preferred choice for demanding applications.

• RC vehicles (cars, boats, and planes)
• Drones and quadcopters
• Airsoft guns
• Portable electronic devices
• Robotics and DIY projects

Below are the key technical details of the Firefox 11.1 V Battery:

The 11.1 V Battery typically includes two connectors: a main power connector and a balance connector. Below is a description of each:

1. Connect the Main Power Connector: Use the main power connector (e.g., XT60 or T-plug) to supply power to your device or circuit.
2. Balance Charging: Always use a LiPo-compatible balance charger to charge the battery. Connect the balance connector to the charger to ensure all cells are charged evenly.
3. Voltage Monitoring: Use a voltage alarm or monitor to prevent over-discharging. The voltage of each cell should not drop below 3.0 V (9.0 V total for a 3S battery).
4. Secure Mounting: When using the battery in mobile applications (e.g., drones or RC vehicles), ensure it is securely mounted to prevent damage from vibrations or impacts.

• Charging Safety: Always charge the battery on a fireproof surface and never leave it unattended while charging.
• Storage: Store the battery at a voltage of 3.7–3.8 V per cell (11.1–11.4 V total) for long-term storage. Avoid storing in extreme temperatures.
• Discharge Limits: Do not discharge the battery below 9.0 V to prevent damage to the cells.
• Inspect Regularly: Check for physical damage, swelling, or unusual heat before and after use. Do not use a damaged battery.
• Use a Battery Management System (BMS): For advanced applications, consider integrating a BMS to monitor and protect the battery.

The 11.1 V Battery can be used to power an Arduino UNO via its VIN pin. Below is an example circuit and code to monitor the battery voltage using a voltage divider and the Arduino's analog input.

1. Connect the battery's positive terminal to one end of a voltage divider (e.g., 10 kΩ and 20 kΩ resistors in series).
2. Connect the midpoint of the voltage divider to the Arduino's analog input pin (e.g., A0).
3. Connect the battery's negative terminal to the Arduino's GND pin.

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Define the voltage divider ratio (e.g., 10k and 20k resistors)
const float voltageDividerRatio = 3.0;

// Define the reference voltage of the Arduino (5V for most boards)
const float referenceVoltage = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the voltage divider
  int analogValue = analogRead(voltagePin);

  // Convert the analog value to the battery voltage
  float batteryVoltage = (analogValue * referenceVoltage / 1023.0) * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  // Add a delay to avoid flooding the Serial Monitor
  delay(1000);
}

1. Battery Not Charging

   • Cause: Faulty charger or damaged balance connector.
   • Solution: Verify the charger is functioning correctly and inspect the connectors for damage.

2. Battery Swelling

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately and dispose of it safely.

3. Short Runtime

   • Cause: Battery capacity degradation or excessive current draw.
   • Solution: Check the battery's capacity and ensure the load does not exceed the maximum discharge rate.

4. Overheating

   • Cause: High discharge rate or poor ventilation.
   • Solution: Reduce the load or improve airflow around the battery.

Q: Can I use a standard charger to charge this battery?
A: No, you must use a LiPo-compatible balance charger to safely charge the battery.

Q: How do I know when the battery is fully charged?
A: The charger will indicate a full charge when the voltage reaches 12.6 V (4.2 V per cell).

Q: What happens if I over-discharge the battery?
A: Over-discharging can permanently damage the battery and reduce its capacity. Always use a voltage monitor to prevent this.

Q: Can I connect multiple 11.1 V batteries in series or parallel?
A: Yes, but ensure the batteries are of the same capacity and charge level. Use a BMS for safety.
