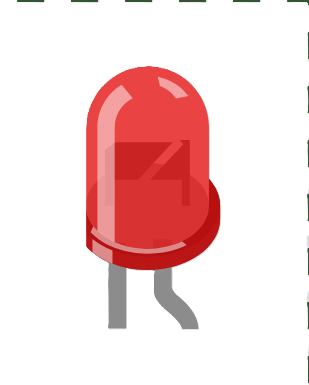

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient, have a long lifespan, and are commonly used for indicators, displays, and lighting. They are available in various colors, sizes, and brightness levels, making them versatile for a wide range of applications.

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Status indicators on electronic devices
  • Backlighting for displays
  • Decorative and architectural lighting
  • Automotive lighting (e.g., brake lights, turn signals)
  • Flashlights and portable lighting
  • Infrared LEDs for remote controls and sensors

Technical Specifications

Below are the general technical specifications for a standard 5mm LED. Note that specifications may vary depending on the specific type and manufacturer.

Parameter Value
Forward Voltage (Vf) 1.8V - 3.3V (varies by color)
Forward Current (If) 10mA - 20mA
Maximum Reverse Voltage 5V
Power Dissipation 60mW
Viewing Angle 20° - 60°
Wavelength (Color) 400nm - 700nm (visible light)
Lifespan 50,000+ hours

Pin Configuration

An LED typically has two pins:

Pin Description
Anode (+) The longer leg of the LED. Connect this to the positive terminal of the circuit.
Cathode (-) The shorter leg of the LED. Connect this to the negative terminal or ground.

Usage Instructions

How to Use an LED in a Circuit

  1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED
    • (I_f): Desired forward current (e.g., 20mA)
  2. Connect the LED:

    • Connect the anode (longer leg) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (shorter leg) to the ground.
  3. Test the Circuit: Power the circuit and observe the LED emitting light. If it does not light up, check the polarity and connections.

Important Considerations and Best Practices

  • Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
  • Current Limiting: Always use a resistor to limit the current through the LED.
  • Heat Management: For high-power LEDs, ensure proper heat dissipation to avoid overheating.
  • Voltage Rating: Do not exceed the maximum reverse voltage or forward voltage rating.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO.

Circuit Setup

  • Connect the anode of the LED to digital pin 13 on the Arduino through a 220Ω resistor.
  • Connect the cathode of the LED to the GND pin on the Arduino.

Arduino Code

// LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.

const int ledPin = 13; // Define the pin number for the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.
    • Solution: Ensure the anode is connected to the positive terminal and the cathode to ground.
  2. LED Burns Out:

    • Cause: No current-limiting resistor or incorrect resistor value.
    • Solution: Use a resistor with the correct value to limit the current.
  3. LED is Dim:

    • Cause: Insufficient current or low supply voltage.
    • Solution: Verify the resistor value and supply voltage.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power source and ensure all connections are secure.

FAQs

Q: Can I connect an LED directly to a battery?
A: No, connecting an LED directly to a battery without a resistor can cause excessive current flow, damaging the LED.

Q: How do I choose the right resistor for my LED?
A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}) to calculate the resistor value. For example, with a 5V supply, a 2V LED, and 20mA current, the resistor value is (R = \frac{5 - 2}{0.02} = 150\Omega).

Q: Can I use an LED with an AC power source?
A: LEDs are designed for DC operation. To use them with AC, you need a rectifier circuit to convert AC to DC.

Q: What happens if I reverse the polarity of an LED?
A: Reversing the polarity may prevent the LED from lighting up. Prolonged reverse voltage can damage the LED. Always connect the anode to the positive terminal and the cathode to ground.
