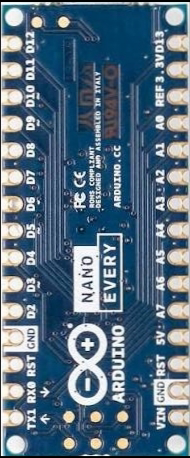

Image of arduino nano
Cirkit Designer LogoDesign with arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board based on the ATmega328P, designed for easy integration into a wide range of electronic projects. It features a small form factor, making it ideal for applications where space is limited. The Nano offers digital and analog input/output pins, USB connectivity for programming and communication, and full compatibility with the Arduino IDE, making it a versatile and user-friendly choice for both beginners and experienced developers.

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
Image of gps1: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps1: A project utilizing arduino nano in a practical application
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable electronics
  • Sensor-based systems and data logging
  • Educational tools for learning microcontroller programming

Technical Specifications

The Arduino Nano is equipped with the ATmega328P microcontroller and offers the following key specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V).
2 5V Regulated 5V output from the onboard voltage regulator.
3 3.3V Regulated 3.3V output (maximum current: 50 mA).
4 GND Ground pins.
5 RESET Resets the microcontroller when connected to GND.

Digital Pins

Pin Name Description
D0-D13 Digital I/O General-purpose digital input/output pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Name Description
A0-A7 Analog Input Used for reading analog signals (0-5V). Can also be used as digital I/O pins.

Communication Pins

Pin Name Description
D0, D1 RX, TX Serial communication pins for receiving (RX) and transmitting (TX) data.
D10-D13 SPI Pins used for SPI communication.
A4, A5 I2C Pins used for I2C communication (SDA and SCL).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type and choose the correct processor (ATmega328P).
    • Write your code in the IDE and upload it to the Nano via the USB connection.
  3. Connecting Components:

    • Use the digital pins for controlling LEDs, relays, or other digital devices.
    • Use the analog pins to read sensor data or as additional digital I/O pins.
    • For communication, use the RX/TX pins for serial, A4/A5 for I2C, or D10-D13 for SPI.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This code blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for any I/O pin to prevent damage.
  • Use appropriate resistors when connecting LEDs or other components to limit current.
  • Ensure proper grounding when connecting external devices to avoid noise or instability.
  • When using the Nano in standalone mode, consider adding decoupling capacitors near the power pins for stability.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Arduino Nano is not recognized by the computer.
    Solution:

    • Ensure the correct USB driver is installed (e.g., CH340 driver for some clones).
    • Try a different USB cable or port.
  2. Problem: The code does not upload to the Nano.
    Solution:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Check the COM port in the IDE and ensure it matches the Nano's port.
    • Press the reset button on the Nano before uploading.
  3. Problem: Components connected to the Nano are not functioning as expected.
    Solution:

    • Double-check the wiring and connections.
    • Verify that the code logic matches the hardware setup.
    • Use a multimeter to check for voltage and continuity issues.

FAQs

  • Can the Arduino Nano run on 3.3V?
    Yes, but the operating voltage for the ATmega328P is 5V. Running at 3.3V may cause instability.

  • What is the difference between the Nano and the Uno?
    The Nano is smaller and uses a Mini-B USB connector, while the Uno is larger and uses a standard USB-B connector. Both use the same ATmega328P microcontroller.

  • Can I use the Nano for battery-powered projects?
    Yes, the Nano can be powered via the VIN pin using a battery pack (7-12V) or directly with a regulated 5V source.

By following this documentation, you can effectively integrate the Arduino Nano into your projects and troubleshoot common issues with ease.
