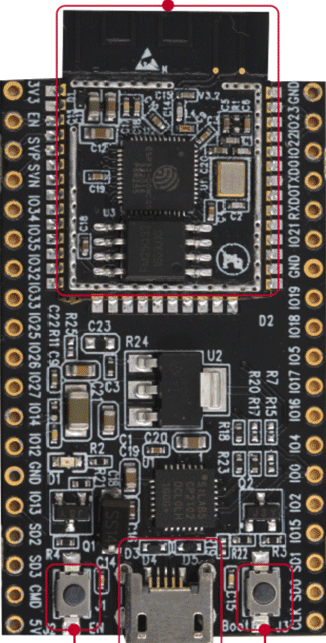

Image of ESP32-WROOM-32D
Cirkit Designer LogoDesign with ESP32-WROOM-32D in Cirkit Designer

Introduction

The ESP32-WROOM-32D is a high-performance Wi-Fi and Bluetooth microcontroller module manufactured by Espressif Systems. It features dual-core processing, making it ideal for a wide range of IoT applications and embedded systems. With its robust wireless connectivity, low power consumption, and versatile GPIO options, the ESP32-WROOM-32D is a popular choice for developers building smart devices, home automation systems, and industrial IoT solutions.

Explore Projects Built with ESP32-WROOM-32D

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32-WROOM-32D in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
Image of circuit diagram: A project utilizing ESP32-WROOM-32D in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental and Magnetic Field Monitoring System with OLED Display
Image of nam: A project utilizing ESP32-WROOM-32D in a practical application
This circuit features an ESP32 microcontroller connected to a DHT11 temperature and humidity sensor, two Hall effect sensors for detecting magnetic fields, an OLED display for output, and a buzzer for audible alerts. The ESP32 reads temperature and humidity data from the DHT11 sensor and magnetic field data from the Hall sensors, displaying the information on the OLED screen and potentially triggering the buzzer based on certain conditions. The ESP32 manages power distribution to the sensors and the display, and communicates with the OLED via I2C (SCL and SDA lines connected to pins 22 and 21 respectively).
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Infrared Proximity Sensing System
Image of ir sensor: A project utilizing ESP32-WROOM-32D in a practical application
This circuit features an ESP32 Wroom microcontroller connected to an Infrared Proximity Sensor. The ESP32's GPIO33 is interfaced with the sensor's output, allowing the microcontroller to read proximity data. The sensor is powered by the ESP32's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32-WROOM-32D

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32-WROOM-32D in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit diagram: A project utilizing ESP32-WROOM-32D in a practical application
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of nam: A project utilizing ESP32-WROOM-32D in a practical application
ESP32-Based Environmental and Magnetic Field Monitoring System with OLED Display
This circuit features an ESP32 microcontroller connected to a DHT11 temperature and humidity sensor, two Hall effect sensors for detecting magnetic fields, an OLED display for output, and a buzzer for audible alerts. The ESP32 reads temperature and humidity data from the DHT11 sensor and magnetic field data from the Hall sensors, displaying the information on the OLED screen and potentially triggering the buzzer based on certain conditions. The ESP32 manages power distribution to the sensors and the display, and communicates with the OLED via I2C (SCL and SDA lines connected to pins 22 and 21 respectively).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir sensor: A project utilizing ESP32-WROOM-32D in a practical application
ESP32-Based Infrared Proximity Sensing System
This circuit features an ESP32 Wroom microcontroller connected to an Infrared Proximity Sensor. The ESP32's GPIO33 is interfaced with the sensor's output, allowing the microcontroller to read proximity data. The sensor is powered by the ESP32's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Smart home devices (e.g., smart lights, thermostats)
  • Industrial IoT systems
  • Wearable electronics
  • Wireless sensor networks
  • Robotics and automation
  • Prototyping and development of connected devices

Technical Specifications

The ESP32-WROOM-32D module is built around the ESP32-D0WD chip, offering a rich set of features for wireless communication and processing.

Key Technical Details

Parameter Specification
Manufacturer Espressif Systems
Part Number ESP32D
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2
Processor Dual-core Xtensa® 32-bit LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (external SPI flash)
SRAM 520 KB
Operating Voltage 3.0V to 3.6V
GPIO Pins 34
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Operating Temperature -40°C to +85°C
Dimensions 18 mm x 25.5 mm x 3.1 mm

Pin Configuration and Descriptions

The ESP32-WROOM-32D module has 38 pins. Below is a summary of the key pins and their functions:

Pin Number Pin Name Function Description
1 EN Enable pin (active high)
2 IO0 GPIO0, used for boot mode selection
3 IO2 GPIO2, ADC2 channel, PWM capable
4 IO4 GPIO4, ADC2 channel, PWM capable
5 IO5 GPIO5, ADC2 channel, PWM capable
6 IO12 GPIO12, ADC2 channel, PWM capable
7 IO13 GPIO13, ADC2 channel, PWM capable
8 IO14 GPIO14, ADC2 channel, PWM capable
9 IO15 GPIO15, ADC2 channel, PWM capable
10 IO16 GPIO16, ADC2 channel, PWM capable
11 IO17 GPIO17, ADC2 channel, PWM capable
12 GND Ground
13 3V3 3.3V power supply

For a complete pinout diagram, refer to the official datasheet provided by Espressif.

Usage Instructions

How to Use the ESP32-WROOM-32D in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the module. Ensure the current rating of the power source is sufficient (at least 500 mA).
  2. Boot Mode Selection: Connect GPIO0 to GND during boot to enter programming mode. For normal operation, leave GPIO0 unconnected or pull it high.
  3. Programming: Use a USB-to-serial adapter to upload code to the ESP32. Connect the adapter's TX to RX and RX to TX on the ESP32, and ensure the EN pin is pulled high.
  4. GPIO Usage: Configure GPIO pins as input or output in your code. Avoid using GPIO6–GPIO11 as they are connected to the internal flash memory.

Important Considerations

  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Avoid connecting 5V signals directly to its GPIO pins.
  • Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to avoid interference.
  • Power Consumption: Use deep sleep mode to minimize power consumption in battery-powered applications.

Example Code for Arduino UNO Integration

Below is an example of how to blink an LED connected to GPIO2 using the Arduino IDE:

// Include the ESP32 Wi-Fi library
#include <WiFi.h>

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);

  // Print a message to the serial monitor
  Serial.begin(115200);
  Serial.println("ESP32 LED Blink Example");
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  Serial.println("LED ON");
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  Serial.println("LED OFF");
  delay(1000); // Wait for 1 second
}

Uploading Code

  1. Install the ESP32 board package in the Arduino IDE.
  2. Select the correct board (ESP32 Dev Module) and port.
  3. Connect the ESP32 to your computer via a USB-to-serial adapter.
  4. Upload the code and monitor the output using the Serial Monitor.

Troubleshooting and FAQs

Common Issues

  1. ESP32 Not Detected by Computer:

    • Ensure the USB-to-serial adapter drivers are installed.
    • Check the connections between the adapter and the ESP32.
  2. Code Upload Fails:

    • Verify that GPIO0 is connected to GND during programming.
    • Press and hold the EN button while uploading the code.
  3. Wi-Fi Connection Issues:

    • Double-check the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  4. Random Resets or Instability:

    • Use a stable power supply with sufficient current.
    • Add decoupling capacitors near the power pins.

FAQs

Q: Can the ESP32-WROOM-32D operate on 5V?
A: No, the ESP32 operates at 3.3V. Applying 5V to its GPIO pins can damage the module.

Q: How do I use the Bluetooth functionality?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the BluetoothSerial or BLE libraries in the Arduino IDE to implement Bluetooth features.

Q: What is the maximum Wi-Fi range of the ESP32?
A: The range depends on the environment but typically extends up to 100 meters in open spaces.

Q: Can I use the ESP32 for audio applications?
A: Yes, the ESP32 supports I2S for audio input/output and can be used for streaming or processing audio data.

For additional support, refer to the official Espressif documentation and community forums.
