How to Use NRF24L01 Adapter: Examples, Pinouts, and Specs

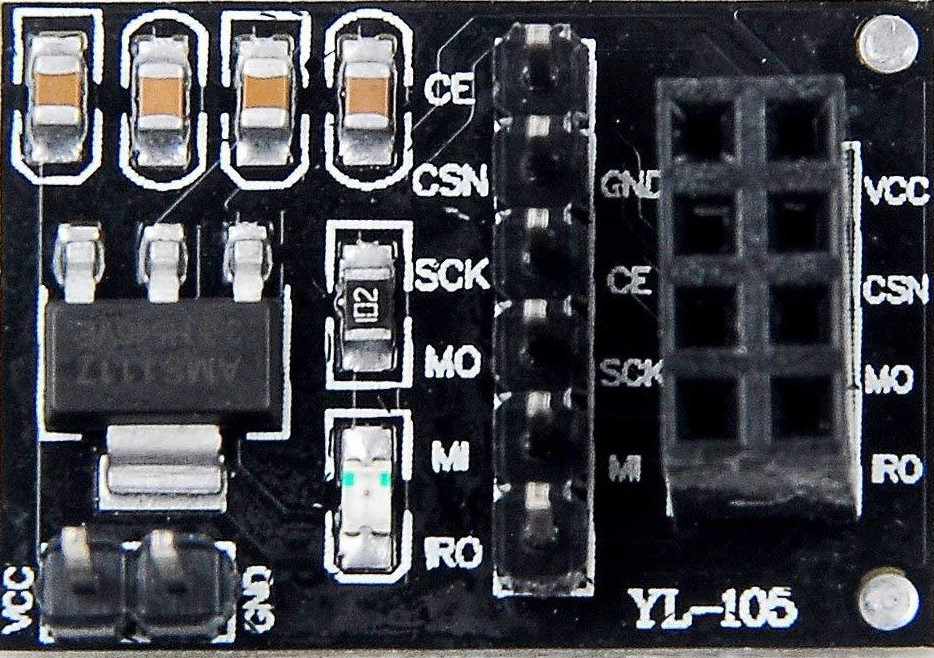

Image of NRF24L01 Adapter
Cirkit Designer LogoDesign with NRF24L01 Adapter in Cirkit Designer

Introduction

The NRF24L01 Adapter is a wireless communication module designed for low-power, short-range data transmission. Operating in the 2.4 GHz frequency range, it is widely used in Internet of Things (IoT) applications, including remote control systems, wireless sensors, and data logging. The adapter simplifies the connection of the NRF24L01 transceiver module to microcontrollers by providing voltage regulation and easy pin access.

Explore Projects Built with NRF24L01 Adapter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano Wireless Communication System with nRF24L01 Module
Image of drone reciever: A project utilizing NRF24L01 Adapter in a practical application
This circuit connects an nRF24L01 wireless transceiver module to an Arduino Nano microcontroller through an adapter board. The Arduino Nano is configured to communicate with the nRF24L01 via SPI (Serial Peripheral Interface), using pins D9 and D10 for chip enable (CE) and chip select (CSN), and pins D11 to D13 for the SPI bus (MOSI, MISO, SCK). An electrolytic capacitor is connected across the power supply lines likely for power stabilization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and NRF24L01 Wireless Communication Module
Image of Reciever: A project utilizing NRF24L01 Adapter in a practical application
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module via an adapter. The setup is designed for wireless communication, with the Arduino controlling the transceiver through SPI and digital I/O pins, and the code provided is a basic template for further development.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with NRF24L01 Wireless Communication and Analog Input Control
Image of loco receiver 1: A project utilizing NRF24L01 Adapter in a practical application
This circuit features an Arduino UNO connected to an NRF24L01 Adapter for wireless communication, powered by a 12V supply. It includes two potentiometers for analog input and three pushbuttons for digital input, with the Arduino managing these interfaces and potentially processing and transmitting data wirelessly.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Controlled NRF24L01 Wireless Communication System
Image of transmitter: A project utilizing NRF24L01 Adapter in a practical application
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 Adapter for wireless communication. A toggle switch is used to send a signal to the NRF24L01 when activated, which is indicated by an LED connected through a resistor. The Arduino Nano is programmed to send a message via the NRF24L01 when the switch is pressed, and the LED reflects the switch's state.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NRF24L01 Adapter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of drone reciever: A project utilizing NRF24L01 Adapter in a practical application
Arduino Nano Wireless Communication System with nRF24L01 Module
This circuit connects an nRF24L01 wireless transceiver module to an Arduino Nano microcontroller through an adapter board. The Arduino Nano is configured to communicate with the nRF24L01 via SPI (Serial Peripheral Interface), using pins D9 and D10 for chip enable (CE) and chip select (CSN), and pins D11 to D13 for the SPI bus (MOSI, MISO, SCK). An electrolytic capacitor is connected across the power supply lines likely for power stabilization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Reciever: A project utilizing NRF24L01 Adapter in a practical application
Arduino Nano and NRF24L01 Wireless Communication Module
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module via an adapter. The setup is designed for wireless communication, with the Arduino controlling the transceiver through SPI and digital I/O pins, and the code provided is a basic template for further development.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of loco receiver 1: A project utilizing NRF24L01 Adapter in a practical application
Arduino UNO with NRF24L01 Wireless Communication and Analog Input Control
This circuit features an Arduino UNO connected to an NRF24L01 Adapter for wireless communication, powered by a 12V supply. It includes two potentiometers for analog input and three pushbuttons for digital input, with the Arduino managing these interfaces and potentially processing and transmitting data wirelessly.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of transmitter: A project utilizing NRF24L01 Adapter in a practical application
Arduino Nano Controlled NRF24L01 Wireless Communication System
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 Adapter for wireless communication. A toggle switch is used to send a signal to the NRF24L01 when activated, which is indicated by an LED connected through a resistor. The Arduino Nano is programmed to send a message via the NRF24L01 when the switch is pressed, and the LED reflects the switch's state.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Wireless sensor networks
  • Remote control systems (e.g., drones, robots)
  • Home automation
  • Data transmission in IoT devices

Technical Specifications

The NRF24L01 Adapter is designed to work seamlessly with the NRF24L01 transceiver module. Below are its key technical details:

Key Specifications:

  • Operating Voltage: 3.3V (regulated from 5V input)
  • Communication Protocol: SPI (Serial Peripheral Interface)
  • Frequency Range: 2.4 GHz ISM band
  • Current Consumption: ~12 mA (transmit mode), ~900 nA (power-down mode)
  • Range: Up to 100 meters (line of sight, depending on antenna)
  • Dimensions: Typically 37mm x 17mm x 6mm (varies by manufacturer)

Pin Configuration:

The NRF24L01 Adapter has a standard 8-pin interface for connecting to a microcontroller. Below is the pinout description:

Pin Name Description
1 GND Ground connection
2 VCC Power input (5V, regulated to 3.3V internally)
3 CE Chip Enable: Activates the module for data transmission or reception
4 CSN Chip Select Not: Selects the module for SPI communication
5 SCK Serial Clock: SPI clock signal
6 MOSI Master Out Slave In: SPI data input to the module
7 MISO Master In Slave Out: SPI data output from the module
8 IRQ Interrupt Request: Signals the microcontroller when data is available (optional)

Usage Instructions

Connecting the NRF24L01 Adapter to a Microcontroller:

  1. Power Supply: Connect the VCC pin to a 5V power source and GND to ground. The adapter includes a voltage regulator to step down to 3.3V for the NRF24L01 module.
  2. SPI Interface: Connect the CE, CSN, SCK, MOSI, and MISO pins to the corresponding SPI pins on your microcontroller.
  3. Interrupt Pin (Optional): Connect the IRQ pin to a GPIO pin on the microcontroller if you want to use interrupt-driven communication.

Example: Connecting to an Arduino UNO

Below is an example of how to connect the NRF24L01 Adapter to an Arduino UNO:

NRF24L01 Adapter Pin Arduino UNO Pin
GND GND
VCC 5V
CE Pin 9
CSN Pin 10
SCK Pin 13
MOSI Pin 11
MISO Pin 12
IRQ (optional) Pin 2

Sample Arduino Code:

The following code demonstrates how to initialize the NRF24L01 Adapter using the popular RF24 library:

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Define the CE and CSN pins for the NRF24L01 module
#define CE_PIN 9
#define CSN_PIN 10

// Create an RF24 object
RF24 radio(CE_PIN, CSN_PIN);

// Define the address for communication
const byte address[6] = "00001";

void setup() {
  Serial.begin(9600); // Initialize serial communication
  radio.begin();      // Initialize the NRF24L01 module
  radio.openWritingPipe(address); // Set the address for data transmission
  radio.setPALevel(RF24_PA_LOW);  // Set power level to low for short-range communication
  radio.stopListening();          // Set the module to transmit mode
}

void loop() {
  const char text[] = "Hello, World!";
  bool success = radio.write(&text, sizeof(text)); // Send data
  if (success) {
    Serial.println("Message sent successfully!");
  } else {
    Serial.println("Message failed to send.");
  }
  delay(1000); // Wait 1 second before sending the next message
}

Best Practices:

  • Use a decoupling capacitor (e.g., 10 µF) between VCC and GND to stabilize the power supply.
  • Avoid long wires for SPI connections to minimize signal degradation.
  • If communication issues occur, consider using an external 3.3V power supply for the NRF24L01 module.

Troubleshooting and FAQs

Common Issues:

  1. No Communication Between Devices:

    • Ensure the CE and CSN pins are correctly connected to the microcontroller.
    • Verify that both devices use the same address and communication settings (e.g., data rate, channel).
  2. Module Not Powering On:

    • Check the VCC and GND connections.
    • Ensure the power supply provides sufficient current (at least 100 mA).
  3. Unstable Communication:

    • Add a decoupling capacitor between VCC and GND.
    • Reduce the SPI clock speed if using long wires.
  4. Short Range or Signal Loss:

    • Ensure the antenna is not obstructed.
    • Use a module with an external antenna for extended range.

FAQs:

Q: Can I connect the NRF24L01 Adapter directly to a 3.3V power source?
A: Yes, but ensure the power source is stable and can supply sufficient current. The adapter's onboard regulator is bypassed when using a 3.3V input.

Q: Do I need to use the IRQ pin?
A: No, the IRQ pin is optional. It is used for interrupt-driven communication but is not required for basic operation.

Q: Can I use multiple NRF24L01 modules in the same network?
A: Yes, the NRF24L01 supports multiple devices in a star or mesh network configuration. Ensure each device has a unique address.

Q: What is the maximum data rate of the NRF24L01?
A: The NRF24L01 supports data rates of 250 kbps, 1 Mbps, and 2 Mbps.
