How to Use Power Inverter: Examples, Pinouts, and Specs

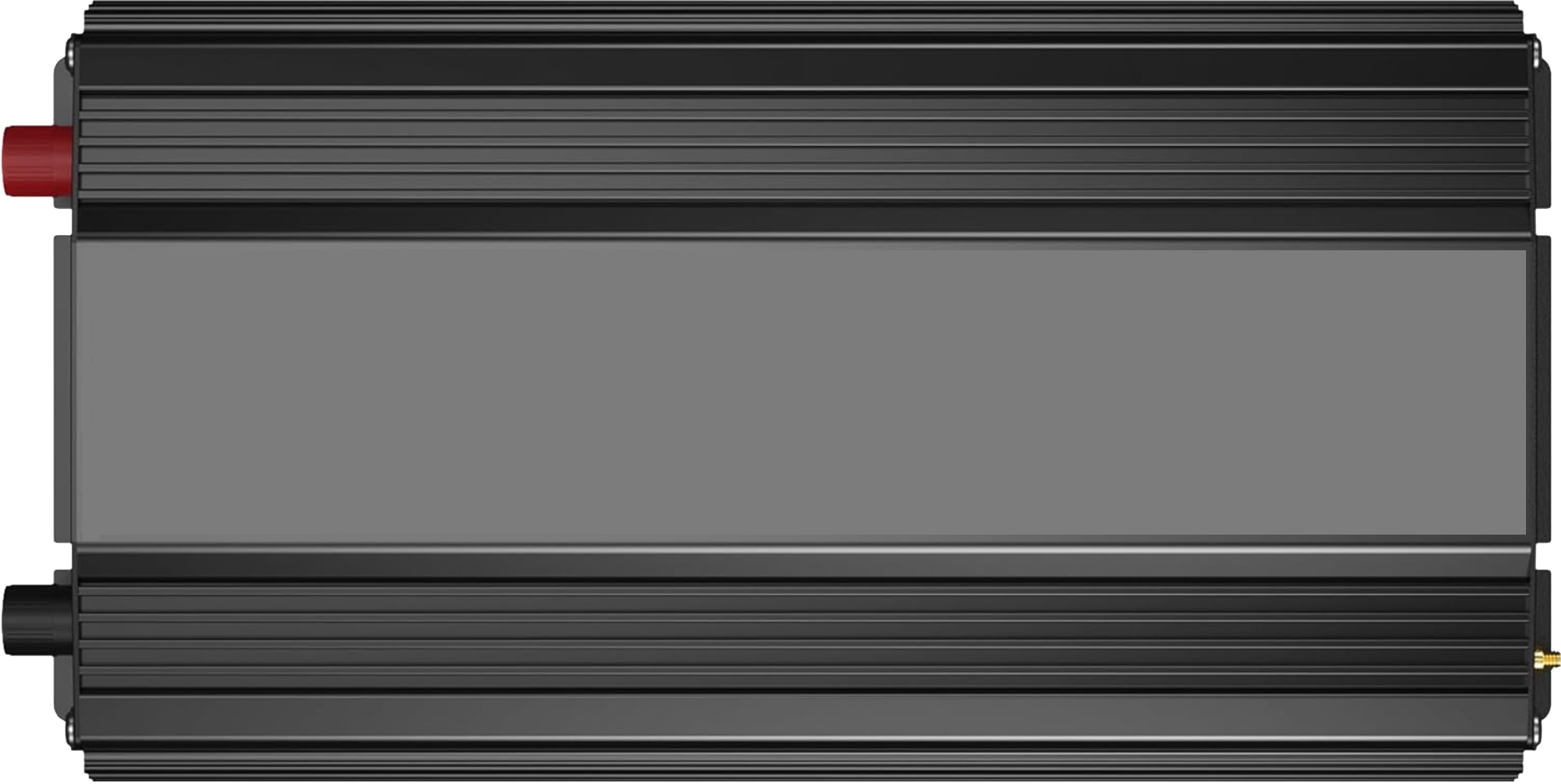

Image of Power Inverter
Cirkit Designer LogoDesign with Power Inverter in Cirkit Designer

Introduction

The VOLTWORKS Store ETL UL458 12V DC to 220V AC 4000W Power Inverter is a high-performance electronic device designed to convert 12V DC power from sources such as batteries into 220V AC power. This enables the operation of AC-powered devices in environments where only DC power is available, such as vehicles, off-grid solar systems, and remote locations.

Explore Projects Built with Power Inverter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Battery Backup System with Automatic Transfer Switch and AC Outlet
Image of last: A project utilizing Power Inverter in a practical application
This circuit is designed to harness solar energy, regulate its storage, and convert it for use in standard AC appliances. A solar panel charges a 12V battery through a charge controller, which ensures safe charging and discharging of the battery. The power inverter then converts the stored DC power from the battery into AC power, which is supplied to a 120V outlet through an Automatic Transfer Switch (ATS), ensuring power continuity and safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of POWER SUPPLY: A project utilizing Power Inverter in a practical application
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Dual Source Automatic Transfer Switch System
Image of Ats SCHEMATIC: A project utilizing Power Inverter in a practical application
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with Inverter
Image of EBT: A project utilizing Power Inverter in a practical application
This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V battery, and a power inverter. The solar panel generates electricity, which is regulated by the solar charge controller to charge the 12V battery. The power inverter converts the stored DC power from the battery into AC power for use with AC devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Power Inverter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of last: A project utilizing Power Inverter in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch and AC Outlet
This circuit is designed to harness solar energy, regulate its storage, and convert it for use in standard AC appliances. A solar panel charges a 12V battery through a charge controller, which ensures safe charging and discharging of the battery. The power inverter then converts the stored DC power from the battery into AC power, which is supplied to a 120V outlet through an Automatic Transfer Switch (ATS), ensuring power continuity and safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY: A project utilizing Power Inverter in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ats SCHEMATIC: A project utilizing Power Inverter in a practical application
Solar-Powered Dual Source Automatic Transfer Switch System
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EBT: A project utilizing Power Inverter in a practical application
Solar-Powered Battery Charging System with Inverter
This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V battery, and a power inverter. The solar panel generates electricity, which is regulated by the solar charge controller to charge the 12V battery. The power inverter converts the stored DC power from the battery into AC power for use with AC devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering household appliances (e.g., refrigerators, microwaves, TVs) in off-grid setups.
  • Providing AC power for tools and equipment in vehicles or remote job sites.
  • Supporting emergency backup power systems during outages.
  • Enabling portable power solutions for camping, RVs, and boats.

Technical Specifications

The following table outlines the key technical details of the ETL UL458 12V DC to 220V AC 4000W Power Inverter:

Specification Details
Input Voltage 12V DC
Output Voltage 220V AC ± 5%
Continuous Power Output 4000W
Peak Power Output 8000W
Output Waveform Pure Sine Wave
Efficiency ≥ 90%
Frequency 50Hz ± 1%
Protection Features Overload, over-temperature, short circuit, low voltage, and over-voltage
Cooling System Intelligent temperature-controlled fan
Operating Temperature -10°C to 40°C
Dimensions 16.5 x 9.8 x 4.3 inches (approx.)
Weight 10.5 lbs (approx.)
Certifications ETL UL458

Pin Configuration and Descriptions

The power inverter has the following key input/output connections:

Pin/Port Description
DC Input Terminals Connect to a 12V DC battery (positive and negative terminals).
AC Output Sockets Standard 220V AC outlets for connecting appliances or devices.
USB Ports (if available) Provide 5V DC output for charging USB-powered devices.
Ground Terminal Connect to the ground for safety and to reduce electrical noise.
Remote Control Port Allows connection of an optional remote control for convenient operation.

Usage Instructions

How to Use the Power Inverter in a Circuit

  1. Connect the DC Input Terminals:

    • Ensure the power source is a 12V DC battery with sufficient capacity to handle the inverter's power requirements.
    • Use appropriately rated cables to connect the positive and negative terminals of the inverter to the battery.
  2. Ground the Inverter:

    • Connect the ground terminal of the inverter to a suitable grounding point to ensure safety and reduce electrical interference.
  3. Connect AC Devices:

    • Plug your AC-powered devices into the inverter's AC output sockets. Ensure the total power consumption of connected devices does not exceed the inverter's continuous power rating (4000W).
  4. Power On the Inverter:

    • Turn on the inverter using the power switch or remote control (if connected). The inverter will begin converting DC to AC power.
  5. Monitor Operation:

    • Check the inverter's status indicators (if available) for normal operation. Some models may include LED indicators or an LCD display for voltage, power, and fault status.

Important Considerations and Best Practices

  • Battery Capacity: Use a battery with sufficient capacity to support the inverter's power output. For example, a 4000W load at 12V DC will draw approximately 333A (4000W ÷ 12V), so a high-capacity battery or battery bank is recommended.
  • Cable Sizing: Use thick, low-resistance cables to minimize voltage drop and heat generation. Refer to the inverter's manual for recommended cable sizes.
  • Ventilation: Ensure the inverter is placed in a well-ventilated area to prevent overheating. Avoid enclosing the inverter in tight spaces.
  • Load Management: Do not exceed the inverter's continuous power rating. For devices with high startup currents (e.g., refrigerators), ensure the peak power rating (8000W) is not exceeded.
  • Safety Precautions: Always disconnect the inverter from the battery before performing maintenance or making wiring changes.

Arduino UNO Integration

While power inverters are not directly controlled by Arduino boards, you can use an Arduino UNO to monitor the inverter's input/output voltages or control a relay to switch the inverter on/off. Below is an example Arduino sketch for controlling a relay connected to the inverter:

// Arduino sketch to control a relay for switching the power inverter on/off
const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  // Example: Turn the inverter on for 10 seconds, then off for 10 seconds
  digitalWrite(relayPin, HIGH); // Turn relay on (inverter ON)
  delay(10000); // Wait for 10 seconds
  digitalWrite(relayPin, LOW); // Turn relay off (inverter OFF)
  delay(10000); // Wait for 10 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Inverter Does Not Turn On:

    • Cause: Insufficient battery voltage or loose connections.
    • Solution: Check the battery voltage (should be ≥ 12V) and ensure all connections are secure.
  2. Overload Protection Activates:

    • Cause: Connected devices exceed the inverter's power rating.
    • Solution: Reduce the load by disconnecting some devices or using a higher-capacity inverter.
  3. Inverter Overheats:

    • Cause: Poor ventilation or excessive load.
    • Solution: Ensure the inverter is in a well-ventilated area and reduce the load if necessary.
  4. Low Voltage Alarm:

    • Cause: Battery voltage is too low.
    • Solution: Recharge or replace the battery.
  5. No AC Output:

    • Cause: Faulty wiring or internal fault in the inverter.
    • Solution: Check all connections and consult the manufacturer if the issue persists.

FAQs

  • Q: Can I use this inverter with a 24V battery?
    A: No, this inverter is designed for 12V DC input only. Using a 24V battery may damage the inverter.

  • Q: Is the inverter safe for sensitive electronics?
    A: Yes, the pure sine wave output is suitable for sensitive devices like laptops and medical equipment.

  • Q: Can I connect solar panels directly to the inverter?
    A: No, solar panels must be connected to a charge controller and battery before powering the inverter.

  • Q: How do I calculate the runtime of my battery with this inverter?
    A: Divide the battery capacity (in watt-hours) by the total load power (in watts). For example, a 12V 200Ah battery provides 2400Wh (12V × 200Ah), which can power a 400W load for approximately 6 hours (2400Wh ÷ 400W).
