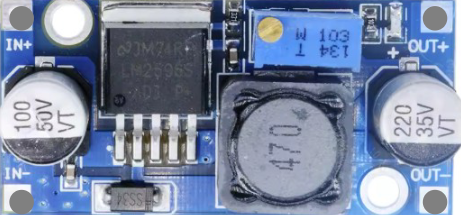

Image of Modul LM2596
Cirkit Designer LogoDesign with Modul LM2596 in Cirkit Designer

Introduction

The LM2596 is a step-down (buck) voltage regulator module designed to efficiently convert a higher input voltage to a lower, stable output voltage. It is widely used in power supply applications due to its high efficiency, adjustable output voltage, and built-in overcurrent protection. This module is ideal for powering low-voltage devices from higher-voltage sources, such as batteries or unregulated power supplies.

Explore Projects Built with Modul LM2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing Modul LM2596 in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Based GPS Tracker with GSM Communication and Accelerometer
Image of Circuit Aayush: A project utilizing Modul LM2596 in a practical application
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Solar-Powered Current Monitoring System with OLED Display
Image of Solar Tracker and Monitoring System: A project utilizing Modul LM2596 in a practical application
This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display, multiple LDR sensors with voltage dividers, an ACS712 current sensor, and two servomotors. The ESP32 reads analog values from the LDRs and the current sensor, and controls the servomotors. The LM2596 module steps down voltage for the circuit, which is powered by a combination of a solar panel and a 12V battery, with the current sensor monitoring the load current.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino GSM Security System with Motion Detection and Light Sensing
Image of Smart Home Security: A project utilizing Modul LM2596 in a practical application
This circuit is designed to interface an Arduino UNO with a SIM800L GSM module, PIR sensor, photocell, buzzer, and multiple LEDs. It is likely intended for environmental monitoring and alerting, with the capability to communicate over GSM for remote notifications. The LM2596 module provides voltage regulation for the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Modul LM2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solar system router ups: A project utilizing Modul LM2596 in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit Aayush: A project utilizing Modul LM2596 in a practical application
Arduino Nano Based GPS Tracker with GSM Communication and Accelerometer
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Tracker and Monitoring System: A project utilizing Modul LM2596 in a practical application
ESP32-Based Solar-Powered Current Monitoring System with OLED Display
This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display, multiple LDR sensors with voltage dividers, an ACS712 current sensor, and two servomotors. The ESP32 reads analog values from the LDRs and the current sensor, and controls the servomotors. The LM2596 module steps down voltage for the circuit, which is powered by a combination of a solar panel and a 12V battery, with the current sensor monitoring the load current.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Home Security: A project utilizing Modul LM2596 in a practical application
Arduino GSM Security System with Motion Detection and Light Sensing
This circuit is designed to interface an Arduino UNO with a SIM800L GSM module, PIR sensor, photocell, buzzer, and multiple LEDs. It is likely intended for environmental monitoring and alerting, with the capability to communicate over GSM for remote notifications. The LM2596 module provides voltage regulation for the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers, sensors, and other low-voltage devices
  • Battery-powered systems requiring efficient voltage regulation
  • DIY electronics projects and prototyping
  • Replacing linear voltage regulators for improved efficiency
  • Adjustable power supplies for testing and development

Technical Specifications

The LM2596 module is built around the LM2596 IC and includes additional components for ease of use. Below are the key technical details:

Key Specifications

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.25V to 37V (adjustable via potentiometer)
Output Current Up to 3A (with proper heat dissipation)
Efficiency Up to 92%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Protection Features Overcurrent, thermal shutdown

Pin Configuration and Descriptions

Pin Name Description
VIN Input voltage pin (connect to the higher voltage source)
VOUT Output voltage pin (connect to the load)
GND Ground pin (common ground for input and output)

Usage Instructions

How to Use the LM2596 Module in a Circuit

  1. Connect the Input Voltage (VIN):

    • Attach the positive terminal of your power source to the VIN pin.
    • Connect the negative terminal of your power source to the GND pin.
  2. Adjust the Output Voltage:

    • Use the onboard potentiometer to set the desired output voltage.
    • Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage at the VOUT pin while adjusting.
  3. Connect the Load:

    • Attach the positive terminal of your load to the VOUT pin.
    • Connect the negative terminal of your load to the GND pin.
  4. Power On:

    • Turn on the power source and verify the output voltage with a multimeter before connecting sensitive devices.

Important Considerations and Best Practices

  • Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
  • Use a heatsink or ensure adequate ventilation if the module is operating near its maximum current rating (3A).
  • Avoid short circuits between the VIN, VOUT, and GND pins to prevent damage.
  • For stable operation, use appropriate input and output capacitors as recommended in the LM2596 datasheet.

Example: Using LM2596 with Arduino UNO

The LM2596 module can be used to power an Arduino UNO from a higher voltage source, such as a 12V battery. Below is an example circuit and code:

Circuit Connections

  • Connect the 12V battery's positive terminal to the VIN pin of the LM2596.
  • Connect the 12V battery's negative terminal to the GND pin of the LM2596.
  • Adjust the LM2596 output to 5V using the potentiometer.
  • Connect the VOUT pin of the LM2596 to the Arduino UNO's 5V pin.
  • Connect the GND pin of the LM2596 to the Arduino UNO's GND pin.

Example Code

// Example code to blink an LED connected to Arduino UNO
// Ensure the Arduino is powered via the LM2596 module

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Output Voltage Not Adjustable:

    • Ensure the input voltage is at least 1.5V higher than the desired output voltage.
    • Verify that the potentiometer is functioning correctly.
  2. Module Overheating:

    • Check if the load current exceeds the module's maximum rating (3A).
    • Use a heatsink or improve ventilation around the module.
  3. No Output Voltage:

    • Confirm that the input voltage is within the specified range (4.5V to 40V).
    • Check all connections for proper polarity and secure contact.
  4. Load Not Powering On:

    • Verify the output voltage with a multimeter.
    • Ensure the load's current requirements do not exceed the module's capacity.

FAQs

Q: Can the LM2596 module be used with AC input?
A: No, the LM2596 module requires a DC input voltage. Use a rectifier and filter circuit to convert AC to DC before connecting to the module.

Q: What is the efficiency of the LM2596 module?
A: The module's efficiency can reach up to 92%, depending on the input voltage, output voltage, and load current.

Q: Can I use the LM2596 to charge batteries?
A: Yes, but ensure the output voltage and current are set according to the battery's charging specifications. Use additional circuitry for proper battery management.

Q: Is the LM2596 suitable for powering sensitive devices?
A: Yes, but add appropriate filtering capacitors to minimize noise and ensure stable operation.

This concludes the documentation for the LM2596 module.
