How to Use DHT22: Examples, Pinouts, and Specs

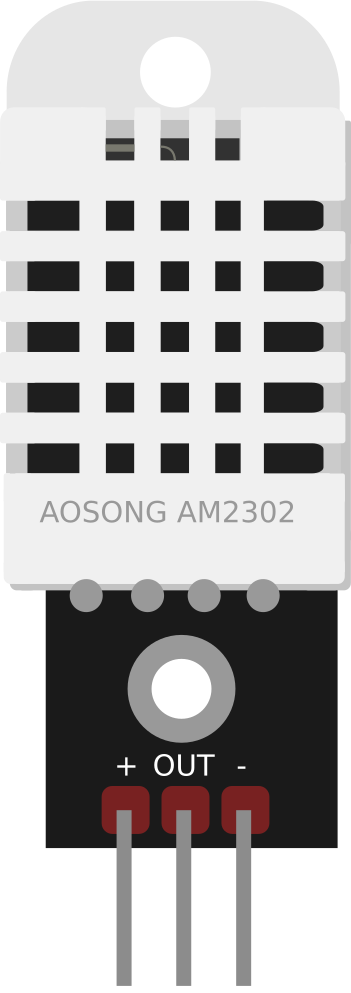

Image of DHT22
Cirkit Designer LogoDesign with DHT22 in Cirkit Designer

Introduction

The DHT22 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It features a single-wire digital interface, making it easy to connect to microcontrollers like Arduino and Raspberry Pi. The DHT22 is widely used in weather stations, environmental monitoring systems, and HVAC control applications due to its reliability and ease of use.

Explore Projects Built with DHT22

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Based DHT22 Temperature and Humidity Sensor
Image of TEMPERATURA HUMEDAD: A project utilizing DHT22 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a DHT22 temperature and humidity sensor. The DHT22 sensor is powered by the Arduino's 5V output through a 4.7k Ohm resistor, and its data pin is connected to the digital pin D2 of the Arduino. The embedded code on the Arduino reads the temperature and humidity values from the DHT22 sensor and outputs them to the serial monitor at regular intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Temperature and Humidity Sensor with DHT22
Image of firsttry: A project utilizing DHT22 in a practical application
This circuit uses an Arduino UNO to read data from a DHT22 temperature and humidity sensor. The DHT22 is powered by the Arduino's 3.3V and GND pins, with its data output connected to the Arduino's digital pin D2 through a 1.5k Ohm pull-up resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and DHT22 Temperature and Humidity Sensor with Serial Monitoring
Image of dht22 test: A project utilizing DHT22 in a practical application
This circuit uses an Arduino UNO to interface with a DHT22 temperature and humidity sensor. The Arduino reads data from the DHT22 sensor and outputs the temperature and humidity readings to the Serial Monitor. The DHT22 is powered by the Arduino's 5V and GND pins, and its data pin is connected to digital pin 2 on the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with DHT22 Temperature and Humidity Sensor
Image of Temperature and humidity: A project utilizing DHT22 in a practical application
This circuit connects a DHT22 temperature and humidity sensor to an Arduino UNO microcontroller. The DHT22's data pin is connected to digital pin 4 (D4) on the Arduino, allowing the microcontroller to read temperature and humidity data. The sensor is powered by the Arduino's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DHT22

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of TEMPERATURA HUMEDAD: A project utilizing DHT22 in a practical application
Arduino UNO Based DHT22 Temperature and Humidity Sensor
This circuit consists of an Arduino UNO microcontroller connected to a DHT22 temperature and humidity sensor. The DHT22 sensor is powered by the Arduino's 5V output through a 4.7k Ohm resistor, and its data pin is connected to the digital pin D2 of the Arduino. The embedded code on the Arduino reads the temperature and humidity values from the DHT22 sensor and outputs them to the serial monitor at regular intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of firsttry: A project utilizing DHT22 in a practical application
Arduino UNO-Based Temperature and Humidity Sensor with DHT22
This circuit uses an Arduino UNO to read data from a DHT22 temperature and humidity sensor. The DHT22 is powered by the Arduino's 3.3V and GND pins, with its data output connected to the Arduino's digital pin D2 through a 1.5k Ohm pull-up resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dht22 test: A project utilizing DHT22 in a practical application
Arduino UNO and DHT22 Temperature and Humidity Sensor with Serial Monitoring
This circuit uses an Arduino UNO to interface with a DHT22 temperature and humidity sensor. The Arduino reads data from the DHT22 sensor and outputs the temperature and humidity readings to the Serial Monitor. The DHT22 is powered by the Arduino's 5V and GND pins, and its data pin is connected to digital pin 2 on the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Temperature and humidity: A project utilizing DHT22 in a practical application
Arduino UNO with DHT22 Temperature and Humidity Sensor
This circuit connects a DHT22 temperature and humidity sensor to an Arduino UNO microcontroller. The DHT22's data pin is connected to digital pin 4 (D4) on the Arduino, allowing the microcontroller to read temperature and humidity data. The sensor is powered by the Arduino's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Weather monitoring systems
  • Indoor air quality monitoring
  • Greenhouse climate control
  • HVAC systems
  • IoT-based environmental sensing

Technical Specifications

The DHT22 sensor is designed for precision and ease of integration. Below are its key technical details:

Parameter Value
Supply Voltage 3.3V to 6V
Operating Current 0.3mA (measuring), 60µA (standby)
Temperature Range -40°C to +80°C
Temperature Accuracy ±0.5°C
Humidity Range 0% to 100% RH
Humidity Accuracy ±2% RH
Communication Protocol Single-wire digital interface
Sampling Rate 0.5 Hz (1 reading every 2 seconds)
Dimensions 15.1mm x 25mm x 7.7mm

Pin Configuration and Descriptions

The DHT22 has four pins, as described in the table below:

Pin Number Name Description
1 VCC Power supply (3.3V to 6V)
2 DATA Digital data output (connect to microcontroller)
3 NC Not connected (leave unconnected)
4 GND Ground (0V reference)

Note: A 10kΩ pull-up resistor is required between the DATA pin and VCC for proper communication.

Usage Instructions

How to Use the DHT22 in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. Connect the Data Pin: Attach the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and VCC.
  3. Read Data: Use a compatible library or write custom code to read temperature and humidity data from the sensor.

Important Considerations and Best Practices

  • Sampling Rate: The DHT22 has a maximum sampling rate of 0.5 Hz. Avoid reading data more frequently than once every 2 seconds.
  • Cable Length: For reliable communication, keep the cable length between the sensor and microcontroller as short as possible. If longer cables are necessary, use shielded cables.
  • Environmental Factors: Avoid placing the sensor in direct sunlight or near heat sources, as this may affect accuracy.
  • Pull-Up Resistor: Ensure the 10kΩ pull-up resistor is properly connected to the DATA pin to prevent communication errors.

Example Code for Arduino UNO

Below is an example of how to use the DHT22 with an Arduino UNO. This code uses the popular DHT library.

#include "DHT.h"

// Define the DHT sensor type and pin
#define DHTPIN 2      // Pin connected to the DATA pin of DHT22
#define DHTTYPE DHT22 // Specify the sensor type (DHT22)

DHT dht(DHTPIN, DHTTYPE); // Initialize the DHT sensor

void setup() {
  Serial.begin(9600); // Start serial communication at 9600 baud
  dht.begin();        // Initialize the DHT sensor
  Serial.println("DHT22 Sensor Initialized");
}

void loop() {
  delay(2000); // Wait 2 seconds between readings (required for DHT22)

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

Note: Install the DHT library in the Arduino IDE by navigating to Sketch > Include Library > Manage Libraries, then search for "DHT" and install the library by Adafruit.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Data or Incorrect Readings

    • Cause: Missing or incorrect pull-up resistor on the DATA pin.
    • Solution: Ensure a 10kΩ pull-up resistor is connected between the DATA pin and VCC.
  2. Frequent Communication Errors

    • Cause: Excessive cable length or electrical noise.
    • Solution: Use shorter or shielded cables and ensure proper grounding.
  3. Sensor Not Responding

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the wiring and ensure the power supply voltage is within the specified range (3.3V to 6V).
  4. Slow Response Time

    • Cause: Reading data too frequently.
    • Solution: Ensure a delay of at least 2 seconds between consecutive readings.

FAQs

Q: Can the DHT22 measure negative temperatures?
A: Yes, the DHT22 can measure temperatures as low as -40°C.

Q: Is the DHT22 waterproof?
A: No, the DHT22 is not waterproof. For outdoor or high-humidity environments, consider using a waterproof enclosure.

Q: Can I use the DHT22 with a 3.3V microcontroller?
A: Yes, the DHT22 operates with a supply voltage range of 3.3V to 6V, making it compatible with 3.3V microcontrollers.

Q: What is the difference between the DHT11 and DHT22?
A: The DHT22 offers higher accuracy, a wider temperature range, and better humidity resolution compared to the DHT11. However, it is slightly more expensive.
