How to Use Adafruit 1.2 Inch 8x8 LED Matrix Backpack - Yellow: Examples, Pinouts, and Specs

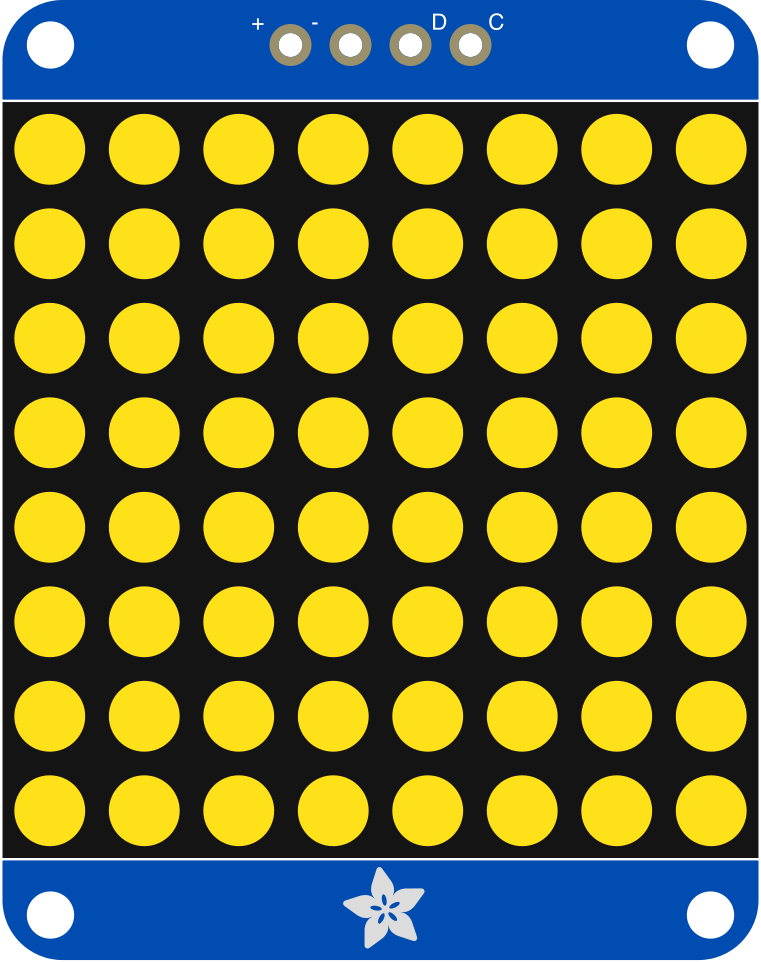

The Adafruit 1.2 Inch 8x8 LED Matrix Backpack - Yellow (Manufacturer Part ID: 1050) is a compact and versatile LED display module featuring an 8x8 grid of bright yellow LEDs. This module is designed for easy integration with microcontrollers, thanks to its built-in backpack that simplifies wiring and control. It is ideal for projects requiring visual output, such as displaying text, animations, or status indicators.

• Digital clocks and timers
• Scrolling text displays
• Visual indicators for IoT devices
• Educational and hobbyist projects
• Simple animations or graphics in embedded systems

The module uses a 4-pin header for I2C communication and power. Below is the pinout:

1. Wiring the Module:

   • Connect the VIN pin to a 5V power source.
   • Connect the GND pin to the ground of your circuit.
   • Connect the SDA pin to the I2C data line of your microcontroller.
   • Connect the SCL pin to the I2C clock line of your microcontroller.

2. Installing Required Libraries:

   • Download and install the Adafruit Adafruit_GFX and Adafruit_LED_Backpack libraries from the Arduino Library Manager.

3. Address Configuration:

   • The default I2C address for the module is 0x70. If you need to use multiple modules, you can change the address by soldering the address jumpers on the back of the module.

4. Example Circuit:

   • Connect the module to an Arduino UNO as follows:
     • VIN → 5V
     • GND → GND
     • SDA → A4 (on Arduino UNO)
     • SCL → A5 (on Arduino UNO)

Below is an example Arduino sketch to display a simple pattern on the LED matrix:

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_LEDBackpack.h>

// Create an instance of the LED matrix
Adafruit_8x8matrix matrix = Adafruit_8x8matrix();

void setup() {
  // Initialize the matrix
  matrix.begin(0x70); // Default I2C address is 0x70
  matrix.clear();     // Clear the display
  matrix.writeDisplay();

  // Draw a smiley face pattern
  matrix.drawBitmap(0, 0, smileyFace, 8, 8, LED_ON);
  matrix.writeDisplay(); // Update the display
}

// Smiley face bitmap (8x8 pixels)
static const uint8_t smileyFace[] = {
  0b00111100,
  0b01000010,
  0b10100101,
  0b10000001,
  0b10100101,
  0b10011001,
  0b01000010,
  0b00111100
};

void loop() {
  // No actions in the loop for this example
}

• Ensure the module is powered with a stable 5V DC supply.
• Avoid exceeding the current rating to prevent damage to the LEDs.
• Use pull-up resistors on the I2C lines if your microcontroller does not have internal pull-ups enabled.
• If using multiple modules, configure unique I2C addresses for each.

1. The LED matrix does not light up:

   • Verify all connections, especially power (VIN and GND).
   • Ensure the I2C address in your code matches the module's address.
   • Check if the required libraries are installed correctly.

2. Flickering or dim LEDs:

   • Ensure the power supply can provide sufficient current.
   • Check for loose or poor connections in the circuit.

3. I2C communication errors:

   • Confirm the SDA and SCL lines are connected to the correct pins on your microcontroller.
   • Use a logic analyzer or I2C scanner sketch to verify the module's address.

4. Multiple modules not working:

   • Ensure each module has a unique I2C address by configuring the address jumpers.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module is compatible with 3.3V logic levels, but you must still provide 5V to the VIN pin for powering the LEDs.

Q: How do I change the brightness of the LEDs?
A: Use the setBrightness() function in the Adafruit_LEDBackpack library to adjust the brightness level (0-15).

Q: Can I chain multiple LED matrix modules together?
A: Yes, you can chain multiple modules by assigning unique I2C addresses to each and connecting them to the same SDA and SCL lines.

This concludes the documentation for the Adafruit 1.2 Inch 8x8 LED Matrix Backpack - Yellow.
