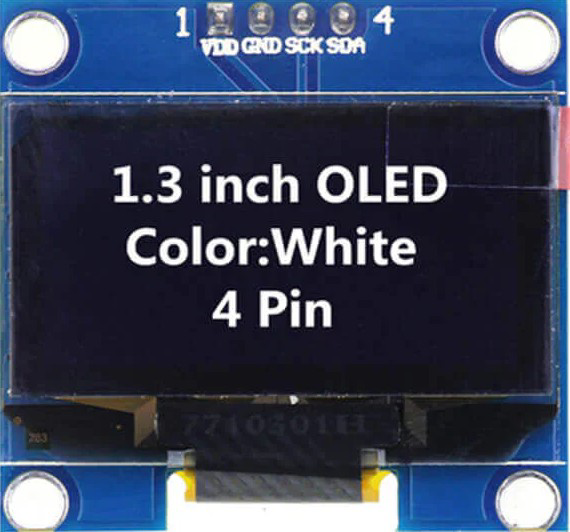

Image of 1.3 inch oled
Cirkit Designer LogoDesign with 1.3 inch oled in Cirkit Designer

Introduction

The 1.3 Inch OLED Display is a small, high-resolution organic light-emitting diode display designed for use in embedded systems and portable devices. It offers excellent contrast, wide viewing angles, and low power consumption, making it ideal for displaying graphics, text, and animations in compact electronic projects. This display is commonly used in applications such as IoT devices, wearables, handheld instruments, and DIY electronics projects.

Explore Projects Built with 1.3 inch oled

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO OLED Display Interface for Real-Time Data Visualization
Image of a2: A project utilizing 1.3 inch oled in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a 1.3" OLED display. The Arduino provides power and communicates with the OLED display via I2C protocol, utilizing the SCL and SDA pins for data transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer
IoT Board with 0.96" OLED Display for Real-Time Data Visualization
Image of dgd: A project utilizing 1.3 inch oled in a practical application
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing 1.3 inch oled in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU OLED Display: Wi-Fi Enabled Hello World Project
Image of oled: A project utilizing 1.3 inch oled in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to a 1.3-inch OLED display via I2C communication. The microcontroller initializes the display and renders basic graphics and text, demonstrating a simple interface for visual output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 1.3 inch oled

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of a2: A project utilizing 1.3 inch oled in a practical application
Arduino UNO OLED Display Interface for Real-Time Data Visualization
This circuit consists of an Arduino UNO microcontroller connected to a 1.3" OLED display. The Arduino provides power and communicates with the OLED display via I2C protocol, utilizing the SCL and SDA pins for data transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dgd: A project utilizing 1.3 inch oled in a practical application
IoT Board with 0.96" OLED Display for Real-Time Data Visualization
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp32_monochromeimage: A project utilizing 1.3 inch oled in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of oled: A project utilizing 1.3 inch oled in a practical application
ESP8266 NodeMCU OLED Display: Wi-Fi Enabled Hello World Project
This circuit features an ESP8266 NodeMCU microcontroller connected to a 1.3-inch OLED display via I2C communication. The microcontroller initializes the display and renders basic graphics and text, demonstrating a simple interface for visual output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • IoT dashboards and status displays
  • Wearable devices
  • Portable measurement tools
  • DIY electronics and Arduino projects
  • Graphic user interfaces for embedded systems

Technical Specifications

Below are the key technical details and pin configuration for the 1.3 Inch OLED Display:

Key Technical Details:

Parameter Specification
Display Type OLED (Organic Light-Emitting Diode)
Screen Size 1.3 inches
Resolution 128 x 64 pixels
Interface I2C or SPI (depending on model)
Operating Voltage 3.3V to 5V
Operating Current ~20mA (typical)
Viewing Angle >160°
Contrast Ratio 2000:1
Driver IC SSD1306
Operating Temperature -40°C to +85°C

Pin Configuration:

The 1.3 Inch OLED Display typically has a 4-pin or 7-pin interface, depending on the communication protocol (I2C or SPI). Below is the pinout for the I2C version:

I2C Pin Configuration:

Pin Number Pin Name Description
1 GND Ground (0V reference)
2 VCC Power supply (3.3V or 5V)
3 SCL Serial Clock Line (I2C clock input)
4 SDA Serial Data Line (I2C data input/output)

SPI Pin Configuration (if applicable):

Pin Number Pin Name Description
1 GND Ground (0V reference)
2 VCC Power supply (3.3V or 5V)
3 SCK Serial Clock (SPI clock input)
4 MOSI Master Out Slave In (SPI data input)
5 RES Reset (active low)
6 DC Data/Command control
7 CS Chip Select (active low)

Usage Instructions

How to Use the Component in a Circuit:

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. Communication Protocol:
    • For I2C: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller.
    • For SPI: Connect SCK, MOSI, RES, DC, and CS to the appropriate SPI pins on your microcontroller.
  3. Pull-Up Resistors: If using I2C, ensure pull-up resistors (typically 4.7kΩ) are connected to the SCL and SDA lines.
  4. Driver Library: Use a compatible library (e.g., Adafruit SSD1306 or U8g2) to control the display.

Example Code for Arduino UNO (I2C):

Below is an example of how to use the 1.3 Inch OLED Display with an Arduino UNO using the Adafruit SSD1306 library:

// Include necessary libraries
#include <Wire.h>                // For I2C communication
#include <Adafruit_GFX.h>        // Graphics library
#include <Adafruit_SSD1306.h>    // OLED driver library

// Define OLED display dimensions
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

// Create an SSD1306 display object (I2C address 0x3C is common)
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);

  // Initialize the OLED display
  if (!display.begin(SSD1306_I2C_ADDRESS, 0x3C)) {
    Serial.println(F("SSD1306 allocation failed"));
    for (;;); // Halt execution if initialization fails
  }

  // Clear the display buffer
  display.clearDisplay();

  // Display a welcome message
  display.setTextSize(1);         // Set text size (1 = small, 2 = medium, etc.)
  display.setTextColor(SSD1306_WHITE); // Set text color
  display.setCursor(0, 0);        // Set cursor position
  display.println(F("Hello, OLED!")); // Print text to the buffer
  display.display();              // Send buffer to the display
  delay(2000);                    // Wait for 2 seconds
}

void loop() {
  // Example: Draw a rectangle
  display.clearDisplay();         // Clear the display buffer
  display.drawRect(10, 10, 50, 30, SSD1306_WHITE); // Draw a rectangle
  display.display();              // Send buffer to the display
  delay(1000);                    // Wait for 1 second
}

Important Considerations and Best Practices:

  • Voltage Compatibility: Ensure the display's operating voltage matches your microcontroller's logic level (3.3V or 5V).
  • I2C Address: The default I2C address is typically 0x3C or 0x3D. Check your display's documentation or use an I2C scanner to confirm.
  • Library Compatibility: Use a well-supported library like Adafruit SSD1306 or U8g2 for reliable operation.
  • Avoid Static Damage: Handle the display carefully to avoid damage from electrostatic discharge (ESD).

Troubleshooting and FAQs

Common Issues and Solutions:

  1. Display Not Turning On:

    • Verify the power connections (VCC and GND).
    • Ensure the correct voltage (3.3V or 5V) is supplied.
    • Check for loose or incorrect wiring.
  2. No Output on the Display:

    • Confirm the I2C or SPI connections are correct.
    • Check the I2C address (default is 0x3C or 0x3D).
    • Ensure the driver library is properly installed and initialized.
  3. Flickering or Unstable Display:

    • Verify the power supply is stable and sufficient.
    • Check for proper pull-up resistors on the I2C lines.
  4. Library Errors During Compilation:

    • Ensure the Adafruit SSD1306 and Adafruit GFX libraries are installed.
    • Update the libraries to the latest version if needed.

FAQs:

  • Q: Can I use this display with a Raspberry Pi?
    A: Yes, the display is compatible with Raspberry Pi. Use the I2C or SPI interface and appropriate libraries like luma.oled.

  • Q: What is the maximum refresh rate of the display?
    A: The refresh rate depends on the driver IC (SSD1306) and the communication speed. Typically, it supports up to 60Hz.

  • Q: Can I daisy-chain multiple displays?
    A: For I2C, you can connect multiple displays by assigning unique addresses. For SPI, each display requires a separate CS pin.

By following this documentation, you can effectively integrate the 1.3 Inch OLED Display into your projects and troubleshoot common issues with ease.
