How to Use PSU 12V: Examples, Pinouts, and Specs

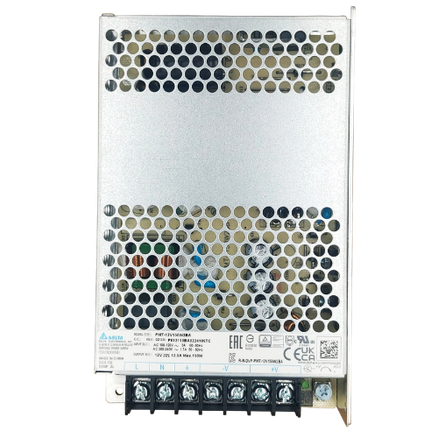

The PSU 12V, manufactured by "me" (Part ID: me), is a Power Supply Unit designed to convert AC voltage from the mains into a stable 12V DC output. This component is widely used in powering electronic devices, circuits, and systems that require a reliable 12V DC power source. Its robust design ensures consistent performance and protection against common electrical issues such as overvoltage and short circuits.

• Powering microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• Driving 12V DC motors, relays, and solenoids
• Supplying power to LED strips and lighting systems
• General-purpose use in low-power electronic circuits

The PSU 12V is designed to meet the needs of a variety of applications. Below are its key technical details:

The PSU 12V typically has the following input and output connections:

1. Connect the Input Terminals:

   • Connect the AC-L terminal to the live wire of the AC mains.
   • Connect the AC-N terminal to the neutral wire of the AC mains.
   • Ensure proper insulation and secure connections to avoid electrical hazards.

2. Connect the Output Terminals:

   • Connect the +12V terminal to the positive input of your circuit or device.
   • Connect the GND terminal to the ground of your circuit or device.

3. Power On:

   • Once all connections are secure, plug the PSU into the mains and switch it on.
   • Verify the output voltage using a multimeter before connecting sensitive devices.

• Load Requirements: Ensure the total current draw of connected devices does not exceed the PSU's maximum output current (2A).
• Ventilation: Place the PSU in a well-ventilated area to prevent overheating.
• Polarity: Double-check the polarity of the output connections to avoid damaging your devices.
• Safety: Always disconnect the PSU from the mains before making or modifying connections.

The PSU 12V can be used to power an Arduino UNO via its barrel jack or VIN pin. Below is an example of how to connect and use it:

1. Connect the +12V output of the PSU to the Arduino's barrel jack or VIN pin.
2. Connect the GND output of the PSU to the Arduino's GND pin.
3. Ensure the Arduino's onboard voltage regulator is functioning properly to step down the 12V to 5V for internal use.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered by the PSU 12V via the barrel jack or VIN pin

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can I use the PSU 12V to power a 5V device?

   • No, the PSU outputs 12V DC. Use a step-down voltage regulator to convert 12V to 5V.

2. What happens if I exceed the maximum current rating?

   • The PSU's overcurrent protection will activate, shutting down the output to prevent damage.

3. Is the PSU suitable for outdoor use?

   • No, the PSU is not weatherproof. Use it in a dry, indoor environment.

By following this documentation, you can safely and effectively use the PSU 12V in your projects and applications.
