How to Use SEN0460: Examples, Pinouts, and Specs

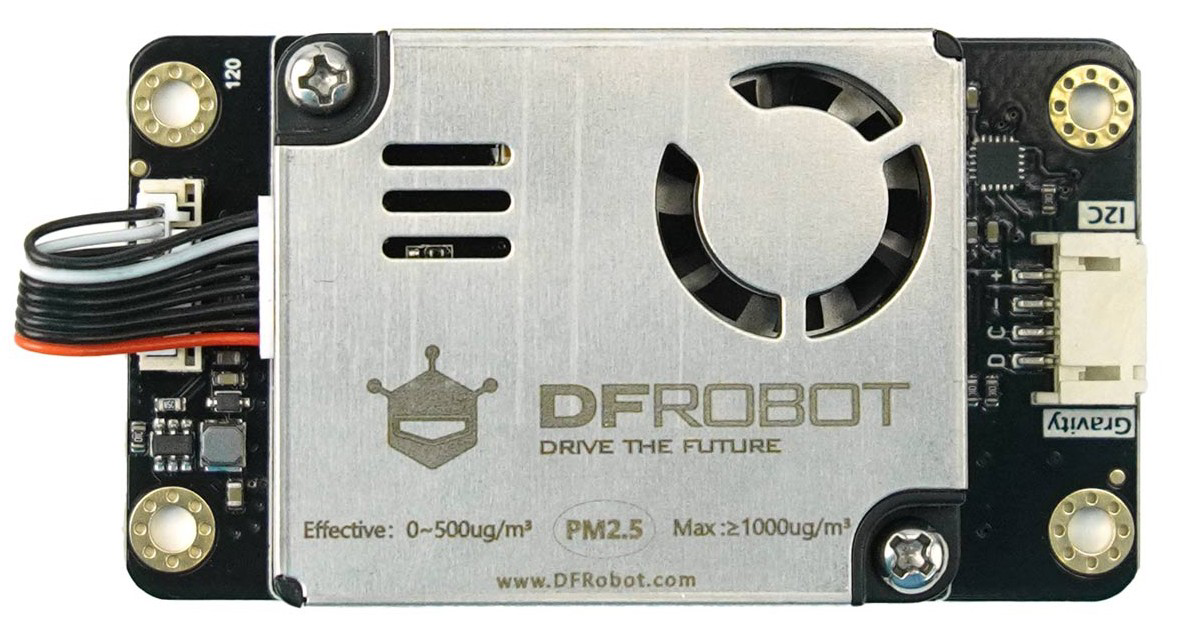

The SEN0460 is a capacitive soil moisture sensor manufactured by DFRobot. It is designed to measure the volumetric water content in soil, providing an analog output that corresponds to the soil's moisture level. Unlike resistive soil moisture sensors, the SEN0460 is less prone to corrosion, ensuring a longer lifespan and more reliable performance. This sensor is ideal for applications such as precision agriculture, gardening, and automated irrigation systems.

• Smart irrigation systems
• Greenhouse monitoring
• Agricultural soil analysis
• Gardening and landscaping automation
• Environmental monitoring projects

The SEN0460 is a robust and efficient sensor with the following key specifications:

The SEN0460 has a simple 3-pin interface:

1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source.
2. Ground: Connect the GND pin to the ground of your circuit.
3. Analog Output: Connect the AOUT pin to an analog input pin of your microcontroller (e.g., Arduino).

• Calibration: The sensor's output voltage varies with soil moisture. You may need to calibrate the sensor for your specific soil type to achieve accurate readings.
• Placement: Insert the sensor into the soil vertically, ensuring the sensing area is fully covered by soil for accurate measurements.
• Waterproofing: The SEN0460 is IP67-rated, making it suitable for outdoor use. However, avoid submerging the entire sensor in water.
• Power Supply: Ensure the power supply voltage is within the specified range (3.3V to 5.5V) to avoid damaging the sensor.

Below is an example of how to connect and read data from the SEN0460 using an Arduino UNO:

// SEN0460 Soil Moisture Sensor Example with Arduino UNO
// This code reads the analog output from the SEN0460 and prints the moisture level
// to the Serial Monitor.

const int sensorPin = A0; // Connect the AOUT pin of the SEN0460 to Arduino pin A0
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as an input
}

void loop() {
  // Read the analog value from the sensor
  sensorValue = analogRead(sensorPin);

  // Convert the analog value to a percentage (0-100%)
  // Assuming 0 corresponds to dry soil and 1023 corresponds to fully wet soil
  float moisturePercent = (sensorValue / 1023.0) * 100;

  // Print the moisture percentage to the Serial Monitor
  Serial.print("Soil Moisture: ");
  Serial.print(moisturePercent);
  Serial.println("%");

  delay(1000); // Wait for 1 second before taking the next reading
}

• Avoid bending or applying excessive force to the sensor to prevent damage.
• Periodically clean the sensor to remove soil buildup for consistent readings.
• Use proper shielding or filtering if the sensor is used in electrically noisy environments.

1. No Output or Incorrect Readings:

   • Ensure the sensor is properly powered (3.3V to 5.5V).
   • Verify that the AOUT pin is correctly connected to the analog input of the microcontroller.
   • Check for loose or damaged wires.

2. Fluctuating Readings:

   • Ensure the sensor is fully inserted into the soil.
   • Avoid placing the sensor near sources of electrical noise.
   • Add a capacitor (e.g., 0.1µF) between VCC and GND to stabilize the power supply.

3. Corrosion or Physical Damage:

   • The SEN0460 is corrosion-resistant, but excessive force or improper use can damage it. Handle with care.

Q: Can the SEN0460 be used in hydroponic systems?
A: The SEN0460 is designed for soil moisture measurement. It is not suitable for direct use in water or hydroponic systems.

Q: How do I calibrate the sensor for my soil type?
A: To calibrate, measure the sensor's output voltage in dry soil and fully saturated soil. Use these values to map the sensor's output to a percentage scale.

Q: Can I use the SEN0460 with a 3.3V microcontroller?
A: Yes, the SEN0460 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V microcontrollers like the ESP32.

Q: Is the SEN0460 suitable for long-term outdoor use?
A: Yes, the SEN0460 is IP67-rated and designed for outdoor use. However, ensure proper installation to protect the wiring and connections.

By following this documentation, you can effectively integrate the SEN0460 into your projects and achieve reliable soil moisture measurements.
