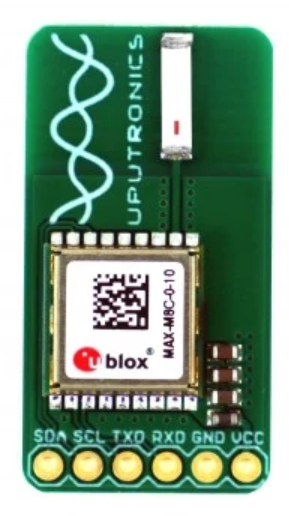

The Uputronic GNSS is a high-performance Global Navigation Satellite System (GNSS) module designed for precise positioning and navigation. It supports multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou, ensuring reliable and accurate location data in various environments. This module is widely used in robotics, drones, IoT devices, and other applications requiring real-time geolocation and navigation.
Explore Projects Built with Uputronic GNSS
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit integrates a GPS module, an ESP8266 microcontroller, a Bluetooth module, and an APC220 RF module to collect and transmit GPS data. The ESP8266 reads GPS data from the SparkFun Qwiic GPS-RTK2 module and can communicate this data via Bluetooth and RF transmission. The system is powered by a 5V battery and includes an embedded GPS antenna for signal reception.
This circuit features an Arduino UNO microcontroller interfaced with an A9G GSM/GPRS+GPS/BDS module and two VL53L1X time-of-flight distance sensors. The A9G module is connected to the Arduino via serial communication for GPS and GSM functionalities, while both VL53L1X sensors are connected through I2C with shared SDA and SCL lines and individual SHUT pins for selective sensor activation. The Arduino is programmed to control these peripherals, although the specific functionality is not detailed in the provided code.
This circuit comprises a satellite compass, a mini PC, two GPS antennas, power supplies, a network switch, media converters, and an atomic rubidium clock. The satellite compass is powered by a triple output DC power supply and interfaces with an RS232 splitter for 1PPS signals. The mini PCs are connected to the USRP B200 devices via USB for data and power, and to media converters via Ethernet, which in turn connect to a network switch using fiber optic links. The antennas are connected to the USRP B200s through RF directional couplers, and the atomic clock provides a 1PPS input to the RS232 splitter.
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Autonomous drones for navigation and waypoint tracking
Robotics for precise localization and mapping
IoT devices for geofencing and asset tracking
Surveying and mapping applications
Vehicle navigation systems
Technical Specifications
The Uputronic GNSS module is engineered for high accuracy and low power consumption. Below are its key technical specifications:
Parameter
Specification
Satellite Systems
GPS, GLONASS, Galileo, BeiDou
Positioning Accuracy
±2.5 meters (CEP)
Update Rate
Up to 10 Hz
Operating Voltage
3.3V - 5V
Power Consumption
50 mA (typical)
Communication Interface
UART, I2C
Baud Rate (Default)
9600 bps
Operating Temperature
-40°C to +85°C
Dimensions
25mm x 25mm x 5mm
Pin Configuration
The Uputronic GNSS module has a simple pinout for easy integration into your projects. Below is the pin configuration:
Pin
Name
Description
1
VCC
Power supply input (3.3V - 5V)
2
GND
Ground
3
TX
UART Transmit (data output)
4
RX
UART Receive (data input)
5
SDA
I2C Data Line
6
SCL
I2C Clock Line
7
PPS
Pulse Per Second output for timing synchronization
8
EN
Enable pin (active high)
Usage Instructions
How to Use the Uputronic GNSS in a Circuit
Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
Communication Interface:
For UART communication, connect the TX and RX pins to the corresponding RX and TX pins of your microcontroller.
For I2C communication, connect the SDA and SCL pins to the I2C bus of your microcontroller.
Enable Pin: Ensure the EN pin is pulled high to activate the module.
Antenna: Attach an external active antenna to the module's antenna connector for optimal signal reception.
Pulse Per Second (PPS): Use the PPS pin for precise timing applications if required.
Important Considerations
Antenna Placement: Place the antenna in an open area with a clear view of the sky for the best satellite reception.
Power Supply: Use a stable power source to avoid fluctuations that may affect performance.
Baud Rate Configuration: If needed, configure the baud rate using appropriate commands via the UART interface.
Startup Time: Allow a cold start time of up to 30 seconds for the module to acquire satellite signals.
Example: Connecting to an Arduino UNO
Below is an example of how to interface the Uputronic GNSS module with an Arduino UNO using UART communication:
Circuit Connections
VCC: Connect to the 5V pin of the Arduino.
GND: Connect to the GND pin of the Arduino.
TX: Connect to the RX pin (Pin 0) of the Arduino.
RX: Connect to the TX pin (Pin 1) of the Arduino.
Arduino Code
#include <SoftwareSerial.h>
// Define RX and TX pins for SoftwareSerial
SoftwareSerial GNSS(10, 11); // RX = Pin 10, TX = Pin 11
void setup() {
Serial.begin(9600); // Initialize Serial Monitor at 9600 bps
GNSS.begin(9600); // Initialize GNSS module at 9600 bps
Serial.println("Uputronic GNSS Module Test");
}
void loop() {
// Check if data is available from the GNSS module
if (GNSS.available()) {
// Read data from GNSS and send it to Serial Monitor
char c = GNSS.read();
Serial.print(c);
}
}
Notes
Use SoftwareSerial if the hardware UART pins (0 and 1) are already in use.
Ensure the GNSS module's baud rate matches the value set in the code (9600 bps by default).
Troubleshooting and FAQs
Common Issues and Solutions
No Data Output:
Ensure the module is powered correctly and the EN pin is high.
Verify the TX and RX connections between the module and the microcontroller.
Check the baud rate configuration in your code.
Poor Satellite Signal:
Ensure the antenna has a clear view of the sky.
Avoid placing the module near sources of electromagnetic interference.
Module Not Responding:
Confirm that the EN pin is pulled high.
Check the power supply voltage and current to ensure it meets the module's requirements.
Incorrect Data:
Allow sufficient time for the module to acquire satellite signals (cold start may take up to 30 seconds).
Verify the communication protocol and settings (UART or I2C).
FAQs
Q: Can the Uputronic GNSS module work indoors?
A: While the module may work indoors, signal reception is significantly reduced. For best results, use the module outdoors or near a window.
Q: How do I change the baud rate of the module?
A: You can send specific configuration commands via the UART interface to change the baud rate. Refer to the module's command set documentation for details.
Q: What is the purpose of the PPS pin?
A: The PPS (Pulse Per Second) pin provides a precise timing signal that can be used for synchronization in time-sensitive applications.
Q: Can I use the module with a 3.3V microcontroller?
A: Yes, the module supports both 3.3V and 5V logic levels, making it compatible with a wide range of microcontrollers.
By following this documentation, you can effectively integrate the Uputronic GNSS module into your projects for reliable and accurate positioning and navigation.
