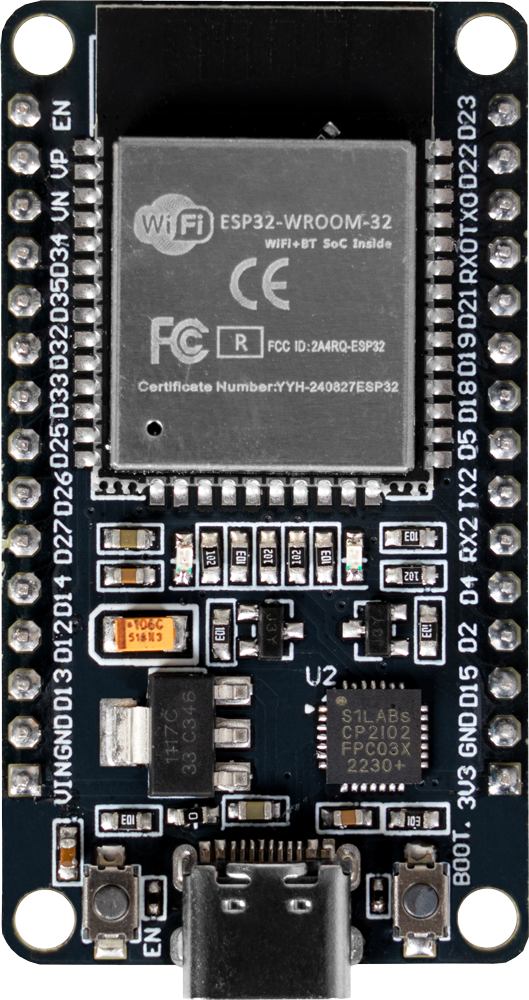

Image of esp32
Cirkit Designer LogoDesign with esp32 in Cirkit Designer

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful microcontroller for a wide range of projects.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arena 2: A project utilizing esp32 in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing esp32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing esp32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices (e.g., smart home automation, sensors, and wearables)
  • Wireless communication (Wi-Fi and Bluetooth)
  • Data logging and remote monitoring
  • Robotics and control systems
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

General Specifications

Feature Description
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE)
Operating Voltage 3.3V
GPIO Pins 34 (multipurpose, including ADC, DAC, PWM, etc.)
Communication Interfaces UART, SPI, I2C, I2S, CAN, Ethernet, SDIO
Power Consumption Ultra-low power modes available

Pin Configuration and Descriptions

The ESP32 has a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Name Functionality Description
GPIO0 Input/Output, Boot Mode Selection Used for boot mode selection during startup.
GPIO2 Input/Output, ADC, DAC, PWM General-purpose pin with ADC and DAC support.
GPIO12 Input/Output, ADC, Touch Sensor Can be used as a touch sensor or ADC input.
GPIO13 Input/Output, ADC, PWM, Touch Sensor Multipurpose pin with touch sensor capability.
GPIO21 Input/Output, I2C SDA Default I2C data pin.
GPIO22 Input/Output, I2C SCL Default I2C clock pin.
EN Enable Resets the chip when pulled low.
3V3 Power Supply Provides 3.3V output.
GND Ground Ground connection.

Note: The exact pinout may vary depending on the ESP32 module or development board you are using (e.g., ESP32-WROOM-32, ESP32-WROVER).

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32: The ESP32 operates at 3.3V. Ensure your power supply provides a stable 3.3V to the 3V3 pin. Avoid exceeding this voltage to prevent damage.
  2. Connecting Peripherals: Use the GPIO pins for connecting sensors, actuators, and other peripherals. Refer to the pin configuration table for specific pin functionalities.
  3. Programming the ESP32: The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments. Connect the ESP32 to your computer via USB and install the necessary drivers.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 GPIO pins are not 5V-tolerant. Use level shifters if interfacing with 5V devices.
  • Boot Mode: Ensure GPIO0 is pulled low during startup if you need to enter bootloader mode for programming.
  • Power Supply: Use a decoupling capacitor (e.g., 10 µF) near the power pins to stabilize the voltage supply.
  • Antenna Placement: For optimal Wi-Fi and Bluetooth performance, avoid placing metal objects or other components near the onboard antenna.

Example Code for Arduino IDE

Below is an example of how to use the ESP32 to blink an LED connected to GPIO2:

// Blink an LED connected to GPIO2 on the ESP32

#define LED_PIN 2  // Define the GPIO pin for the LED

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

Tip: Ensure the LED is connected in series with a current-limiting resistor (e.g., 220Ω) to prevent damage.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for your ESP32 module (e.g., CP2102 or CH340).
  2. Program Upload Fails

    • Check that GPIO0 is pulled low during programming.
    • Verify the correct COM port and board settings in the Arduino IDE.
  3. Wi-Fi Connection Issues

    • Ensure the Wi-Fi credentials (SSID and password) are correct.
    • Check for interference or weak signal strength near the ESP32.
  4. Random Resets or Instability

    • Verify that the power supply provides sufficient current (at least 500 mA).
    • Add decoupling capacitors to stabilize the power supply.

FAQs

Q: Can the ESP32 operate on battery power?
A: Yes, the ESP32 can be powered by batteries. Use a voltage regulator or a LiPo battery with a 3.3V output. For extended battery life, utilize the ESP32's deep sleep mode.

Q: How do I update the ESP32 firmware?
A: Firmware updates can be performed using the Espressif Flash Download Tool or via OTA (Over-The-Air) updates in your application.

Q: Is the ESP32 compatible with Arduino libraries?
A: Yes, the ESP32 is compatible with many Arduino libraries. However, some libraries may require modifications to work with the ESP32.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues with ease.
