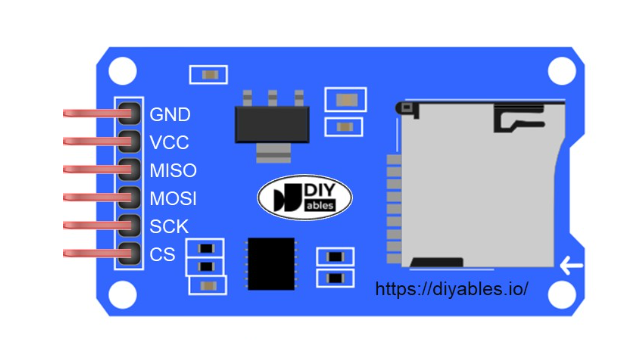

The MicroSD card reader is a compact electronic module designed to interface with MicroSD memory cards. It enables the reading and writing of data to and from MicroSD cards, which are widely used for storage in mobile devices, cameras, and embedded systems. This component is particularly useful in projects requiring additional storage or data logging capabilities.
Explore Projects Built with MicroSD card reader
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit integrates an Arduino Mega 2560 and an Arduino UNO to interface with an SD card module and an NFC/RFID reader. The Arduino Mega 2560 reads analog values from various MQ sensors and logs data to the SD card, while the Arduino UNO handles communication with the NFC/RFID reader.
This circuit consists of an Arduino UNO connected to an SD card module. The Arduino provides power and ground to the SD module and interfaces with it using SPI communication through digital pins D10 (CS), D11 (MOSI), D12 (MISO), and D13 (SCK). The setup is intended for reading from or writing to an SD card using the Arduino.
This circuit is designed to interface an Arduino UNO with a Micro SD Card Module for data storage, powered by two 18650 Li-ion batteries through a USB plug and controlled by a rocker switch. The Arduino communicates with the SD card module via SPI protocol and is also connected to the USB plug for potential data transfer or power supply.
This circuit features an Arduino UNO microcontroller interfaced with multiple peripheral devices for data collection and user interaction. It includes an RFID-RC522 module for RFID communication, a Micro SD Card Module for data storage, a fingerprint scanner for biometric input, and an LCD display for user feedback. Additional components include a piezo buzzer for audio signaling, a potentiometer for analog input, and an LED with a current-limiting resistor for visual indication.
Expanding storage for microcontroller-based projects
Technical Specifications
The MicroSD card reader module typically includes a voltage regulator and level shifters to ensure compatibility with both 3.3V and 5V systems. Below are the key technical details:
Key Specifications
Parameter
Value
Operating Voltage
3.3V to 5V
Communication Protocol
SPI (Serial Peripheral Interface)
Supported Card Types
MicroSD, MicroSDHC
Maximum Clock Speed
25 MHz
Dimensions
~20mm x 30mm x 5mm
Pin Configuration and Descriptions
Pin Name
Pin Number
Description
VCC
1
Power supply input (3.3V or 5V, depending on the module)
GND
2
Ground connection
MISO
3
Master In Slave Out - SPI data output from the MicroSD card to the host
MOSI
4
Master Out Slave In - SPI data input from the host to the MicroSD card
SCK
5
Serial Clock - SPI clock signal
CS
6
Chip Select - Activates the MicroSD card for communication
Usage Instructions
How to Use the MicroSD Card Reader in a Circuit
Power the Module: Connect the VCC pin to a 3.3V or 5V power source, depending on the module's specifications. Connect the GND pin to the ground of your circuit.
Connect SPI Pins: Interface the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on your microcontroller or development board.
Insert the MicroSD Card: Ensure the MicroSD card is properly formatted (e.g., FAT32) and securely inserted into the card slot.
Initialize the Card: Use appropriate software libraries (e.g., Arduino SD library) to initialize and communicate with the card.
Important Considerations and Best Practices
Voltage Compatibility: Ensure the module includes a voltage regulator and level shifters if using a 5V system. Directly connecting a 5V system to a 3.3V-only module can damage the MicroSD card.
Card Formatting: Format the MicroSD card to FAT16 or FAT32 for compatibility with most libraries.
Avoid Hot-Swapping: Do not insert or remove the MicroSD card while the module is powered, as this can corrupt data or damage the card.
Pull-Up Resistors: Some modules may require external pull-up resistors on the SPI lines for reliable communication.
Example Code for Arduino UNO
Below is an example of how to use the MicroSD card reader with an Arduino UNO:
#include <SPI.h>
#include <SD.h>
// Define the Chip Select (CS) pin for the MicroSD card reader
const int chipSelect = 10;
void setup() {
// Initialize serial communication for debugging
Serial.begin(9600);
while (!Serial) {
; // Wait for the serial port to connect (for native USB boards)
}
Serial.println("Initializing MicroSD card...");
// Initialize the SD card
if (!SD.begin(chipSelect)) {
Serial.println("Card initialization failed!");
return; // Stop further execution if initialization fails
}
Serial.println("Card initialized successfully.");
// Create or open a file on the MicroSD card
File dataFile = SD.open("example.txt", FILE_WRITE);
// Check if the file opened successfully
if (dataFile) {
dataFile.println("Hello, MicroSD card!"); // Write data to the file
dataFile.close(); // Close the file to save changes
Serial.println("Data written to file.");
} else {
Serial.println("Error opening file.");
}
}
void loop() {
// Nothing to do here
}
Troubleshooting and FAQs
Common Issues and Solutions
Card Initialization Fails
Cause: Incorrect wiring or incompatible card format.
Solution: Double-check the wiring and ensure the card is formatted to FAT16 or FAT32.
Data Corruption
Cause: Removing the card while the module is powered or during data transfer.
Solution: Always power down the module before removing the card.
File Not Opening
Cause: Incorrect file path or insufficient permissions.
Solution: Verify the file name and ensure the file is opened in the correct mode (e.g., FILE_WRITE for writing).
No Response from the Module
Cause: SPI communication issues or incorrect CS pin configuration.
Solution: Check the SPI connections and ensure the correct CS pin is defined in the code.
FAQs
Q: Can I use the MicroSD card reader with a 5V microcontroller?
A: Yes, most modules include a voltage regulator and level shifters for 5V compatibility. Verify your module's specifications before use.
Q: What is the maximum storage capacity supported?
A: This depends on the module and library used. Most modules support up to 32GB MicroSDHC cards formatted to FAT32.
Q: Can I use the module with other communication protocols?
A: No, the MicroSD card reader is designed to work with the SPI protocol only.
Q: How do I check if the card is full?
A: Use the SD.usedBytes() or similar functions (if supported by your library) to monitor available space.
