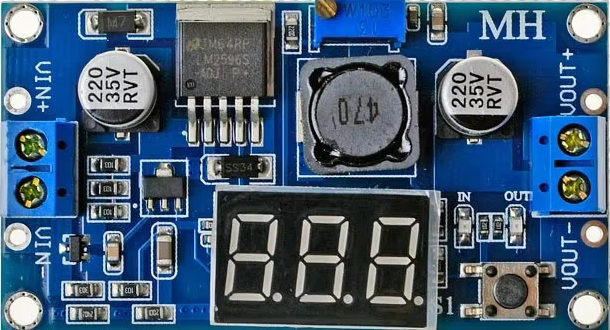

Image of regulator
Cirkit Designer LogoDesign with regulator in Cirkit Designer

Introduction

A regulator is an electronic component designed to maintain a constant output voltage or current, regardless of fluctuations in input voltage or load conditions. This ensures stable and reliable operation of electronic circuits, protecting sensitive components from damage caused by voltage variations. Regulators are widely used in power supply systems, embedded systems, and any application requiring a stable voltage source.

Explore Projects Built with regulator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Battery Charging System with XL6009 Voltage Regulator
Image of SISTEMA DE ALIMENTACION Y CARGA SENSORES DS18B20 Y SENSOR DE TURBIDEZ: A project utilizing regulator in a practical application
This circuit features a solar panel ('Do solara') connected to a voltage regulator ('XL6009 Voltage Regulator') to stabilize the output voltage. The regulated voltage is available at a terminal block ('Terminal PCB 2 Pin') for further use. Additionally, a Li-ion battery ('18650 Li-ion Battery') is connected to the solar panel for charging, with the solar panel's output also routed through the voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
LM317 Voltage Regulator Circuit for Adjustable Power Supply with Transformer and Diodes
Image of 12V BULB LIGHT DIMMER CIRCUIT: A project utilizing regulator in a practical application
This circuit is a regulated power supply that converts AC voltage to a stable DC voltage. It uses a transformer to step down the AC voltage, diodes for rectification, an electrolytic capacitor for smoothing, and an LM317 voltage regulator to provide a stable output voltage, which is adjustable via a potentiometer. The output powers a bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control Circuit with Potentiometer and Transistors
Image of STROBE LIGHTS: A project utilizing regulator in a practical application
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Voltage Regulation and Multimeter Monitoring
Image of Copy of 8 volt AC to DC convertor (1): A project utilizing regulator in a practical application
This circuit is a power supply that converts AC voltage to a regulated DC output. An AC supply is connected to a transformer, which steps down the voltage to a lower AC voltage. This lower AC voltage is then rectified by a bridge rectifier into pulsating DC, filtered by an electrolytic capacitor to reduce ripple, and finally regulated by a 7808 voltage regulator to provide a stable 8V DC output. A multimeter is connected to measure the output voltage of the regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with regulator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of SISTEMA DE ALIMENTACION Y CARGA SENSORES DS18B20 Y SENSOR DE TURBIDEZ: A project utilizing regulator in a practical application
Solar-Powered Battery Charging System with XL6009 Voltage Regulator
This circuit features a solar panel ('Do solara') connected to a voltage regulator ('XL6009 Voltage Regulator') to stabilize the output voltage. The regulated voltage is available at a terminal block ('Terminal PCB 2 Pin') for further use. Additionally, a Li-ion battery ('18650 Li-ion Battery') is connected to the solar panel for charging, with the solar panel's output also routed through the voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 12V BULB LIGHT DIMMER CIRCUIT: A project utilizing regulator in a practical application
LM317 Voltage Regulator Circuit for Adjustable Power Supply with Transformer and Diodes
This circuit is a regulated power supply that converts AC voltage to a stable DC voltage. It uses a transformer to step down the AC voltage, diodes for rectification, an electrolytic capacitor for smoothing, and an LM317 voltage regulator to provide a stable output voltage, which is adjustable via a potentiometer. The output powers a bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of STROBE LIGHTS: A project utilizing regulator in a practical application
Battery-Powered LED Control Circuit with Potentiometer and Transistors
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of 8 volt AC to DC convertor (1): A project utilizing regulator in a practical application
AC to DC Power Supply with Voltage Regulation and Multimeter Monitoring
This circuit is a power supply that converts AC voltage to a regulated DC output. An AC supply is connected to a transformer, which steps down the voltage to a lower AC voltage. This lower AC voltage is then rectified by a bridge rectifier into pulsating DC, filtered by an electrolytic capacitor to reduce ripple, and finally regulated by a 7808 voltage regulator to provide a stable 8V DC output. A multimeter is connected to measure the output voltage of the regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Power supplies for microcontrollers and digital circuits
  • Voltage stabilization in battery-powered devices
  • Protection of sensitive electronic components
  • DC-DC or AC-DC conversion systems
  • Industrial and automotive electronics

Technical Specifications

The technical specifications of a regulator vary depending on its type (e.g., linear or switching regulator) and model. Below are general specifications for a common linear voltage regulator, the LM7805, which outputs a fixed 5V:

Key Technical Details

  • Input Voltage Range: 7V to 35V
  • Output Voltage: 5V (fixed)
  • Output Current: Up to 1.5A (with proper heat dissipation)
  • Dropout Voltage: Typically 2V
  • Thermal Shutdown: Yes
  • Short-Circuit Protection: Yes
  • Operating Temperature Range: -40°C to +125°C

Pin Configuration and Descriptions

The LM7805 regulator has three pins, as described in the table below:

Pin Number Name Description
1 Input (IN) Connects to the unregulated input voltage source
2 Ground (GND) Common ground for input and output
3 Output (OUT) Provides the regulated output voltage

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage: Attach the unregulated DC voltage source to the Input (IN) pin. Ensure the input voltage is within the specified range (e.g., 7V to 35V for the LM7805).
  2. Connect the Ground: Connect the Ground (GND) pin to the circuit's ground.
  3. Connect the Output Voltage: The regulated output voltage is available at the Output (OUT) pin. Connect this pin to the load or circuit requiring a stable voltage.
  4. Add Capacitors: Place a capacitor (e.g., 0.33µF) between the Input (IN) pin and ground, and another capacitor (e.g., 0.1µF) between the Output (OUT) pin and ground. These capacitors help filter noise and improve stability.

Important Considerations and Best Practices

  • Heat Dissipation: Regulators can generate heat during operation. Use a heatsink if the regulator is expected to handle high currents or if the input voltage is significantly higher than the output voltage.
  • Input Voltage: Ensure the input voltage is at least 2V higher than the output voltage for proper operation (for linear regulators like the LM7805).
  • Load Current: Do not exceed the maximum output current rating of the regulator.
  • Bypass Capacitors: Always use the recommended capacitors to prevent oscillations and ensure stable operation.

Example: Using the LM7805 with an Arduino UNO

The LM7805 can be used to power an Arduino UNO by providing a stable 5V supply. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect a 9V battery to the Input (IN) pin of the LM7805.
  • Connect the Ground (GND) pin of the LM7805 to the battery's negative terminal and the Arduino's GND pin.
  • Connect the Output (OUT) pin of the LM7805 to the Arduino's 5V pin.

Arduino Code

// Example code to blink an LED using an Arduino UNO powered by an LM7805 regulator

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Regulator Overheating

    • Cause: Excessive input voltage or current draw.
    • Solution: Use a heatsink or reduce the input voltage. Ensure the load current is within the regulator's limits.
  2. No Output Voltage

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify the connections and ensure the input voltage is at least 2V higher than the output voltage.
  3. Output Voltage Fluctuations

    • Cause: Missing or inadequate bypass capacitors.
    • Solution: Add the recommended capacitors (e.g., 0.33µF on the input and 0.1µF on the output).
  4. Short Circuit Protection Triggered

    • Cause: A short circuit on the output.
    • Solution: Check the load for shorts and correct the issue before reconnecting.

FAQs

Q1: Can I use the LM7805 to power a 3.3V device?
A1: No, the LM7805 outputs a fixed 5V. To power a 3.3V device, use a 3.3V regulator like the LM1117-3.3.

Q2: What is the maximum input voltage for the LM7805?
A2: The maximum input voltage is 35V, but for optimal performance and heat management, keep it below 25V.

Q3: Can I use the LM7805 with an AC input?
A3: No, the LM7805 requires a DC input. Use a rectifier and filter circuit to convert AC to DC before connecting it to the regulator.

Q4: Why is my regulator outputting less than 5V?
A4: This could be due to insufficient input voltage, excessive load current, or overheating. Check the input voltage, load, and heat dissipation.

By following this documentation, you can effectively use a regulator like the LM7805 to ensure stable and reliable voltage in your electronic projects.
