How to Use XH-M604: Examples, Pinouts, and Specs

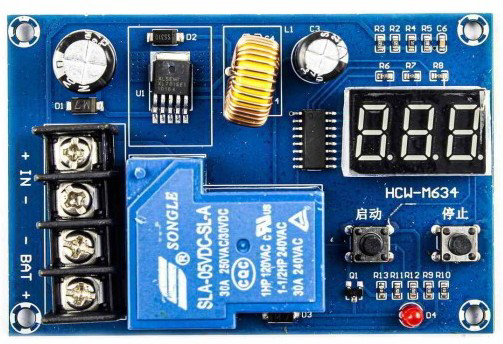

Image of XH-M604Design with XH-M604 in Cirkit Designer

Introduction

The XH-M604 is a DC-DC buck converter module designed to step down voltage from a higher input level to a lower, stable output voltage. This module is highly efficient and widely used in power supply circuits for various electronic applications. Its compact design and adjustable output make it suitable for projects requiring precise voltage regulation.

Explore Projects Built with XH-M604

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino Nano-Based Wireless Joystick and Motion Controller: A project utilizing XH-M604 in a practical application
Arduino Nano-Based Wireless Joystick and Motion Controller

This circuit features an Arduino Nano microcontroller interfaced with an HC-05 Bluetooth module, an MPU-6050 accelerometer/gyroscope, and a KY-023 Dual Axis Joystick Module. The Arduino Nano is powered by a 9V battery through a rocker switch and communicates with the HC-05 for Bluetooth connectivity, reads joystick positions from the KY-023 module via analog inputs, and communicates with the MPU-6050 over I2C to capture motion data. The circuit is likely designed for wireless control and motion sensing applications, such as a remote-controlled robot or a game controller.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The XH-M604 module is equipped with adjustable voltage regulation and high efficiency. Below are its key technical details:

Key Technical Details

Parameter Specification
Input Voltage Range 4V to 38V DC
Output Voltage Range 1.25V to 36V DC (adjustable)
Maximum Output Current 5A (with proper heat dissipation)
Efficiency Up to 96%
Switching Frequency 180 kHz
Load Regulation ±0.5%
Voltage Regulation ±0.5%
Dimensions 60mm x 30mm x 20mm

Pin Configuration and Descriptions

Pin Name Description
VIN+ Positive input voltage terminal (connect to the higher voltage source)
VIN- Negative input voltage terminal (connect to ground of the input source)
VOUT+ Positive output voltage terminal (connect to the load's positive terminal)
VOUT- Negative output voltage terminal (connect to the load's ground terminal)
Potentiometer Adjustable knob to set the desired output voltage

Usage Instructions

How to Use the XH-M604 in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of your power source to the VIN+ pin.
    • Connect the ground terminal of your power source to the VIN- pin.
    • Ensure the input voltage is within the range of 4V to 38V DC.
  2. Connect the Output Load:

    • Connect the positive terminal of your load to the VOUT+ pin.
    • Connect the ground terminal of your load to the VOUT- pin.
  3. Adjust the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage for precise adjustment.
  4. Power On:

    • Once all connections are secure, power on the input source.
    • Verify the output voltage and ensure it matches the requirements of your load.

Important Considerations and Best Practices

Example: Using XH-M604 with Arduino UNO

The XH-M604 can be used to power an Arduino UNO by stepping down a 12V input to 5V. Below is an example setup:

  1. Connect a 12V DC power source to the VIN+ and VIN- pins of the XH-M604.
  2. Adjust the potentiometer to set the output voltage to 5V.
  3. Connect the VOUT+ pin to the Arduino's 5V pin and the VOUT- pin to the Arduino's GND pin.

Here is a simple Arduino code to blink an LED, powered by the XH-M604:

// Simple LED Blink Example
// Ensure the XH-M604 is providing a stable 5V to the Arduino UNO

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
No output voltage Incorrect wiring or loose connections Verify all connections and ensure proper polarity.
Output voltage not adjustable Faulty potentiometer or incorrect setup Check the potentiometer and ensure the input voltage is higher than the desired output.
Module overheating Excessive current draw or poor cooling Reduce the load current or add a heatsink/fan for better heat dissipation.
Load not functioning properly Output voltage too low or unstable Measure the output voltage and adjust the potentiometer as needed.

FAQs

  1. Can the XH-M604 increase voltage?

    • No, the XH-M604 is a buck converter and can only step down voltage.
  2. What is the maximum current the module can handle?

    • The module can handle up to 5A with proper heat dissipation. For continuous operation, it is recommended to stay below 4A.
  3. Can I use the XH-M604 with a battery?

    • Yes, the module can be used with a battery as long as the input voltage is within the specified range (4V to 38V).
  4. How do I know if the module is overheating?

    • If the module becomes too hot to touch or the output voltage becomes unstable, it may be overheating. Use a heatsink or fan to mitigate this issue.

By following this documentation, you can effectively use the XH-M604 in your projects and troubleshoot common issues.
