How to Use 12v 7ah Battery: Examples, Pinouts, and Specs

Introduction

The 12V 7Ah battery is a rechargeable sealed lead-acid (SLA) battery that provides a nominal voltage of 12 volts and a capacity of 7 amp-hours (Ah). It is widely used in applications requiring reliable and long-lasting power, such as uninterruptible power supplies (UPS), emergency lighting, alarm systems, and small-scale renewable energy systems. Its compact size and robust design make it suitable for both stationary and portable use.

Explore Projects Built with 12v 7ah Battery

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

12V Battery-Powered Fan System

This circuit connects a 120mm 12V DC fan to a 12V 7Ah battery. The fan's positive and negative terminals are directly connected to the corresponding positive and negative terminals of the battery, allowing the fan to operate at its rated voltage.

Open Project in Cirkit Designer

Solar-Powered ESP32 IoT Device with Battery Backup

This circuit is designed to charge a 12v 7ah battery using a solar panel, with a charge controller managing the charging process to ensure safe operation. A voltage regulator is used to provide a stable 3.3V output, which is likely used to power an ESP-WROOM-32 microcontroller module. Capacitors are included for voltage smoothing and noise reduction on the power supply lines.

Open Project in Cirkit Designer

Solar-Powered Environmental Monitoring System with ESP32-C3 and MPPT Charge Control

This circuit is designed for solar energy management and monitoring. It includes a 12V AGM battery charged by solar panels through an MPPT charge controller, with voltage monitoring provided by an INA3221 sensor. Additionally, a 3.7V battery is connected to an ESP32-C3 microcontroller and an AHT21 sensor for environmental data collection, with power management handled by a Waveshare Solar Manager.

Open Project in Cirkit Designer

12V Power Supply with HX-M350 Backup Battery Switching

This circuit is designed to provide a backup power solution using a 12V 200Ah battery and a 12V power supply, with the HX-M350 module managing the switching between these power sources. The HX-M350 module automatically switches to the battery power when the main 12V power supply fails or is unavailable, ensuring uninterrupted power to the load. There is no microcontroller or additional control logic involved, indicating that the switching mechanism is likely handled entirely by the HX-M350 module itself.

Open Project in Cirkit Designer

Common Applications

• Uninterruptible Power Supplies (UPS)
• Emergency lighting systems
• Security and alarm systems
• Solar and wind energy storage
• Portable electronic devices
• Electric scooters and toys

Technical Specifications

Key Technical Details

Terminal Configuration

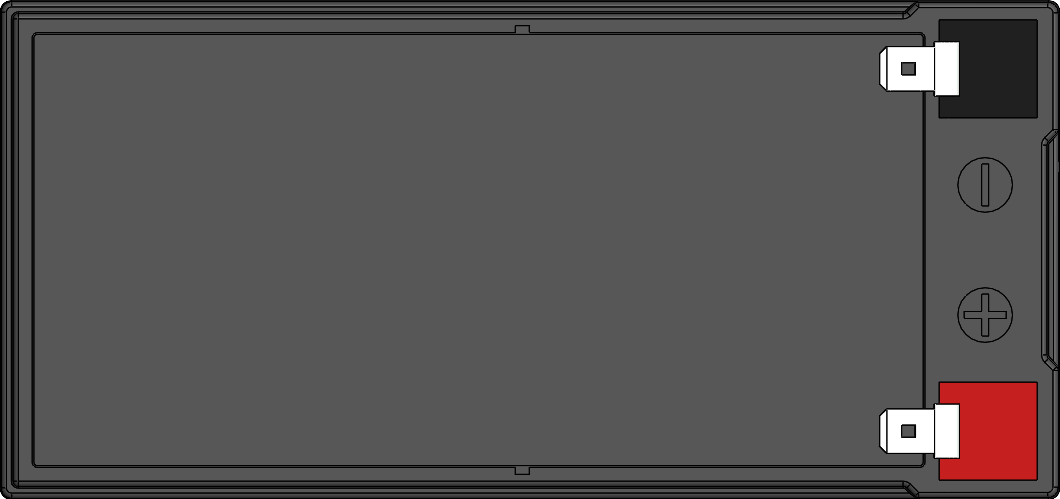

The 12V 7Ah battery typically features two terminals for electrical connections. These terminals are usually Faston tabs (F1 or F2 type). Below is a description of the terminals:

Usage Instructions

How to Use the 12V 7Ah Battery in a Circuit

1. Determine the Load Requirements: Ensure the connected load does not exceed the battery's capacity (7Ah) or discharge current rating.
2. Connect the Terminals:
   • Use appropriate connectors to attach the positive terminal (+) to the positive side of the circuit.
   • Connect the negative terminal (-) to the negative side of the circuit.
3. Charging the Battery:
   • Use a compatible lead-acid battery charger with the correct voltage and current ratings.
   • Set the charger to the recommended charging voltage (14.4V - 14.7V for cyclic use or 13.5V - 13.8V for float use).
   • Avoid overcharging or deep discharging the battery to prolong its lifespan.
4. Monitor the Battery:
   • Use a voltmeter to check the battery voltage periodically.
   • Disconnect the battery from the load if the voltage drops below 10.5V to prevent deep discharge.

Important Considerations and Best Practices

• Ventilation: Ensure proper ventilation during charging to prevent heat buildup.
• Polarity: Always double-check the polarity of the connections to avoid damage.
• Storage: Store the battery in a cool, dry place when not in use. Recharge every 3-6 months to prevent sulfation.
• Safety: Avoid short-circuiting the terminals, and handle the battery with care to prevent leaks or damage.

Example: Connecting to an Arduino UNO

The 12V 7Ah battery can be used to power an Arduino UNO via a voltage regulator or DC-DC converter to step down the voltage to 5V. Below is an example circuit and code:

Circuit Setup

1. Connect the battery's positive terminal to the input of a 12V-to-5V DC-DC converter.
2. Connect the output of the converter to the Arduino UNO's 5V and GND pins.
3. Ensure proper polarity and secure connections.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the 12V 7Ah battery and a DC-DC converter

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

FAQs

1. Can I use this battery in parallel or series?

   • Yes, you can connect multiple 12V 7Ah batteries in parallel to increase capacity or in series to increase voltage. Ensure all batteries are of the same type and charge level.

2. How long will the battery last on a full charge?

   • The runtime depends on the load. For example, a 7Ah battery can theoretically power a 7A load for 1 hour or a 1A load for 7 hours.

3. Is it safe to leave the battery on a charger?

   • Only if the charger has a float mode or automatic cutoff. Otherwise, overcharging can damage the battery.

4. What is the expected lifespan of this battery?

   • The lifespan is typically 3-5 years, depending on usage and maintenance.

By following this documentation, you can effectively use and maintain your 12V 7Ah battery for various applications.
