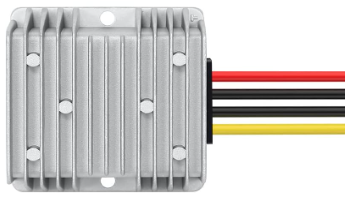

Design with DC 24v to 12v Converter 30A 360W in Cirkit DesignerThe DC 24V to 12V Converter is a high-efficiency step-down voltage regulator designed to convert a 24V DC input to a stable 12V DC output. With a maximum current capacity of 30A and a power output of up to 360W, this converter is ideal for powering 12V devices in systems where only a 24V power source is available. It is commonly used in automotive, industrial, and solar power applications.
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Open Project in Cirkit Designer
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit Designer
This circuit converts a 240V AC power source to a 12V DC output using a 12V adapter. The 240V AC power source is connected to a stopkontak, which then supplies the 12V adapter with the necessary AC voltage to produce a 12V DC output.
Open Project in Cirkit Designer
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Open Project in Cirkit Designer| Parameter | Value |
|---|---|
| Input Voltage Range | 18V - 32V DC |
| Output Voltage | 12V DC (±2% regulation) |
| Maximum Output Current | 30A |
| Maximum Power Output | 360W |
| Efficiency | ≥ 95% |
| Ripple and Noise | ≤ 200mV |
| Operating Temperature | -40°C to +85°C |
| Cooling Method | Passive (heat sink) or active (fan) depending on model |
| Protection Features | Overload, overvoltage, overtemperature, and short-circuit protection |
| Pin/Terminal | Description |
|---|---|
| Input (+) | Positive terminal for 24V DC input voltage. Connect to the 24V power source. |
| Input (-) | Negative terminal for 24V DC input voltage. Connect to the ground of the power source. |
| Output (+) | Positive terminal for 12V DC output voltage. Connect to the positive terminal of the load. |
| Output (-) | Negative terminal for 12V DC output voltage. Connect to the ground of the load. |
Input (+) terminal to the positive terminal of your 24V DC power source.Input (-) terminal to the ground of your 24V DC power source.Output (+) terminal to the positive terminal of your 12V device or load.Output (-) terminal to the ground of your 12V device or load.If you are powering an Arduino UNO and other 12V peripherals from a 24V power source, you can use this converter to step down the voltage. Below is an example circuit and Arduino code to blink an LED:
Input (+) and Input (-) terminals of the converter to the 24V power source.Output (+) terminal to the VIN pin of the Arduino UNO.Output (-) terminal to the GND pin of the Arduino UNO.// Simple LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the converter is supplying 12V to the Arduino's VIN pin.
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output pin
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
| Issue | Possible Cause | Solution |
|---|---|---|
| No output voltage | Incorrect wiring or loose connections | Verify all connections and ensure proper polarity. |
| Output voltage is unstable | Overload or insufficient input voltage | Check the load current and input voltage. Ensure they are within specifications. |
| Converter overheats during use | Poor ventilation or excessive load | Improve airflow around the converter or reduce the load current. |
| Devices connected to the output do not work | Output voltage too low or too high | Measure the output voltage and ensure it is within 12V ±2%. |
Can I use this converter with a 24V solar panel?
What happens if I exceed the 30A output current?
Can I use this converter to charge a 12V battery?
Is the converter waterproof?
This documentation provides all the necessary details to effectively use the DC 24V to 12V Converter 30A 360W in your projects.
