How to Use TTL to RS485: Examples, Pinouts, and Specs

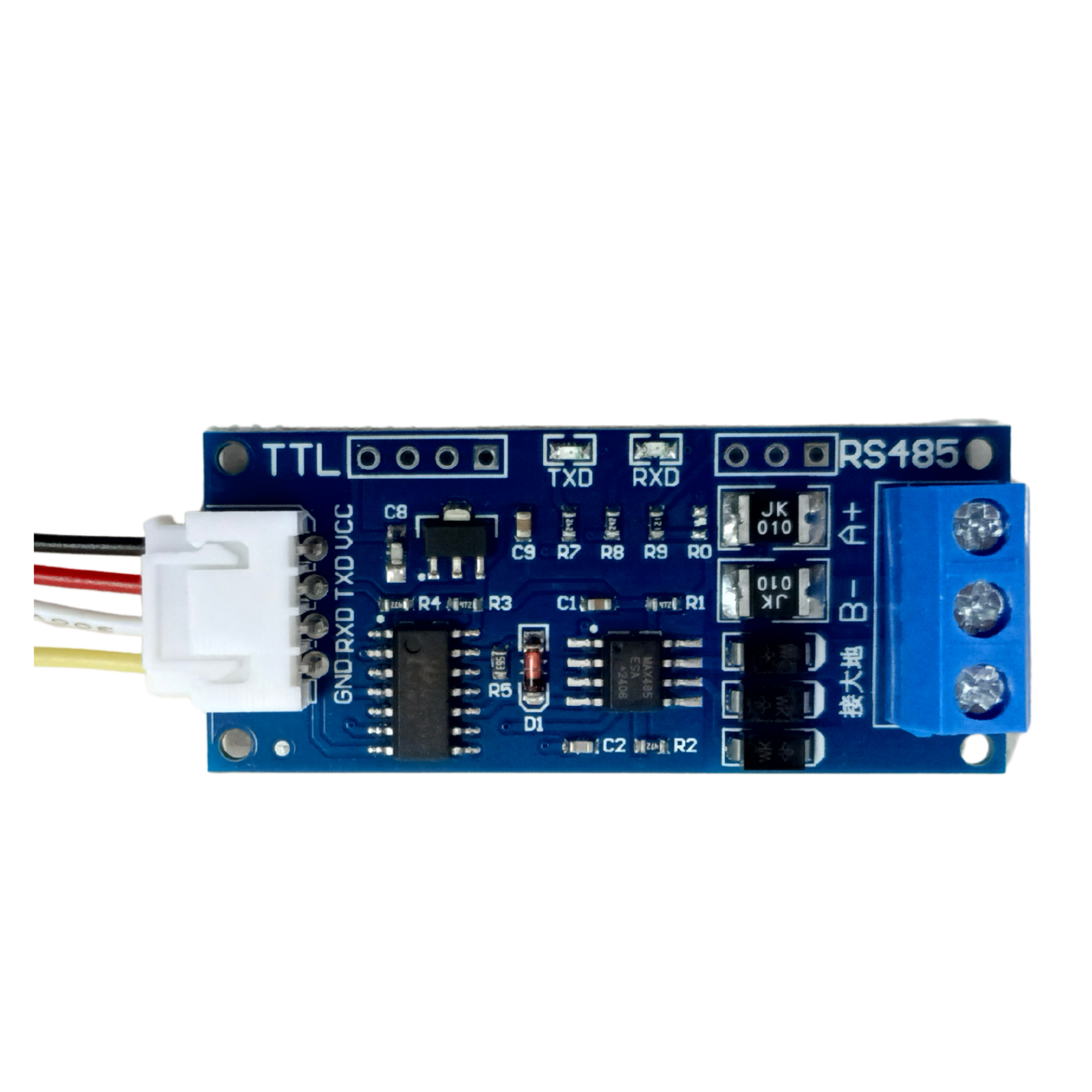

The TTL to RS485 converter, manufactured by Converter, is a versatile electronic component designed to translate TTL (Transistor-Transistor Logic) signals into RS485 signals. RS485 is a widely used standard for serial communication, particularly in industrial and long-distance applications. This converter enables reliable data transmission over twisted pair cables, making it ideal for scenarios where TTL signals need to be transmitted over extended distances with minimal interference.

• Industrial automation and control systems
• Long-distance serial communication
• Data acquisition systems
• Home automation and IoT devices
• Connecting microcontrollers (e.g., Arduino, Raspberry Pi) to RS485 networks

The TTL to RS485 converter is designed to provide seamless communication between TTL and RS485 devices. Below are the key technical details:

Note: The DE/RE pin is often used to switch between transmitting and receiving modes in half-duplex communication.

1. Power the Converter: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
2. Connect TTL Signals:
   • Connect the TXD pin of your microcontroller (e.g., Arduino) to the TXD pin of the converter.
   • Connect the RXD pin of the microcontroller to the RXD pin of the converter.
3. Connect RS485 Signals:
   • Connect the A (D+) and B (D-) pins to the RS485 bus.
   • Use twisted pair cables for the RS485 bus to minimize noise and interference.
4. Control DE/RE Pin:
   • Set the DE/RE pin HIGH to enable transmission mode.
   • Set the DE/RE pin LOW to enable reception mode.

• Termination Resistors: For long-distance communication, use a 120-ohm termination resistor across the A and B lines at both ends of the RS485 bus to prevent signal reflections.
• Baud Rate Matching: Ensure that the baud rate of the TTL device matches the baud rate of the RS485 network.
• Grounding: Connect the ground of the TTL device to the ground of the RS485 network to ensure proper signal reference.
• Half-Duplex Communication: RS485 is typically half-duplex, meaning devices cannot transmit and receive simultaneously. Use the DE/RE pin to manage this.

Below is an example of how to use the TTL to RS485 converter with an Arduino UNO:

• Connect the VCC and GND pins of the converter to the 5V and GND pins of the Arduino.
• Connect the TXD pin of the converter to the Arduino's digital pin 3.
• Connect the RXD pin of the converter to the Arduino's digital pin 2.
• Connect the DE/RE pin of the converter to the Arduino's digital pin 4.

// Include SoftwareSerial library for serial communication
#include <SoftwareSerial.h>

// Define pins for SoftwareSerial
#define RX_PIN 2  // Arduino pin connected to RXD of the converter
#define TX_PIN 3  // Arduino pin connected to TXD of the converter
#define DE_RE_PIN 4  // Arduino pin connected to DE/RE of the converter

// Create a SoftwareSerial object
SoftwareSerial RS485Serial(RX_PIN, TX_PIN);

void setup() {
  // Initialize serial communication
  Serial.begin(9600);  // For debugging via Serial Monitor
  RS485Serial.begin(9600);  // For RS485 communication

  // Set DE/RE pin as output
  pinMode(DE_RE_PIN, OUTPUT);

  // Set DE/RE to LOW (receive mode by default)
  digitalWrite(DE_RE_PIN, LOW);

  Serial.println("RS485 Communication Initialized");
}

void loop() {
  // Example: Send data over RS485
  digitalWrite(DE_RE_PIN, HIGH);  // Enable transmission mode
  RS485Serial.println("Hello, RS485!");
  digitalWrite(DE_RE_PIN, LOW);  // Switch back to receive mode

  // Example: Receive data over RS485
  if (RS485Serial.available()) {
    String receivedData = RS485Serial.readString();
    Serial.print("Received: ");
    Serial.println(receivedData);
  }

  delay(1000);  // Wait 1 second before next transmission
}

1. No Data Transmission or Reception

   • Solution: Verify all connections, especially the A (D+) and B (D-) lines. Ensure the DE/RE pin is correctly toggled between transmission and reception modes.

2. Data Corruption or Noise

   • Solution: Use twisted pair cables for the RS485 bus and add 120-ohm termination resistors at both ends of the bus.

3. Short Communication Range

   • Solution: Check the power supply voltage and ensure proper grounding. Use high-quality cables for longer distances.

4. Baud Rate Mismatch

   • Solution: Ensure the baud rate of the TTL device matches the RS485 network's baud rate.

Q: Can I use this converter with a 3.3V microcontroller?
A: Yes, the converter supports both 3.3V and 5V logic levels.

Q: How many devices can I connect to the RS485 bus?
A: RS485 supports up to 32 devices on a single bus without repeaters.

Q: Can I use this converter for full-duplex communication?
A: No, this converter is designed for half-duplex communication. For full-duplex, a different RS485 module is required.
