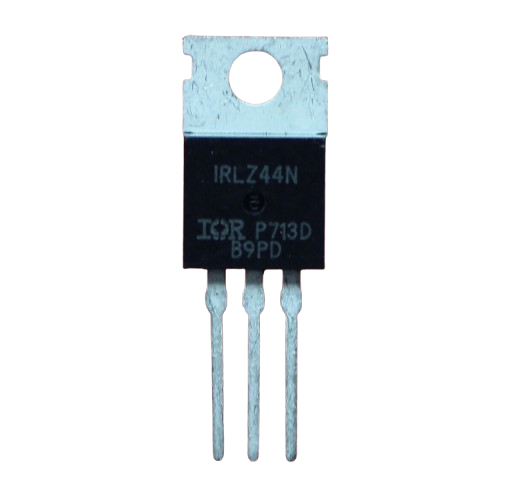

The IRLZ44N is an N-channel Power MOSFET manufactured by Infineon Technologies. It is specifically designed for high-speed switching applications and features a low on-resistance, making it highly efficient for power management in electronic circuits. One of its key advantages is its logic-level gate threshold, which allows it to be directly driven by microcontrollers such as Arduino boards.
Explore Projects Built with IRLZ44N
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
This circuit is designed to interface an Arduino Nano with an IR sensor for input, a SIM800L module for GSM communication, and an I2C LCD screen for output display. It includes a 3.7V battery with a TP4056 charging module and a PowerBoost 1000 Basic for power management. The Arduino's code is currently a placeholder, suggesting that the user-defined functionality is pending.
This circuit is a robotic control system that uses multiple IR sensors for line detection and obstacle avoidance, powered by a 3S LiPo battery. The Cytron URC10 motor driver, controlled by a microcontroller, drives two GM25 DC motors based on input from the sensors and a rocker switch, with a 7-segment panel voltmeter displaying the battery voltage.
This circuit is an emergency alert system that uses a NUCLEO-F072RB microcontroller to send SMS alerts and make calls via a SIM800L GSM module, while obtaining location data from a GPS NEO 6M module. The system is powered by a Li-ion battery and includes a TP4056 module for battery charging and protection, with a rocker switch to control power to the microcontroller.
Below are the key technical details of the IRLZ44N:
Parameter
Value
Manufacturer
Infineon Technologies
Part ID
N-Channel Power MOSFET
Maximum Drain-Source Voltage (VDS)
55V
Maximum Continuous Drain Current (ID)
47A
Gate Threshold Voltage (VGS(th))
1V to 2V
Maximum Gate-Source Voltage (VGS)
±16V
On-Resistance (RDS(on))
0.022Ω (typical) at VGS = 5V
Power Dissipation (PD)
94W
Operating Temperature Range
-55°C to +175°C
Package Type
TO-220
Pin Configuration and Descriptions
The IRLZ44N comes in a TO-220 package with three pins. The pin configuration is as follows:
Pin Number
Pin Name
Description
1
Gate (G)
Controls the MOSFET's switching state. A voltage applied here turns the MOSFET on or off.
2
Drain (D)
The main current-carrying terminal. Connects to the load.
3
Source (S)
The return path for current. Typically connected to ground.
Usage Instructions
How to Use the IRLZ44N in a Circuit
Gate Control: Apply a voltage between 5V and 10V to the Gate (Pin 1) to turn the MOSFET on. Ensure the Gate-Source voltage (VGS) does not exceed ±16V.
Load Connection: Connect the load (e.g., motor, LED, or other devices) between the Drain (Pin 2) and the positive supply voltage.
Source Connection: Connect the Source (Pin 3) to the ground of the circuit.
Gate Resistor: Use a resistor (typically 220Ω to 1kΩ) between the microcontroller output and the Gate to limit inrush current and protect the microcontroller.
Flyback Diode: For inductive loads (e.g., motors), add a flyback diode across the load to protect the MOSFET from voltage spikes.
Important Considerations and Best Practices
Heat Dissipation: The IRLZ44N can handle high currents, but it may generate heat. Use a heatsink or active cooling if the power dissipation exceeds safe limits.
Logic-Level Compatibility: The IRLZ44N is logic-level compatible, meaning it can be driven directly by a 5V microcontroller like an Arduino.
Avoid Overvoltage: Ensure the Drain-Source voltage (VDS) does not exceed 55V to prevent damage.
Switching Speed: Minimize parasitic capacitance and inductance in the circuit to achieve optimal switching performance.
Example: Using the IRLZ44N with an Arduino UNO
Below is an example of controlling a DC motor using the IRLZ44N and an Arduino UNO:
// Define the pin connected to the MOSFET Gate
const int mosfetGatePin = 9;
void setup() {
pinMode(mosfetGatePin, OUTPUT); // Set the MOSFET Gate pin as an output
}
void loop() {
digitalWrite(mosfetGatePin, HIGH); // Turn the MOSFET on (motor runs)
delay(2000); // Keep the motor running for 2 seconds
digitalWrite(mosfetGatePin, LOW); // Turn the MOSFET off (motor stops)
delay(2000); // Wait for 2 seconds before repeating
}
Note: Ensure the motor's current and voltage ratings are within the IRLZ44N's specifications.
Troubleshooting and FAQs
Common Issues and Solutions
MOSFET Not Turning On
Cause: Insufficient Gate voltage.
Solution: Ensure the Gate voltage is at least 5V. Check the microcontroller's output voltage.
Excessive Heat Generation
Cause: High current or inadequate cooling.
Solution: Use a heatsink or active cooling. Verify that the load current is within the MOSFET's limits.
MOSFET Fails to Switch Off
Cause: Gate voltage not fully discharged.
Solution: Add a pull-down resistor (10kΩ) between the Gate and Source to ensure the Gate voltage drops to 0V when the microcontroller output is LOW.
Voltage Spikes Damaging the MOSFET
Cause: Inductive load without a flyback diode.
Solution: Add a flyback diode across the load to suppress voltage spikes.
FAQs
Q1: Can the IRLZ44N be used with a 3.3V microcontroller?
A1: While the IRLZ44N is a logic-level MOSFET, it performs best with a Gate voltage of 5V or higher. For 3.3V microcontrollers, consider using a MOSFET driver or a different MOSFET with a lower Gate threshold voltage.
Q2: What is the maximum PWM frequency the IRLZ44N can handle?
A2: The IRLZ44N can handle PWM frequencies up to several kHz. However, the exact limit depends on the circuit design, including Gate drive strength and parasitic capacitance.
Q3: Can I use the IRLZ44N for AC applications?
A3: The IRLZ44N is designed for DC applications. For AC applications, consider using a TRIAC or an IGBT.
Q4: How do I calculate the required heatsink size?
A4: Use the formula: P = I^2 * R_DS(on)
where P is the power dissipation. Select a heatsink with a thermal resistance low enough to keep the MOSFET within its safe operating temperature range.
By following these guidelines, the IRLZ44N can be effectively used in a wide range of applications.
