How to Use 12V 4.5AH BATTERY: Examples, Pinouts, and Specs

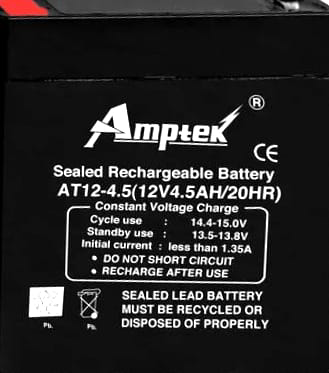

The 12V 4.5AH battery is a sealed lead-acid (SLA) rechargeable battery that provides a nominal voltage of 12 volts and a capacity of 4.5 ampere-hours (Ah). This battery is widely used in applications requiring reliable and long-lasting power, such as uninterruptible power supplies (UPS), emergency lighting, alarm systems, and small-scale renewable energy systems. Its compact size and robust design make it suitable for both stationary and portable use.

• Backup power for UPS systems
• Emergency lighting systems
• Security and alarm systems
• Small solar power setups
• Portable electronic devices
• Robotics and hobbyist projects

The following table outlines the key technical specifications of the 12V 4.5AH battery:

The 12V 4.5AH battery typically features two terminals for connection:

1. Determine the Load Requirements: Ensure the connected load does not exceed the battery's capacity or discharge current rating.
2. Connect the Terminals:
   • Use appropriate connectors to attach the positive terminal (+) to the positive side of the circuit.
   • Connect the negative terminal (-) to the ground or negative side of the circuit.
3. Charging the Battery:
   • Use a compatible SLA battery charger with the correct voltage and current ratings.
   • Set the charger to the recommended charging voltage (14.4V - 15.0V for cyclic use or 13.5V - 13.8V for float use).
4. Monitor the Battery:
   • Avoid overcharging or deep discharging the battery, as this can reduce its lifespan.
   • Use a battery management system (BMS) or voltage monitor for added safety.

• Avoid Over-Discharge: Do not allow the battery voltage to drop below 10.5V, as this can cause permanent damage.
• Temperature Management: Operate the battery within the specified temperature range to prevent performance degradation.
• Storage: If storing the battery for extended periods, ensure it is fully charged and stored in a cool, dry place. Recharge every 3-6 months to prevent sulfation.
• Safety Precautions: Handle the battery with care to avoid short circuits, and do not expose it to fire or water.

The 12V 4.5AH battery can be used to power an Arduino UNO via a voltage regulator or DC-DC converter to step down the voltage to 5V. Below is an example circuit and code:

1. Connect the battery's positive terminal to the input of a 12V-to-5V DC-DC converter.
2. Connect the output of the converter to the Arduino UNO's 5V pin and GND pin.
3. Ensure proper polarity to avoid damaging the Arduino.

// Example code to blink an LED using an Arduino UNO powered by a 12V 4.5AH battery

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Can I use this battery in a solar power system?

   • Yes, the 12V 4.5AH battery is suitable for small solar setups. Use a charge controller to regulate charging.

2. How long will the battery last on a full charge?

   • The runtime depends on the load. For example, a 1A load will last approximately 4.5 hours (4.5Ah ÷ 1A).

3. Is it safe to mount the battery in any orientation?

   • Yes, sealed lead-acid batteries can be mounted in any orientation except upside down.

4. What is the expected lifespan of this battery?

   • The battery typically lasts 3-5 years with proper care and usage.

By following the guidelines and best practices outlined in this documentation, you can ensure optimal performance and longevity of your 12V 4.5AH battery.
