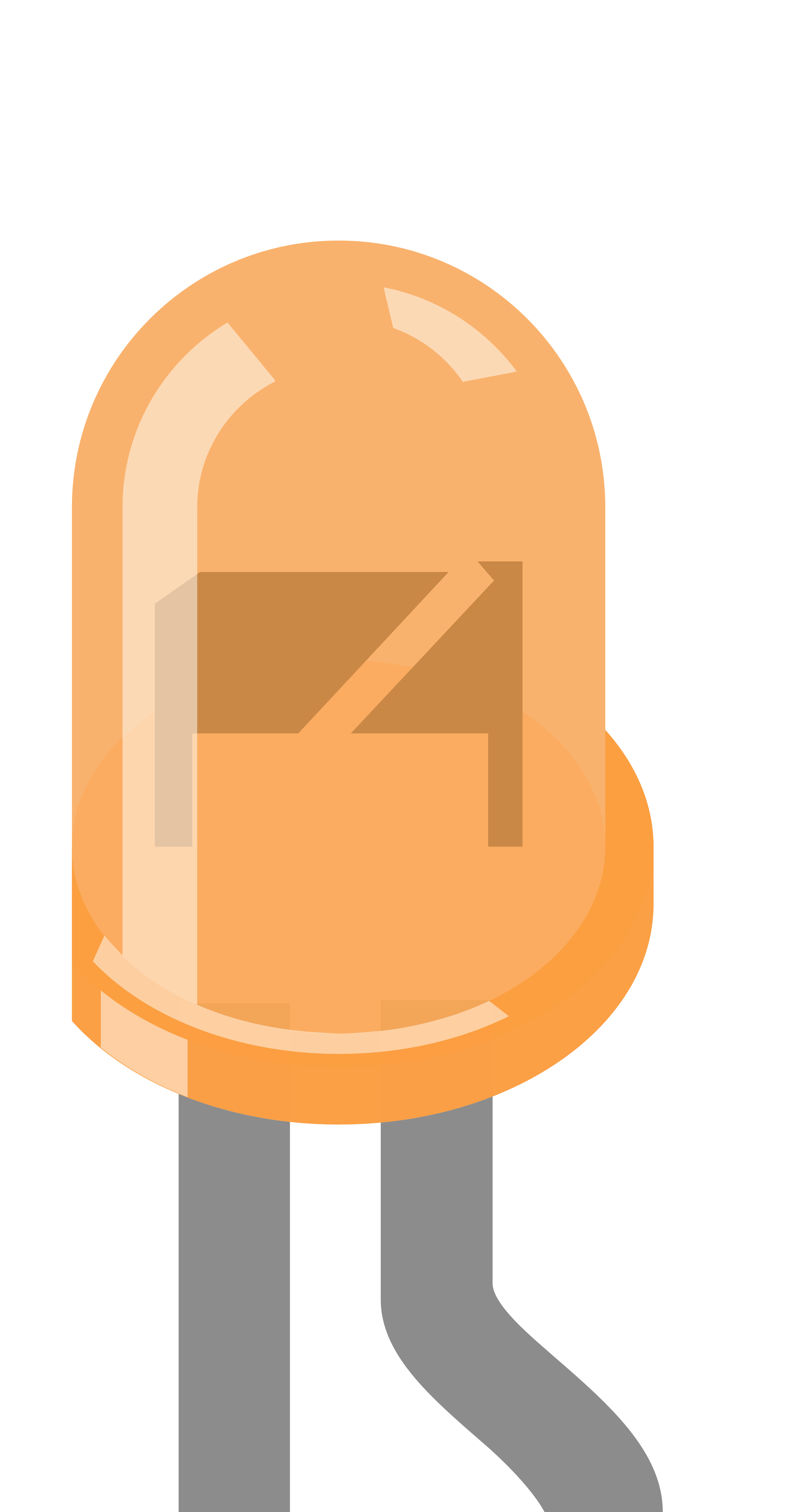

How to Use LED: Two Pin (orange): Examples, Pinouts, and Specs

A light-emitting diode (LED) is a semiconductor device that emits light when an electric current flows through it. The two-pin orange LED is a common type of LED that emits a warm orange light, making it ideal for use in displays, status indicators, and decorative lighting. Its compact size, low power consumption, and long lifespan make it a versatile component in a wide range of electronic applications.

• Power and status indicators in electronic devices
• Signal and warning lights
• Decorative lighting and displays
• DIY electronics and hobby projects

Below are the key technical details for the two-pin orange LED:

The two-pin orange LED has a simple pinout:

Note: If the pins are trimmed or difficult to distinguish, the flat edge on the LED casing indicates the cathode (-).

1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with it. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ]

   • (V_{supply}): Supply voltage
   • (V_f): Forward voltage of the LED (1.8V to 2.2V)
   • (I_f): Desired forward current (typically 20mA or 0.02A)

   For example, if (V_{supply} = 5V) and (V_f = 2V), the resistor value is: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (+) to the positive terminal of the power supply through the resistor.
   • Connect the cathode (-) to the ground.

3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED should emit a warm orange light.

• Polarity: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
• Current Limiting: Always use a resistor to limit the current through the LED. Exceeding the maximum current rating can permanently damage the LED.
• Heat Management: While LEDs generate minimal heat, ensure proper ventilation in high-power applications.

The two-pin orange LED can be easily interfaced with an Arduino UNO. Below is an example circuit and code to blink the LED:

• Connect the anode (+) of the LED to Arduino digital pin 13 through a 220Ω resistor.
• Connect the cathode (-) of the LED to the Arduino GND pin.

// LED Blink Example for Two-Pin Orange LED
// Connect the LED anode (+) to pin 13 through a 220Ω resistor
// Connect the LED cathode (-) to GND

const int ledPin = 13; // Pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Tip: Adjust the delay() values to change the blinking speed.

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.
   • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.

2. LED is Dim:

   • Cause: Resistor value too high.
   • Solution: Recalculate the resistor value to allow more current (but within the LED's limits).

3. LED Burns Out:

   • Cause: No current-limiting resistor or excessive current.
   • Solution: Always use a resistor to limit the current to 20mA.

4. Flickering LED:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

• Q: Can I use the LED without a resistor?
  A: No, using the LED without a resistor can cause excessive current flow, damaging the LED.

• Q: What happens if I reverse the polarity?
  A: The LED will not light up. In some cases, prolonged reverse voltage may damage the LED.

• Q: Can I use this LED with a 12V power supply?
  A: Yes, but you must calculate and use an appropriate resistor to limit the current.

• Q: How do I know the LED's polarity if the pins are trimmed?
  A: Look for the flat edge on the LED casing, which indicates the cathode (-).

By following this documentation, you can effectively use the two-pin orange LED in your electronic projects.
