How to Use Nano V3.0 Super Mini: Examples, Pinouts, and Specs

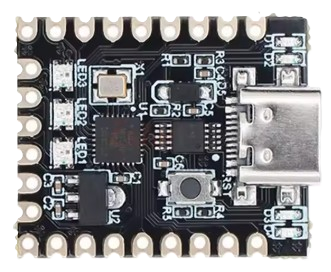

Image of Nano V3.0 Super Mini
Cirkit Designer LogoDesign with Nano V3.0 Super Mini in Cirkit Designer

Introduction

The Nano V3.0 Super Mini, manufactured by Estardyn, is a compact microcontroller board based on the ATmega328P microcontroller. It features USB connectivity for easy programming and a small form factor, making it ideal for embedded systems and space-constrained projects. This board is designed to provide the functionality of an Arduino Nano while being even more compact, making it a versatile choice for hobbyists, students, and professionals.

Explore Projects Built with Nano V3.0 Super Mini

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Beelink Mini S12 N95 and Arduino UNO Based Fingerprint Authentication System with ESP32 CAM
Image of design 3: A project utilizing Nano V3.0 Super Mini in a practical application
This circuit features a Beelink MINI S12 N95 computer connected to a 7-inch display via HDMI for video output and two USB connections for power and touch screen functionality. An Arduino UNO is interfaced with a fingerprint scanner for biometric input. The Beelink MINI S12 N95 is powered by a PC power supply, which in turn is connected to a 240V power source. Additionally, an ESP32 CAM module is powered and programmed via a USB plug and an FTDI programmer, respectively, for wireless camera capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Nano V3.0 Super Mini in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Smart Display with RGB LED and Buzzer
Image of my project: A project utilizing Nano V3.0 Super Mini in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller that controls a buzzer, an RGB LED, and an OLED display. The microcontroller drives the buzzer and RGB LED through its digital pins, while the OLED display is interfaced via I2C. The circuit is designed for applications requiring visual and auditory feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Controlled LED Display with RTC and Humidity Sensing
Image of Alarm Clock: A project utilizing Nano V3.0 Super Mini in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to an LED dot display, a real-time clock (RTC DS3231), and a humidity and temperature sensor (SHT21). The microcontroller communicates with the RTC and SHT21 via I2C (using A4 and A5 as SDA and SCL lines, respectively), and it controls the LED display through SPI-like signals (using D10, D11, and D12 for DIN, CS, and CLK). The circuit is designed to display time and environmental data on the LED display, with all components sharing a common power supply and ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Nano V3.0 Super Mini

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of design 3: A project utilizing Nano V3.0 Super Mini in a practical application
Beelink Mini S12 N95 and Arduino UNO Based Fingerprint Authentication System with ESP32 CAM
This circuit features a Beelink MINI S12 N95 computer connected to a 7-inch display via HDMI for video output and two USB connections for power and touch screen functionality. An Arduino UNO is interfaced with a fingerprint scanner for biometric input. The Beelink MINI S12 N95 is powered by a PC power supply, which in turn is connected to a 240V power source. Additionally, an ESP32 CAM module is powered and programmed via a USB plug and an FTDI programmer, respectively, for wireless camera capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Nano V3.0 Super Mini in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of my project: A project utilizing Nano V3.0 Super Mini in a practical application
Arduino Nano Smart Display with RGB LED and Buzzer
This circuit features a Nano 3.0 ATmega328P microcontroller that controls a buzzer, an RGB LED, and an OLED display. The microcontroller drives the buzzer and RGB LED through its digital pins, while the OLED display is interfaced via I2C. The circuit is designed for applications requiring visual and auditory feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm Clock: A project utilizing Nano V3.0 Super Mini in a practical application
Arduino Nano-Controlled LED Display with RTC and Humidity Sensing
This circuit features a Nano 3.0 ATmega328P microcontroller connected to an LED dot display, a real-time clock (RTC DS3231), and a humidity and temperature sensor (SHT21). The microcontroller communicates with the RTC and SHT21 via I2C (using A4 and A5 as SDA and SCL lines, respectively), and it controls the LED display through SPI-like signals (using D10, D11, and D12 for DIN, CS, and CLK). The circuit is designed to display time and environmental data on the LED display, with all components sharing a common power supply and ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of IoT devices
  • Robotics and automation systems
  • Wearable electronics
  • Sensor data acquisition and processing
  • Educational projects and DIY electronics

Technical Specifications

The Nano V3.0 Super Mini is packed with features that make it a powerful yet compact microcontroller board. Below are its key technical details:

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (via USB) 5V
Input Voltage (VIN pin) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-USB
Dimensions 43 mm x 18 mm

Pin Configuration and Descriptions

The Nano V3.0 Super Mini has a total of 30 pins, including power, digital, and analog pins. Below is the pinout description:

Pin Type Description
VIN Power Input voltage to the board (7-12V).
GND Power Ground pins.
5V Power Regulated 5V output from the onboard regulator.
3.3V Power Regulated 3.3V output (limited current).
A0-A7 Analog Input Analog input pins (10-bit resolution).
D0-D13 Digital I/O Digital input/output pins. D3, D5, D6, D9, D10, and D11 support PWM.
RX (D0) Digital I/O UART Receive pin for serial communication.
TX (D1) Digital I/O UART Transmit pin for serial communication.
RST Reset Resets the microcontroller.
ICSP Programming In-Circuit Serial Programming header for flashing firmware.

Usage Instructions

The Nano V3.0 Super Mini is easy to use and compatible with the Arduino IDE. Follow the steps below to get started:

Step 1: Install the Arduino IDE

  1. Download and install the latest version of the Arduino IDE from arduino.cc.
  2. Ensure the correct USB driver for the Nano V3.0 Super Mini is installed. The board typically uses the CH340 USB-to-serial driver, which can be downloaded from the manufacturer's website.

Step 2: Connect the Board

  1. Use a Mini-USB cable to connect the Nano V3.0 Super Mini to your computer.
  2. Open the Arduino IDE and select the correct board and port:
    • Go to Tools > Board > Arduino Nano.
    • Go to Tools > Processor > ATmega328P (Old Bootloader) (if applicable).
    • Go to Tools > Port and select the port corresponding to the Nano.

Step 3: Upload a Sketch

  1. Write or load a sketch in the Arduino IDE. For example, the following code blinks an LED connected to pin D13:
// Blink an LED connected to pin D13
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}
  1. Click the Upload button in the Arduino IDE to upload the sketch to the board.

Important Considerations and Best Practices

  • Ensure the input voltage does not exceed the specified range (7-12V on VIN).
  • Use a proper Mini-USB cable for reliable data transfer and power supply.
  • Avoid drawing excessive current from the 3.3V pin, as it has limited output capacity.
  • Use decoupling capacitors when connecting sensors or modules to reduce noise.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the CH340 driver is installed correctly.
    • Try using a different USB cable or port.
  2. Error uploading sketches:

    • Verify the correct board and processor are selected in the Arduino IDE.
    • Check the USB connection and ensure the board is powered.
  3. The board resets unexpectedly:

    • Ensure the power supply is stable and within the specified range.
    • Avoid drawing excessive current from the board.
  4. Analog readings are unstable:

    • Use proper grounding and shielding for analog sensors.
    • Add decoupling capacitors near the sensor connections.

FAQs

  1. Can I power the Nano V3.0 Super Mini with a battery?

    • Yes, you can power the board using a 7-12V battery connected to the VIN pin.
  2. Is the Nano V3.0 Super Mini compatible with Arduino libraries?

    • Yes, it is fully compatible with Arduino libraries and the Arduino IDE.
  3. What is the difference between the Nano V3.0 Super Mini and the standard Arduino Nano?

    • The Nano V3.0 Super Mini is more compact and may use the CH340 USB-to-serial chip instead of the FTDI chip found on some Arduino Nano boards.

By following this documentation, you can effectively use the Nano V3.0 Super Mini in your projects and troubleshoot common issues.
