How to Use ESP32-S3 CAM Development Board with OV3660 Camera Module: Examples, Pinouts, and Specs

Introduction

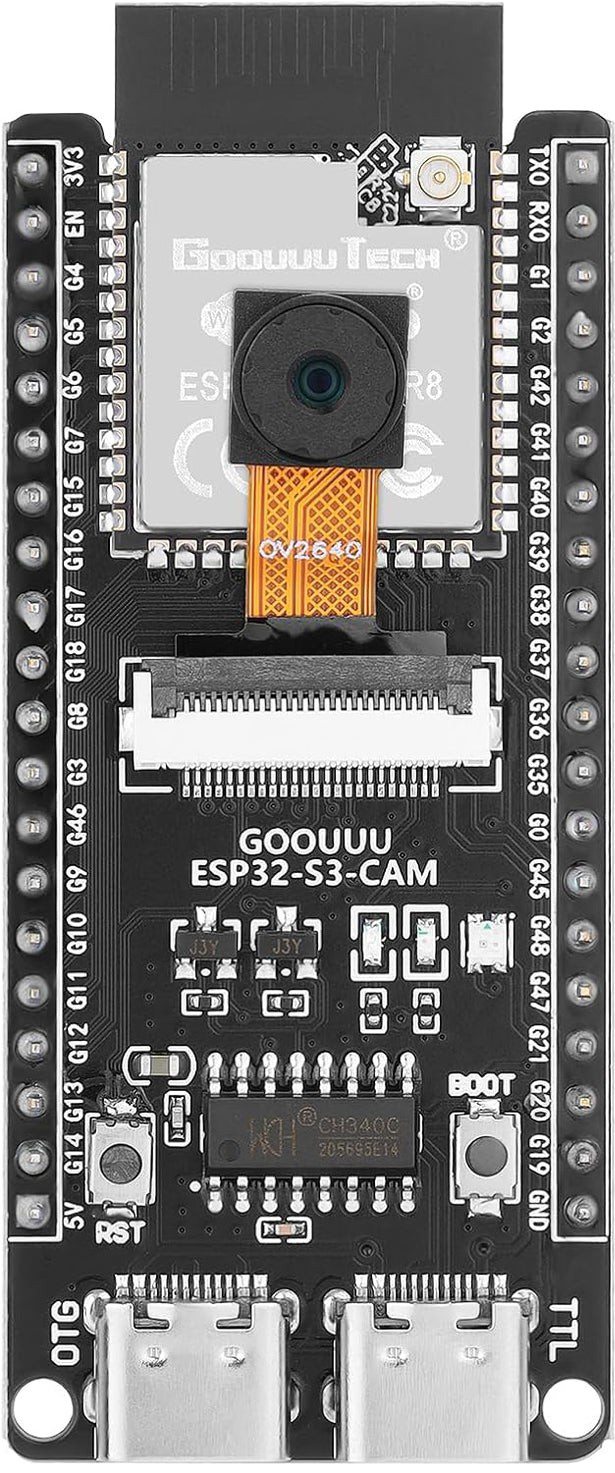

The ESP32-S3 CAM Development Board (Manufacturer Part ID: N16R8) by Espressif is a powerful and versatile development platform designed for IoT applications. It features the ESP32-S3 microcontroller, which integrates Wi-Fi and Bluetooth connectivity, and an OV3660 camera module for high-quality image capture and processing. This board is ideal for projects involving real-time video streaming, image recognition, and edge AI applications.

Explore Projects Built with ESP32-S3 CAM Development Board with OV3660 Camera Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

ESP32 CAM Wi-Fi Controlled Camera with FTDI Programmer

This circuit consists of an ESP32 CAM module connected to an FTDI Programmer for power and serial communication. The ESP32 CAM is programmed to capture images and stream them over WiFi, acting as a web server to provide live video feed.

Open Project in Cirkit Designer

ESP32 CAM Wi-Fi Controlled Camera with FTDI Programmer

This circuit consists of an ESP32 CAM module connected to an FTDI Programmer for power and serial communication. The ESP32 CAM is programmed to capture images and stream them over WiFi, acting as a web server to provide a live video feed.

Open Project in Cirkit Designer

ESP32 CAM Wi-Fi Controlled Live Video Streamer with FTDI Programmer

This circuit consists of an ESP32 CAM module connected to an FTDI Programmer for power and serial communication. The ESP32 CAM is programmed to capture images and stream them over WiFi, acting as a web server to provide a live video feed.

Open Project in Cirkit Designer

ESP32-Controlled OLED Display and TTL Serial Camera Interface

This circuit features an ESP32 microcontroller connected to a TTL Serial JPEG Camera and a 0.96" OLED display. The ESP32 is configured to communicate with the camera over serial connections (TX/RX) to capture and possibly process images. Additionally, the ESP32 drives the OLED display via I2C (SCK/SDA) to show information or images to the user.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Smart home devices (e.g., security cameras, video doorbells)
• IoT-enabled surveillance systems
• Real-time video streaming and monitoring
• Image recognition and processing for AI/ML applications
• Robotics and automation systems
• Educational and prototyping projects

---

Technical Specifications

Key Technical Details

Pin Configuration and Descriptions

The ESP32-S3 CAM Development Board has a variety of pins for interfacing with peripherals. Below is the pinout description:

---

Usage Instructions

How to Use the Component in a Circuit

1. Powering the Board:

   • Connect the board to a 5V power source via the USB-C port or an external power supply.
   • Ensure the power supply provides sufficient current (at least 500mA) for stable operation.

2. Connecting the Camera:

   • The OV3660 camera module is pre-attached to the board. Ensure the ribbon cable is securely connected to the camera interface.

3. Programming the Board:

   • Use the Arduino IDE or Espressif's ESP-IDF for programming. Install the necessary ESP32-S3 board support package.
   • Connect the board to your computer via USB-C and select the appropriate COM port in your development environment.

4. Basic Circuit Example:

   • Connect peripherals (e.g., sensors, actuators) to the GPIO pins as needed.
   • Use pull-up or pull-down resistors for GPIO pins if required.

Important Considerations and Best Practices

• Power Supply: Always use a stable power source to avoid unexpected resets or malfunctions.
• Camera Initialization: Ensure the camera is properly initialized in your code before capturing images or streaming video.
• GPIO Voltage Levels: The GPIO pins operate at 3.3V logic levels. Avoid applying higher voltages to prevent damage.
• Heat Management: The ESP32-S3 may generate heat during operation. Ensure adequate ventilation or use a heatsink if necessary.

Example Code for Arduino IDE

Below is an example code snippet to initialize the camera and capture an image:

#include "esp_camera.h"

// Camera configuration for the OV3660 module
#define PWDN_GPIO_NUM    -1  // Power down pin (not used)
#define RESET_GPIO_NUM   12  // Reset pin
#define XCLK_GPIO_NUM    0   // XCLK pin
#define SIOD_GPIO_NUM    18  // I2C data pin
#define SIOC_GPIO_NUM    23  // I2C clock pin
#define Y9_GPIO_NUM      36  // Camera data pins
#define Y8_GPIO_NUM      37
#define Y7_GPIO_NUM      38
#define Y6_GPIO_NUM      39
#define Y5_GPIO_NUM      35
#define Y4_GPIO_NUM      34
#define Y3_GPIO_NUM      21
#define Y2_GPIO_NUM      19
#define VSYNC_GPIO_NUM   25  // VSYNC pin
#define HREF_GPIO_NUM    26  // HREF pin
#define PCLK_GPIO_NUM    27  // PCLK pin

void setup() {
  Serial.begin(115200);

  // Camera configuration structure
  camera_config_t config;
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;
  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;
  config.pin_sscb_sda = SIOD_GPIO_NUM;
  config.pin_sscb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;
  config.xclk_freq_hz = 20000000;  // 20 MHz XCLK
  config.pixel_format = PIXFORMAT_JPEG;  // Output format

  // Initialize the camera
  if (esp_camera_init(&config) != ESP_OK) {
    Serial.println("Camera initialization failed!");
    while (true);
  }
  Serial.println("Camera initialized successfully!");
}

void loop() {
  // Capture an image
  camera_fb_t *fb = esp_camera_fb_get();
  if (!fb) {
    Serial.println("Failed to capture image!");
    return;
  }

  Serial.printf("Captured image size: %d bytes\n", fb->len);
  esp_camera_fb_return(fb);  // Return the frame buffer to free memory
  delay(5000);  // Wait 5 seconds before capturing the next image
}

---

Troubleshooting and FAQs

Common Issues and Solutions

1. Camera Initialization Fails:

   • Ensure the camera ribbon cable is securely connected.
   • Verify the camera configuration pins in your code match the board's pinout.

2. Board Not Detected by Computer:

   • Check the USB cable for proper data transfer capability.
   • Ensure the correct drivers for the ESP32-S3 are installed on your computer.

3. Image Quality is Poor:

   • Adjust the camera settings (e.g., resolution, brightness) in your code.
   • Clean the camera lens to remove dust or smudges.

4. Wi-Fi Connection Issues:

   • Verify the Wi-Fi credentials in your code.
   • Ensure the board is within range of the Wi-Fi router.

FAQs

• Can I use this board for AI/ML applications?
  Yes, the ESP32-S3 supports AI/ML frameworks like TensorFlow Lite Micro for edge computing tasks.

• **What is the maximum resolution
