How to Use LCD-16X2: Examples, Pinouts, and Specs

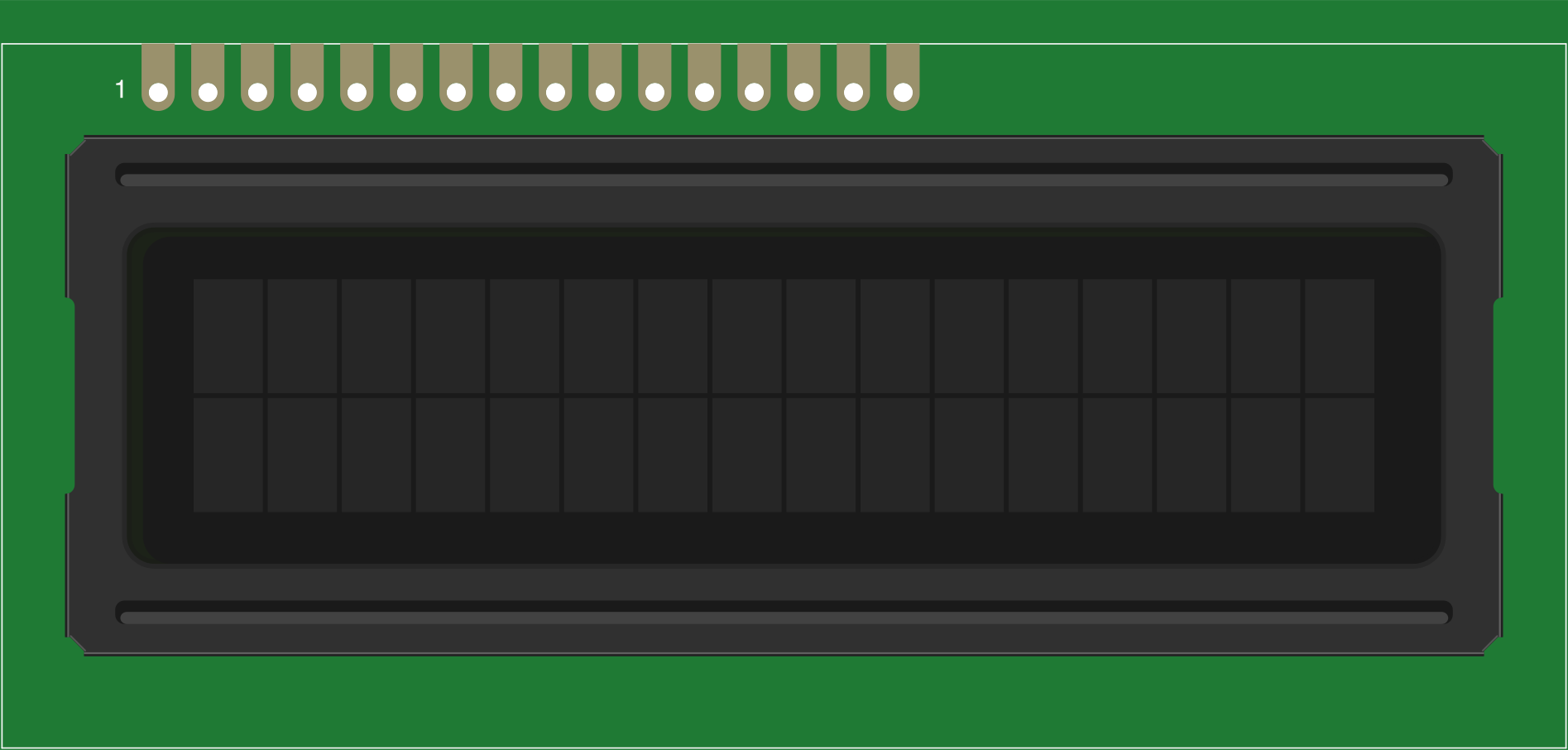

The LCD-16X2 is a 16-character by 2-line Liquid Crystal Display (LCD) module widely used in electronic projects for displaying alphanumeric characters and symbols. It is based on the HD44780 controller, which makes it easy to interface with most microcontrollers, including Arduino, Raspberry Pi, and other development boards. The module features a backlight for improved visibility and adjustable contrast via a potentiometer.

• Displaying sensor data in embedded systems
• User interfaces for DIY electronics projects
• Menu systems in microcontroller-based devices
• Real-time clocks and timers
• Educational and prototyping purposes

• Display Type: 16 characters x 2 lines
• Controller: HD44780 or compatible
• Operating Voltage: 4.7V to 5.3V
• Current Consumption: ~1mA (without backlight), ~15mA (with backlight)
• Character Size: 5x8 dot matrix
• Interface: Parallel (4-bit or 8-bit mode)
• Backlight: LED (usually white or yellow-green)
• Operating Temperature: -20°C to 70°C
• Dimensions: 80mm x 36mm x 12mm (approx.)

The LCD-16X2 module typically has 16 pins. Below is the pinout and description:

1. Power Supply: Connect the VSS pin to ground and the VDD pin to a 5V power source.
2. Contrast Adjustment: Connect the VO pin to the wiper of a 10kΩ potentiometer. Connect one end of the potentiometer to ground and the other to 5V. Adjust the potentiometer to set the display contrast.
3. Control Pins: Connect the RS, RW, and E pins to digital output pins of your microcontroller. For most applications, connect RW to ground (write mode).
4. Data Pins: Use either 4-bit mode (D4-D7) or 8-bit mode (D0-D7) for data communication. In 4-bit mode, leave D0-D3 unconnected.
5. Backlight: Connect the A (LED+) pin to 5V (via a resistor if needed) and the K (LED-) pin to ground.

Below is an example of how to connect and program the LCD-16X2 with an Arduino UNO in 4-bit mode.

• VSS → GND
• VDD → 5V
• VO → Middle pin of a 10kΩ potentiometer
• RS → Arduino pin 12
• RW → GND
• E → Arduino pin 11
• D4 → Arduino pin 5
• D5 → Arduino pin 4
• D6 → Arduino pin 3
• D7 → Arduino pin 2
• A (LED+) → 5V (via 220Ω resistor)
• K (LED-) → GND

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// (RS, E, D4, D5, D6, D7)
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(16, 2);

  // Print a message to the LCD
  lcd.print("Hello, World!");
}

void loop() {
  // Move the cursor to the second line
  lcd.setCursor(0, 1);

  // Print a dynamic message
  lcd.print("Count: ");
  lcd.print(millis() / 1000); // Display elapsed time in seconds
}

• Always use a current-limiting resistor (e.g., 220Ω) for the backlight to prevent damage.
• Use a 10kΩ potentiometer to adjust the contrast for optimal visibility.
• Avoid leaving unused data pins floating; tie them to ground if not used.
• Ensure proper grounding between the LCD module and the microcontroller.

1. No Display on the Screen

   • Check the power supply connections (VSS and VDD).
   • Adjust the contrast using the potentiometer connected to VO.
   • Verify that the backlight is connected properly.

2. Random Characters or No Response

   • Ensure the RS, RW, and E pins are correctly connected to the microcontroller.
   • Double-check the data pin connections (D4-D7 in 4-bit mode).
   • Verify that the code matches the pin configuration in your circuit.

3. Backlight Not Working

   • Confirm that the A (LED+) and K (LED-) pins are connected correctly.
   • Use a current-limiting resistor to avoid overloading the backlight.

4. Characters Not Fully Visible

   • Adjust the contrast using the potentiometer.
   • Ensure the operating voltage is within the specified range (4.7V to 5.3V).

Q: Can I use the LCD-16X2 with a 3.3V microcontroller?
A: Yes, but you will need a level shifter or resistor divider for the control and data pins. Additionally, the backlight may not function optimally at 3.3V.

Q: How do I display custom characters?
A: The HD44780 controller allows you to define up to 8 custom characters. Use the createChar() function in the LiquidCrystal library to define and display them.

Q: Can I use the LCD-16X2 in 8-bit mode?
A: Yes, connect all 8 data pins (D0-D7) to the microcontroller. However, 4-bit mode is more common as it uses fewer pins.

Q: Is the backlight mandatory?
A: No, the LCD can function without the backlight, but visibility may be reduced in low-light conditions.
