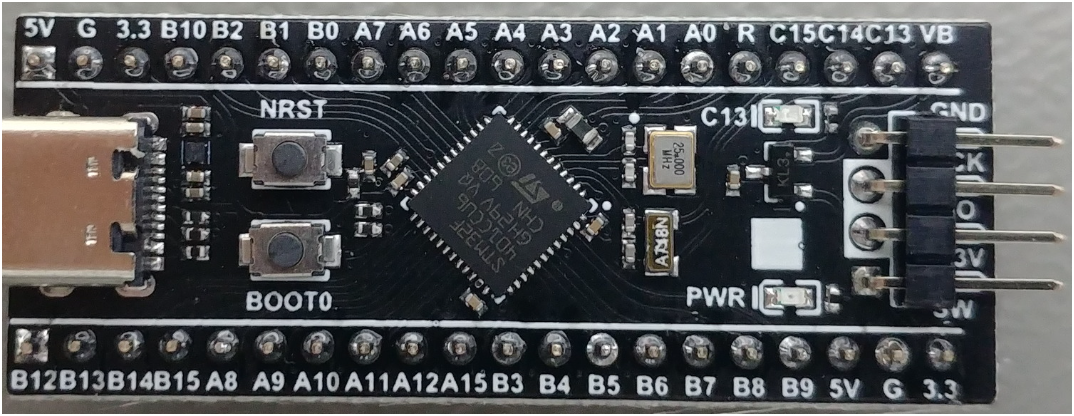

How to Use STM32F401ccu6: Examples, Pinouts, and Specs

The STM32F401CCU6 is a high-performance microcontroller from STMicroelectronics, part of the STM32F4 series. It is based on the ARM Cortex-M4 core, which includes a floating-point unit (FPU) for efficient mathematical computations. This microcontroller features 512 KB of Flash memory, 128 KB of SRAM, and a wide range of peripherals, making it suitable for advanced embedded applications.

• Industrial automation and control systems
• Consumer electronics and IoT devices
• Robotics and motor control
• Wearable devices and medical equipment
• Data acquisition and signal processing

The STM32F401CCU6 offers a robust set of features and specifications that make it ideal for demanding applications. Below are the key technical details:

The STM32F401CCU6 comes in a 48-pin LQFP package. Below is a summary of the pin configuration:

The STM32F401CCU6 is a versatile microcontroller that can be used in a variety of applications. Below are the steps and considerations for using it in a circuit:

1. Power Supply: Connect the VDD pin to a 3.3 V power source and the VSS pin to ground.
2. Reset Pin: Connect a pull-up resistor (typically 10 kΩ) to the NRST pin to ensure proper reset functionality.
3. Clock Source: Use an external 8 MHz crystal oscillator for precise timing, or configure the internal high-speed oscillator (HSI).
4. GPIO Configuration: Configure the GPIO pins as input, output, or alternate function using the STM32CubeMX tool or direct register programming.

The STM32F401CCU6 can be programmed using the Arduino IDE with the STM32 core installed. Below is an example code to blink an LED connected to pin PA5:

// Include the STM32 HAL library
#include <Arduino.h>

// Define the LED pin
#define LED_PIN PA5

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(500); // Wait for 500 ms

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(500); // Wait for 500 ms
}

• Voltage Levels: Ensure all connected peripherals operate within the 3.3 V logic level.
• Decoupling Capacitors: Place 0.1 µF decoupling capacitors near the VDD pins to reduce noise.
• Boot Mode: Configure the BOOT0 and BOOT1 pins to select the desired boot mode (e.g., Flash memory, system memory, or SRAM).
• Programming Interface: Use SWD (Serial Wire Debug) or USART for programming and debugging.

1. Microcontroller Not Responding

   • Cause: Incorrect power supply or missing decoupling capacitors.
   • Solution: Verify the power supply voltage and ensure proper decoupling capacitors are in place.

2. Unable to Program the Microcontroller

   • Cause: Incorrect BOOT pin configuration or faulty programming interface.
   • Solution: Check the BOOT0 and BOOT1 pin settings and ensure the SWD or USART interface is properly connected.

3. GPIO Pins Not Functioning as Expected

   • Cause: Incorrect pin configuration or alternate function settings.
   • Solution: Double-check the pin configuration in the firmware and ensure the correct alternate function is selected.

Q: Can the STM32F401CCU6 operate at 5 V?
A: No, the STM32F401CCU6 operates at a voltage range of 1.7 V to 3.6 V. Exceeding this range may damage the microcontroller.

Q: How do I enable the floating-point unit (FPU)?
A: The FPU is enabled by default in most development environments. Ensure your compiler settings support hardware floating-point operations.

Q: What is the maximum clock speed of the STM32F401CCU6?
A: The maximum clock speed is 84 MHz when using the internal PLL.

Q: Can I use the STM32F401CCU6 with Arduino libraries?
A: Yes, the STM32F401CCU6 is supported by the STM32 Arduino core, allowing you to use Arduino libraries and functions.

This concludes the documentation for the STM32F401CCU6. For more detailed information, refer to the official datasheet and reference manual provided by STMicroelectronics.
