Introduction

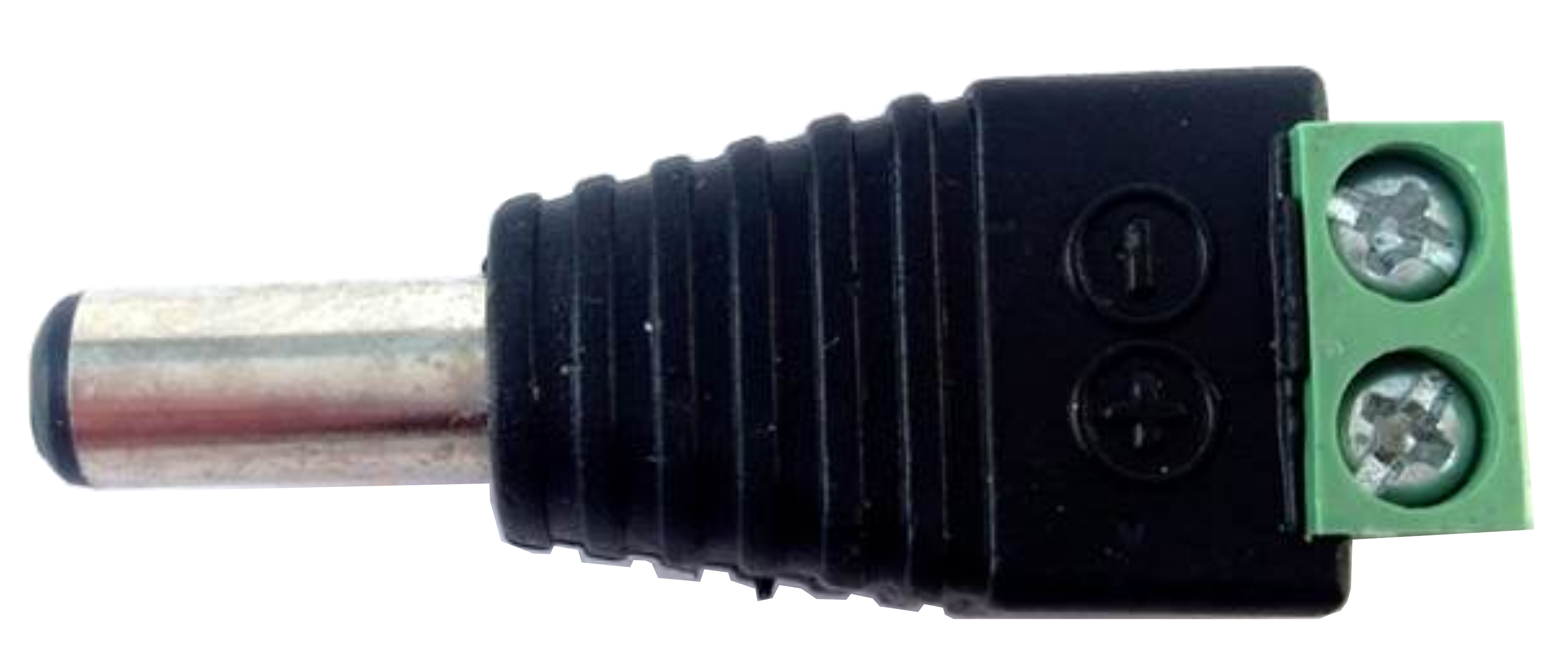

The Universal Barrel Jack Male is a cylindrical connector commonly used for power supply connections in electronic devices. It features a central pin for positive voltage and an outer sleeve for ground, making it a reliable and straightforward solution for delivering DC power. This component is widely used in prototyping, DIY electronics, and consumer devices due to its simplicity and compatibility with a variety of power sources.

Explore Projects Built with Universal Barrel Jack Male

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
Image of Load Cell Circuit: A project utilizing Universal Barrel Jack Male in a practical application
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Multi-Voltage Supply with Barrel Jack Connectors
Image of Battery Setup: A project utilizing Universal Barrel Jack Male in a practical application
This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS System with Waveshare UPS 3S and Solar Charger
Image of Copy of s: A project utilizing Universal Barrel Jack Male in a practical application
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Reverse Vending Machine with GSM and Wi-Fi Connectivity
Image of RVM WIFI: A project utilizing Universal Barrel Jack Male in a practical application
This circuit is a reverse vending machine for plastic bottles and cans, utilizing an Arduino Mega 2560 to interface with various sensors and actuators. It includes ultrasonic sensors for distance measurement, a load cell for weight measurement, micro servos for actuation, and a GSM module for communication. The system also features an LCD display for user interaction and uses inductive and photoelectric sensors for object detection.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Universal Barrel Jack Male

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Load Cell Circuit: A project utilizing Universal Barrel Jack Male in a practical application
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Battery Setup: A project utilizing Universal Barrel Jack Male in a practical application
Battery-Powered Multi-Voltage Supply with Barrel Jack Connectors
This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of s: A project utilizing Universal Barrel Jack Male in a practical application
Battery-Powered UPS System with Waveshare UPS 3S and Solar Charger
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RVM WIFI: A project utilizing Universal Barrel Jack Male in a practical application
Arduino Mega 2560-Based Reverse Vending Machine with GSM and Wi-Fi Connectivity
This circuit is a reverse vending machine for plastic bottles and cans, utilizing an Arduino Mega 2560 to interface with various sensors and actuators. It includes ultrasonic sensors for distance measurement, a load cell for weight measurement, micro servos for actuation, and a GSM module for communication. The system also features an LCD display for user interaction and uses inductive and photoelectric sensors for object detection.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering Arduino boards, Raspberry Pi, and other microcontrollers
  • Connecting DC power adapters to electronic circuits
  • Prototyping and breadboard projects
  • Consumer electronics such as routers, modems, and small appliances

Technical Specifications

The following table outlines the key technical details of the Universal Barrel Jack Male:

Parameter Specification
Manufacturer Generic
Part ID Universal Barrel Jack Male
Outer Diameter 5.5 mm
Inner Diameter (Pin) 2.1 mm
Voltage Rating Up to 24V DC
Current Rating Up to 5A
Connector Type Male (plug)
Material Plastic housing with metal contacts
Operating Temperature -20°C to 70°C

Pin Configuration and Descriptions

The Universal Barrel Jack Male has two main contact points:

Pin Description
Central Pin Positive voltage (V+)
Outer Sleeve Ground (GND)

Usage Instructions

How to Use the Component in a Circuit

  1. Identify the Polarity: Ensure that the central pin is connected to the positive voltage (V+) and the outer sleeve is connected to ground (GND). Reversing the polarity may damage your circuit.
  2. Connect to a Power Source: Insert the Universal Barrel Jack Male into a compatible female barrel jack or power socket. Ensure a snug fit for a reliable connection.
  3. Wire the Leads: Solder wires to the central pin and outer sleeve terminals, or use a pre-wired version for convenience.
  4. Verify Voltage and Current: Confirm that the power source matches the voltage and current requirements of your circuit.

Important Considerations and Best Practices

  • Check Compatibility: Ensure the barrel jack dimensions (5.5 mm outer diameter, 2.1 mm inner diameter) match the female connector.
  • Avoid Overloading: Do not exceed the voltage and current ratings (24V DC, 5A) to prevent overheating or damage.
  • Secure Connections: Use heat shrink tubing or electrical tape to insulate soldered connections and prevent short circuits.
  • Polarity Protection: Consider adding a diode or polarity protection circuit to safeguard your device from accidental reverse polarity.

Example: Connecting to an Arduino UNO

The Universal Barrel Jack Male is commonly used to power an Arduino UNO. Below is an example of how to connect it:

  1. Use a 9V DC power adapter with a compatible female barrel jack.
  2. Plug the male barrel jack into the Arduino UNO's power input port.
  3. Ensure the adapter provides the correct polarity (center positive).

Arduino Code Example

If you're powering sensors or modules through the Arduino UNO, you can use the following code to test the setup:

// Simple LED Blink Test
// Ensure the Arduino is powered via the Universal Barrel Jack Male

const int ledPin = 13; // Built-in LED pin on most Arduino boards

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Loose Connection: The barrel jack may not fit snugly into the female connector.
    • Solution: Ensure the dimensions of the male and female connectors match (5.5 mm outer, 2.1 mm inner).
  2. No Power to the Circuit: The device does not turn on after connecting the barrel jack.
    • Solution: Verify the polarity of the connection and ensure the power source is functioning.
  3. Overheating: The barrel jack becomes hot during operation.
    • Solution: Check that the current draw does not exceed 5A and that the voltage is within the rated range.
  4. Intermittent Power: The circuit powers on and off sporadically.
    • Solution: Inspect the solder joints or wire connections for stability and re-solder if necessary.

FAQs

Q: Can I use this barrel jack for AC power?
A: No, the Universal Barrel Jack Male is designed for DC power only. Using it with AC power may damage the component or connected devices.

Q: Is this barrel jack compatible with all Arduino boards?
A: Most Arduino boards, including the UNO, use a 5.5 mm outer diameter and 2.1 mm inner diameter barrel jack. Verify the specifications of your specific board to ensure compatibility.

Q: How do I prevent reverse polarity damage?
A: Use a diode or a polarity protection circuit in your design to safeguard against accidental reverse polarity connections.

Q: Can I use this barrel jack for high-power applications?
A: The barrel jack is rated for up to 24V DC and 5A. For higher power applications, consider using connectors with higher ratings.
