How to Use FC-51 IR Obstacle Sensor (Detection Indicator On): Examples, Pinouts, and Specs

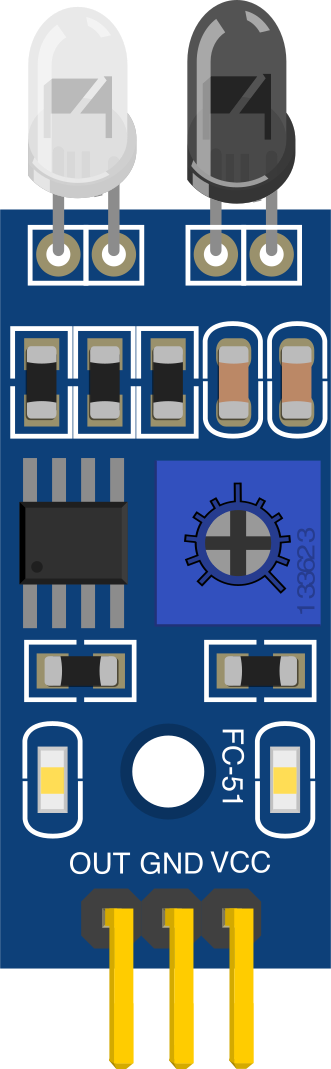

The FC-51 IR Obstacle Sensor is a compact and efficient device designed to detect obstacles using infrared (IR) light. It works by emitting IR signals and measuring the reflected light to determine the presence of an object. When an obstacle is detected, the onboard detection indicator (an LED) lights up, providing a clear visual signal. This sensor is widely used in robotics, automation systems, and proximity detection applications due to its simplicity and reliability.

• Obstacle detection in robotics
• Line-following robots
• Automated doors and gates
• Object counters
• Proximity-based triggering systems

The following table outlines the key technical details of the FC-51 IR Obstacle Sensor:

The FC-51 IR Obstacle Sensor has a 3-pin interface. The pin configuration is as follows:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
2. Connect the Output: Connect the OUT pin to a digital input pin of your microcontroller (e.g., Arduino UNO).
3. Adjust the Sensitivity: Use the onboard potentiometer to adjust the detection range. Turning the potentiometer clockwise increases the sensitivity, while turning it counterclockwise decreases it.
4. Monitor the Output: When an obstacle is detected within the sensor's range, the OUT pin will output a LOW signal, and the onboard LED will light up.

• Ambient Light: Avoid using the sensor in environments with strong ambient IR light (e.g., direct sunlight), as it may interfere with detection accuracy.
• Mounting: Ensure the sensor is mounted securely and aligned properly for optimal detection.
• Power Supply: Use a stable power supply to avoid erratic behavior.
• Distance Adjustment: Fine-tune the potentiometer to match the desired detection range for your application.

Below is an example of how to use the FC-51 IR Obstacle Sensor with an Arduino UNO:

// FC-51 IR Obstacle Sensor Example Code
// Connect the OUT pin of the sensor to Arduino digital pin 2

const int sensorPin = 2;  // Sensor output pin connected to digital pin 2
const int ledPin = 13;    // Onboard LED pin for visual feedback

void setup() {
  pinMode(sensorPin, INPUT);  // Set sensor pin as input
  pinMode(ledPin, OUTPUT);    // Set LED pin as output
  Serial.begin(9600);         // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(sensorPin);  // Read the sensor output

  if (sensorValue == LOW) {
    // Obstacle detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Obstacle detected!");
  } else {
    // No obstacle
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No obstacle.");
  }

  delay(100);  // Small delay for stability
}

1. The sensor is not detecting obstacles:

   • Ensure the sensor is powered correctly (check VCC and GND connections).
   • Adjust the potentiometer to increase the sensitivity.
   • Verify that the obstacle is within the detection range (2cm to 30cm).

2. False detections or erratic behavior:

   • Check for strong ambient IR light sources and reduce their influence.
   • Ensure a stable power supply to the sensor.
   • Verify that the sensor is not obstructed by dirt or debris.

3. The onboard LED does not light up:

   • Confirm that the sensor is receiving power.
   • Check the obstacle's position and ensure it is within the detection range.
   • Inspect the potentiometer for proper adjustment.

Q: Can the FC-51 IR Obstacle Sensor detect transparent objects?
A: The sensor may struggle to detect transparent or highly reflective objects due to insufficient IR reflection.

Q: How do I increase the detection range?
A: Use the onboard potentiometer to adjust the sensitivity. Turn it clockwise to increase the range.

Q: Can I use the sensor with a 3.3V microcontroller?
A: Yes, the sensor operates within a voltage range of 3.3V to 5V, making it compatible with 3.3V systems.

Q: What is the maximum detection angle of the sensor?
A: The sensor has a detection angle of ≤ 35°, so ensure obstacles are within this range for accurate detection.
